480H

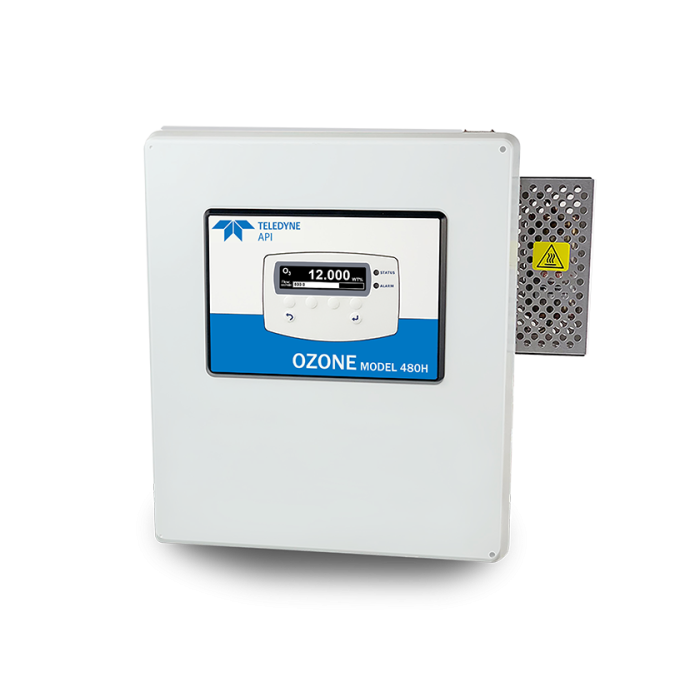

The Model 480H is a state-of-the-art high concentration ozone monitor. The 480H provides accurate and stable readings over long time periods and was designed with the user in mind. The modular design allows for easier field serviceability. The Model 480H is housed in a splash-proof NEMA 4X wall mount enclosure.
- SKU
- 480H
Related Products
Description / 480H
The sensor module contained in the Model 480H uses detectors with a very narrow band of spectral sensitivity, eliminating the need for UV band pass filters which are subject to deterioration by UV or humidity. Two detectors are used: one for the ozone measurement, and the other to compensate for changes in UV source intensity. This unique design enables the sensor to operate for extended periods without calibration or maintenance.
The mercury-free UV LED source in the detection cell makes this process ozone monitor the first of its kind.
Built-in diagnostics provide warning signals range. Test values can be viewed while the Model 480H is operating. These displays, warnings, and self-diagnostics, along with the modular design, allow maximum uptime. In addition, any function that can be set or monitored from the front panel can be remotely set or viewed.
The graphical display and user-friendly interface allow for quick checks of measurements and easy adjustment of settings. Improved communication interfaces allow for greater productivity.
Features:
- UV Absorption Method
- Intuitive graphical user interface
- Mercury-free UV LED source
- Ranges 0-5 to 0-25% w/w
- Built-in diagnostics/error logs/warning alarms
- Modular internal design
- Minimal zero drift
- Programmable auto-zero function included
- Programmable concentration alarms
- Temperature and pressure compensation (standard)
- Ethernet standard, WiFi (coming soon)
Specifications:
| Measurement PrincipleUV Absorption (Beer Lambert Law) | UV Absorption (Beer Lambert Law) |
| Ranges | 0-5% w/w to 0-25% w/w 0-100 g/Nm3 to 0-400 g/Nm3 |
| Measurement Units | % w/w, g/Nm3 |
| Accuracy | ± 1% of full scale |
| Precision/Repeatability | ± 0.5% of full scale |
| Display Resolution | 0.01% w/w, 0.1 g/Nm3 |
| Response Time | < 30 seconds to 95% |
| Compensation | Pressure, Temperature (NTP = 273.15K, 760mmHg) |
| Gas Inlet Pressure Range | 3.0 - 30.0 psig |
| Gas Flow Rate | 0.2 - 2.0 LPM |
| Temperature Range | 5 - 45°C |
| Dimensions (H x W x D) | NEMA 4X - 17.35” x 15.96” x 6.80” (440.7 mm x 405.4 mm x 172.7 mm) |
| Weight | NEMA 4X - 17.6 lbs (8kg) |
| Power | 110-240V, 50/60Hz, 74W |
| Analog Output | 0-5V or 4-20mA isolated output |
| Status Outputs | Optically isolated Digital Outputs Sensor OK, Invalid Reading, Check Lamp, Pneumatic Error
24VDC, 30mA per output
|
| High Current Relay Outputs | SPDT Form C Dry contact, 250VAC/5A (System OK, HI Alarm, HI-HI Alarm) |
| Communication Interface | RS-232, RS-485 Ethernet WiFi (coming soon) |
| Degree of Protection (NEMA) | IP65 (NEMA 4X) |
| Approvals | CE |
| Warranty | 1 year |
Downloads:
More Information
| Manufacturer | Oxidation Technologies |
|---|---|
| 4-20 mA Output | Yes |
| Relays | 1 Relay |
| Maximum Range | 0-5% , 0-100 g/Nm3 |
| Minimum Range | 0-25% , 0-400 g/Nm3 |
| Accuracy | ± 1% of full scale |
| Min, Max, Avg | No |
| Voltage Output | 0-5 V |
| Power Requirements | 110-240V, 50/60Hz, 74W |
| Datalogging | No |
| Rechargeable | No |
| Warranty | 1 Year |
| Audible Alarm | Yes |
| Calibration | Annually |
| Range | 0-100 g/Nm3 to 0-400 g/Nm3 |
| Unit Features | - Intuitive graphical user interface - Mercury-free UV LED source - Built-in diagnostics/error logs/warning alarms - Modular internal design - Minimal zero drift - Programmable auto-zero function included - Programmable concentration alarms - Temperature and pressure compensation (standard) - Ethernet standard, WiFi (coming soon) |
| Sensor Range | 0-100 g/Nm3 to 0-400 g/Nm3 |
| Resolution | 0.01 % |
| Integrated Relays | Yes |
| Sensor Range | 0-100 g/Nm3 to 0-400 g/Nm3 |
