Aeroqual Carbon Dioxide (CO2) Sensor Head 0-2000 ppm (CD)

Carbon Dioxide (CO2) sensor head. Non-dispersive Infra-red (NDIR) head will measure CO2 from 0-2000 ppm with a 1 ppm resolution providing an accuracy of <± 5% of reading.

Carbon Dioxide Information

2 In Stock
SKU
AQ CD
  $790.00

Description / Aeroqual Carbon Dioxide (CO2) Sensor Head 0-2000 ppm (CD)

Carbon Dioxide (CO2) sensor head whose Non-dispersive Infra-red (NDIR) sensor will measure CO2 from 0-2000 ppm with a 1 ppm resolution providing an accuracy of <± 5% of reading.

This head uses an active sensor technology with an internal fan to pull air across the NDIR sensor at a specific flow rate for accurate gas detection. This fan will pull a fresh gas stream across the NDIR sensor every 120 seconds for accurate CO2 detection.

This sensor head will be a direct fit onto any Series-200, Series-300, or Series-500 Aeroqual ozone monitor.  This head can be purchased as an addition to your existing monitor, or with a new base unit.  To purchase with a base unit see our Aeroqual ozone monitor page.  If you currently have an Aeroqual ozone monitor this sensor will be a direct fit for your current monitor.  The Series-200, Series-300, or Series-500 will automatically detect this as a 0-2000 ppm NDIR Carbon Dioxide head and react accordingly.





Compare the Series 200, 300, 500 monitors:

Compare the Aeroqual handheld devices

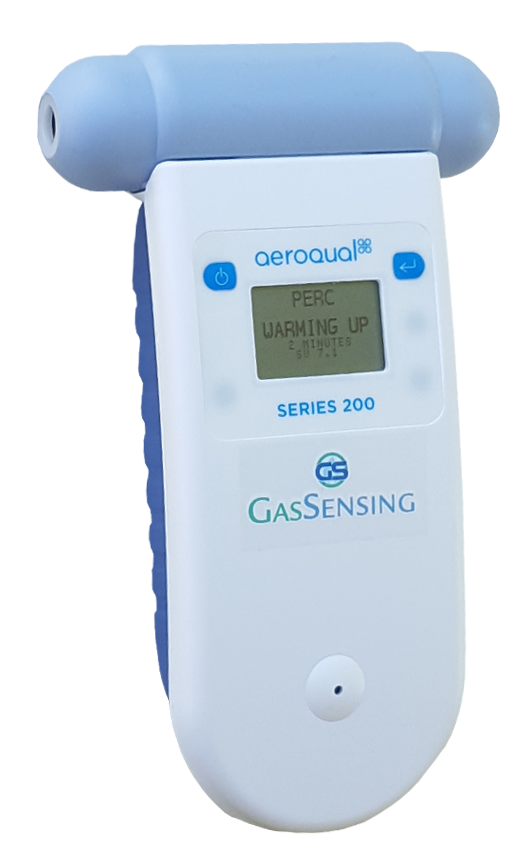

Series-200

Aeroqual Series-200

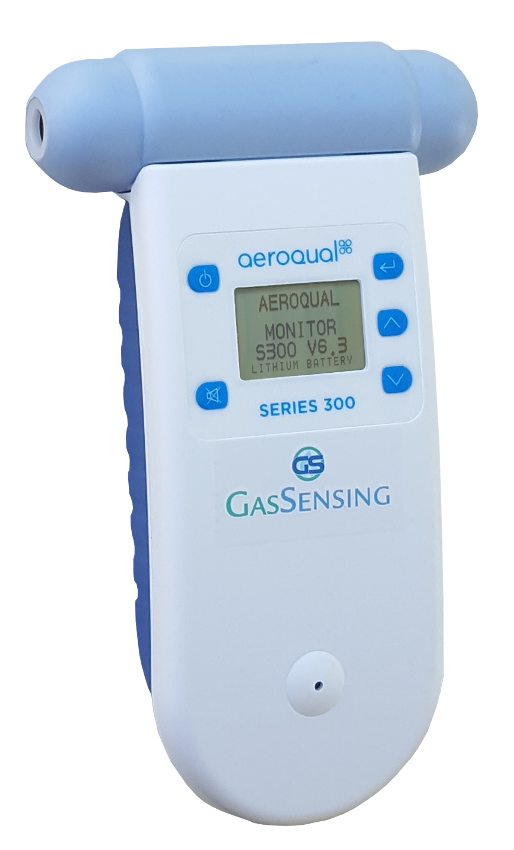

Series-300

Aeroqual Series-300

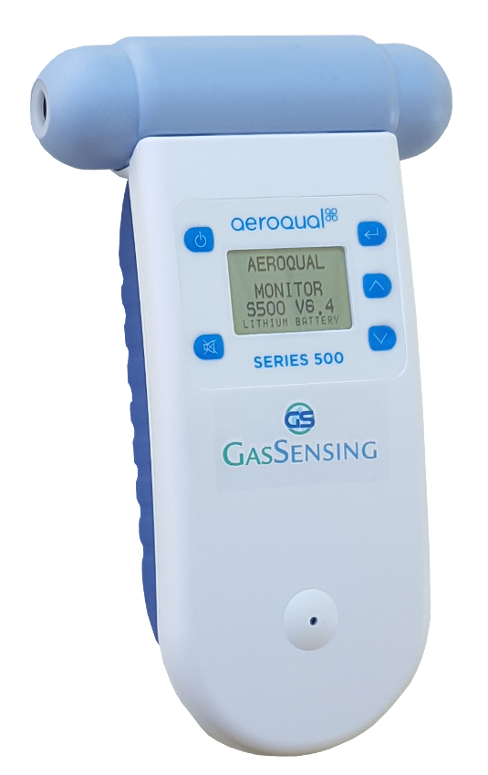

Series-500

Aeroqual S-500

Interchangeable sensor head Yes Yes Yes
Digital LCD Display Yes Yes Yes
Min, Max, Average readings on screen Yes Yes Yes
Field Replaceable Battery Yes Yes Yes
Remote Sensor Capability Yes Yes Yes
Temp and HR Sensor optional Yes Yes Yes
External Control Outputs No Yes Yes
Audible Alarm No Yes Yes
High and Low Alarms No Yes Yes
0-5 VDC Analog output No Yes Yes
Zero Calibration capability Yes Yes Yes
Span Calibration capability No Yes Yes
Internal Data Logging Capability No No Yes

PC connection cables and capability

No No

Yes



 View a brochure with specifications on the Series-200, 300, and 500.





Detailed Sensor Specifications for Aeroqual ambient sensors

Click on image to expand

Sensor Type:

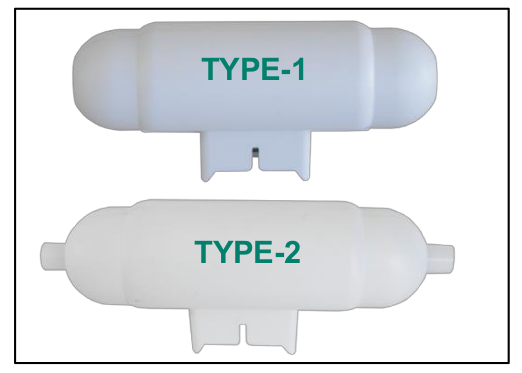

There are two types of Aeroqual sensors, type 1 and type 2.
The type 1 is used with the S-200, S-300, S-500, and S-900 monitors.
The type 2 is calibrated specifically with fittings on the end allowing it to be used with the ENC enclosure and in the S930

Aeroqual type-1 and type-2 sensors types



Full list of technical information and specifications for all Aeroqual sensors

Carbon Dioxide Information

More Information

Manufacturer Aeroqual
Quickbooks Stock Level 2.000000
Quickbooks Stock Date Expected 2024-11-08 00:00:00
Gas Carbon Dioxide (CO2)
Sensor Type NDIR (Non-dispersive Infra-red)
Range 0-2000 ppm
Maximum Exposure 2000 ppm
Monitor sensor fits S-200 / S-300 / S-500, Series-900
Minimum Detection Limit 2 ppm
Accuracy < +/- 5% of reading
Resolution 1 ppm
Response Time <60 s
Sampling Method Fan
Operational Temperature Range 0 to 40 C
Operational RH Range 10 to 90%
Warranty 6 Month
