Aeroqual Formaldehyde (CH2O) Sensor Head 0-10 ppm (EF)

Aeroqual Formaldehyde (CH2O) sensor head. Its Gas Sensitive Electrochemical (GSE) technology will measure Formaldehyde from 0-10 ppm with a 0.01 ppm resolution providing a <±10 ppm accuracy (when exposed to 0.5 - 10 ppm concentration) and<± 0.05 ppm accuracy (when exposed to 0 - 0.5 ppm concentration).

Formaldehyde Information

$690.00
3 In Stock

Formaldehyde (CH2O) sensor head. Gas Sensitive Electrochemical (GSE) head will measure Formaldehyde from 0-10 ppm with a 0.01 ppm resolution providing a <±10 ppm accuracy (when exposed to 0.5 - 10 ppm concentration) and<± 0.05 ppm accuracy (when exposed to 0 - 0.5 ppm concentration).

This sensor uses an active sensor technology with an internal fan to pull air across the GSS sensor at a specific flow rate for accurate gas detection.  This fan will pull a fresh gas stream across the GSS sensor every 60 seconds for accurate Ozone detection in most every environment.

This sensor head will be a direct fit onto any Ranger, Series-300, or Series-500 Aeroqual ozone monitor.  This head can be purchased as an addition to your existing monitor, or with a new base unit.  To purchase with a base unit see our Aeroqual ozone monitor page.  If you currently have an Aeroqual ozone monitor this sensor will be a direct fit for your current monitor.  The Ranger, Series-300, or Series-500 will automatically detect this as a 0-10 ppm Chlorine head and react accordingly.



Additional Information:

White paper  - Evaluation and Calibration of Aeroqual series 500 portable gas sensors for accurate measurement of ambient ozone and nitrogen dioxide







Compare the Series 300 and 500 monitors:

Compare the Aeroqual handheld devices

Series-300

Aeroqual Series-300

Series-500

Aeroqual Series-300

Ranger





Interchangeable sensor head Yes Yes Yes
Digital LCD Display Yes Yes Yes
Min, Max, Average readings on screen Yes Yes Yes
Field Replaceable Battery Yes Yes Yes
Remote Sensor Capability Yes Yes Yes
Temp and HR Sensor optional Yes Yes Yes
External Control Outputs Yes Yes Yes
Audible Alarm Yes Yes Yes
High and Low Alarms Yes Yes Yes
0-5 VDC Analog output Yes Yes Yes
Zero Calibration capability Yes Yes Yes
Span Calibration capability Yes Yes Yes
Internal Data Logging Capability No Yes Yes

PC connection cables and capability

No Yes

Yes

Built in wi-fi connection

No No

Yes

Hot-Swap Service

No No

Yes



 View a brochure with specifications on the Series-300, and 500 and Ranger.

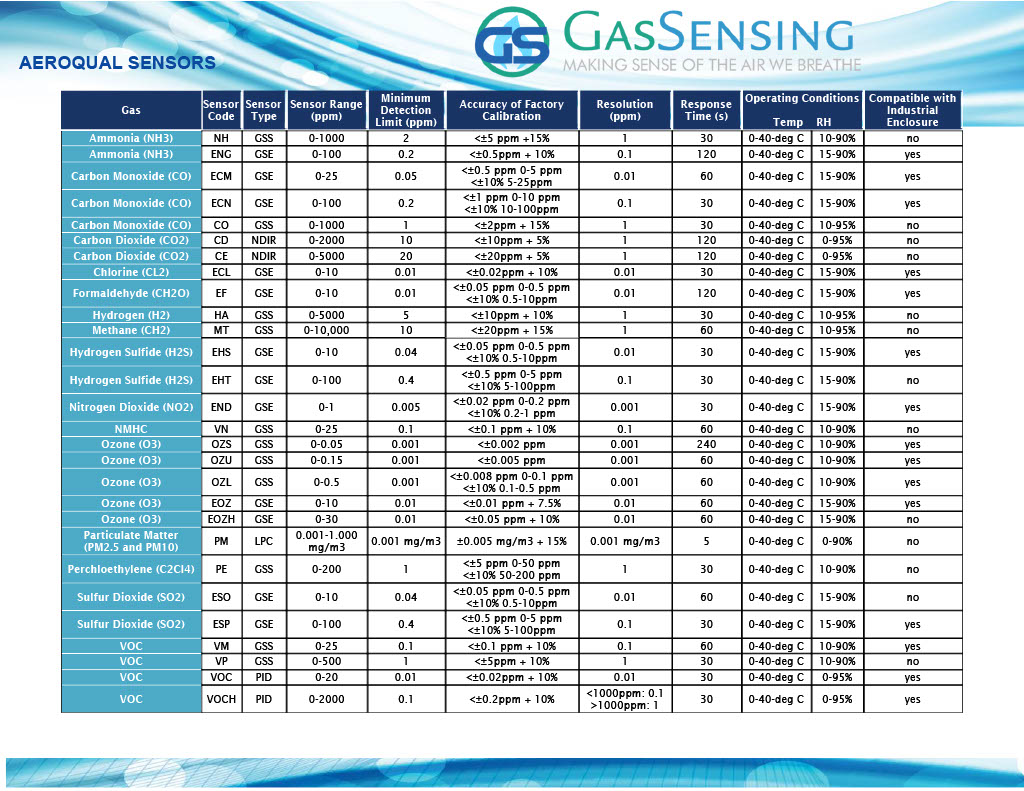

Detailed Sensor Specifications for Aeroqual ambient sensors

Click on image to expand

Sensor Type:

There are two types of Aeroqual sensors, type 1 and type 2.
The type 1 is used with the S-300, S-500, Ranger and S-900 monitors.
The type 2 is calibrated specifically with fittings on the end allowing it to be used with the ENC enclosure and in the S930

Aeroqual type-1 and type-2 sensors types



Full list of technical information and specifications for all Aeroqual sensors

Ozone Information

More Information
Manufacturer Aeroqual
Quickbooks Stock Level 3.000000
Call For Price No
Gas Formaldehyde (CH2O)
Sensor Type GSE (Gas Sensitive Electrochemical)
Range 0-10 ppm
Maximum Exposure 20 ppm
Monitor sensor fits S-200 / S-300 / S-500, Series-900
Minimum Detection Limit 0.01 ppm
Accuracy < +/- 10% (from 0.5 - 10 ppm concentration) or < +/- 0.05 ppm (from 0 - 0.5 ppm concentration)
Resolution 0.01 ppm
Response Time <60 s
Sampling Method Fan
Operational Temperature Range 0 to 40 C
Operational RH Range 10 to 90%
Warranty 6 Month
