ATL-160

Magnum-160 Ozone Generator is an extremely efficient air cooled ozone generator.

160 g/hr ozone from only 30 LPM Oxygen @ 6.6% by weight.

Call For Price

The ATL-160 Ozone Generator is an air-cooled ozone generator designed to produce 160 g/hr ozone from only 30 LPM of oxygen.  This extremely efficient ozone generator is great for water treatment due to the high ozone concentration.

When high ozone concentrations are required for high dissolved ozone levels the ATL-160 is a great option.  No other air-cooled ozone generator on the market can provide as high of ozone concentrations as the ATL-160 Ozone Generator.

Features:

     -Low oxygen requirements for ozone generation, very efficient

     -High-pressure cell produces ozone under pressures up to 100 PSI

     -Variable ozone output with onboard dial, or remote control options

     -Remote control safety shut-off

     -Low operating costs with low power requirements and oxygen requirements

     -Stainless steel enclosure

     -Optional bench mount or rack mount enclosures to best fit your application

Materials of Constructions:

     -Enclosure: Brushed Stainless Steel/Aluminum

     -High Precision Machined Ozone Generator Cell tested at up to 150 PSIG for leaks

     -O3/O2 Gas Tubing: PTFE/304 Stainless Steel/Brass

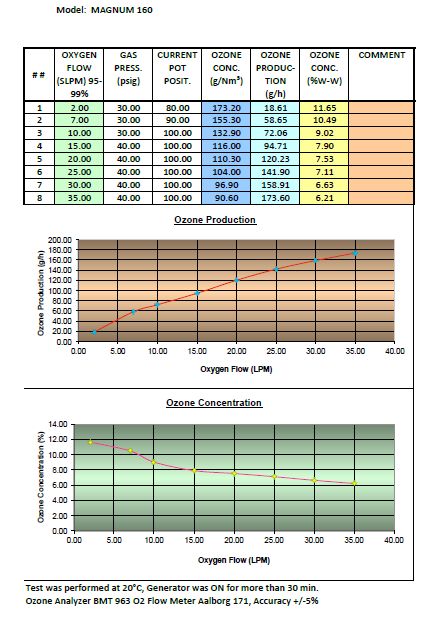

 Ozone Generator Performance Chart:

Magnum 160 Ozone Generator Performance Chart

18.6 g/hr @ 11.6% by weight from 2.0 LPM O2 flow

58.6 g/hr @ 10.49% by weight from 7.0 LPM O2 flow

72.1 g/hr @ 9.02% by weight from 10.0 LPM O2 flow

94.7 g/hr @ 7.9% by weight from 15.0 LPM O2 flow

120 g/hr @ 7.5% by weight from 20.0 LPM O2 flow

142 g/hr @ 7.1% by weight from 25.0 LPM O2 flow

159 g/hr @ 6.6% by weight from 30.0 LPM O2 flow

173 g/hr @ 6.2% by weight from 35.0 LPM O2 flow



Common Applications:

     -Water Treatment

     -Groundwater Remediation

     -Bottled water

     -Aquaculture

     -Cooling Tower

     -Grain Treatment

     -Odor Removal

     -Wastewater Treatment

     -Pharmaceutical

     -Food Processing



Downloads:

ATL Series Brochure

ATL Series Manual

More Information
Call For Price Yes
Feed Gas Oxygen
Nominal Gas Flow Rate 30 LPM oxygen flow to produce 160 g/hr ozone. Higher flows produce more ozone.
Operating Pressure 20 - 50 PSI nominal (higher pressure units available)
Max Pressure 50 PSI standard, up to 100 PSI optional
Manufacturer Absolute Ozone
Cooling Method Air Cooled
Corona Cell Aluminum , Ceramic Plate
Gas Connections 1/4" compression fittings
Dimensions (LxWxH) 7" x 16" x 24"
Operational Temperature Range 35 - 95-deg F
Max O3 % 10% +
Power Requirements 208-230 VAC, 50/50 Hz, 3-phase - 10 amp
Lead Time 2-weeks
Warranty 5 Year
Country of Origin Canada
Description Enclosure Dimensions: 24-inch height x 16-inch width x 7-inch depth Generator Weight: 51 lbs. Shipping Weight: 56 lbs Shipping Dimensions: 26-inch x 20-inch x 10-inch
Ozone Output

160 g/hr ozone from 35 LPM oxygen @ 6.2% by weight

Unit Features

- Great for odor removal, grain treatment, aquaculture and more

- Ozone output with onboard dial

- High pressure cell produces ozone under pressures up to 100 PSI

- Oxidation Technologies can be repair and uprade these in-house
