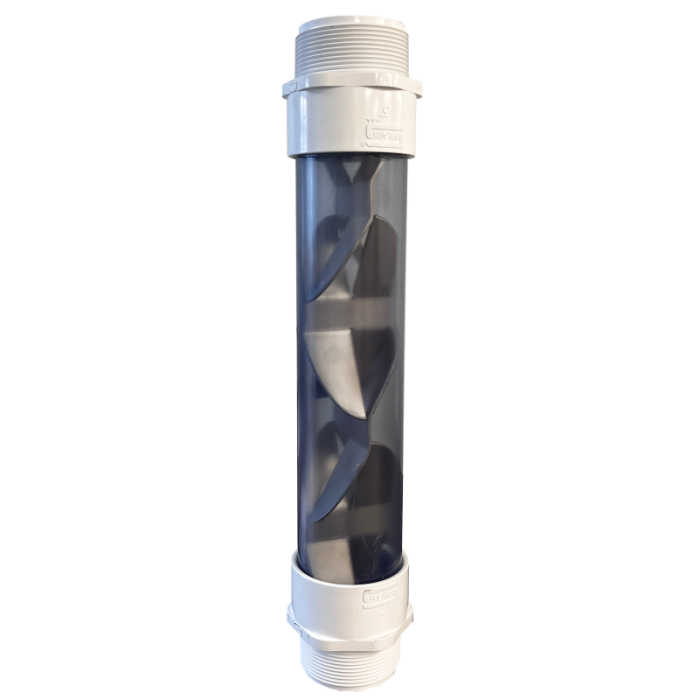

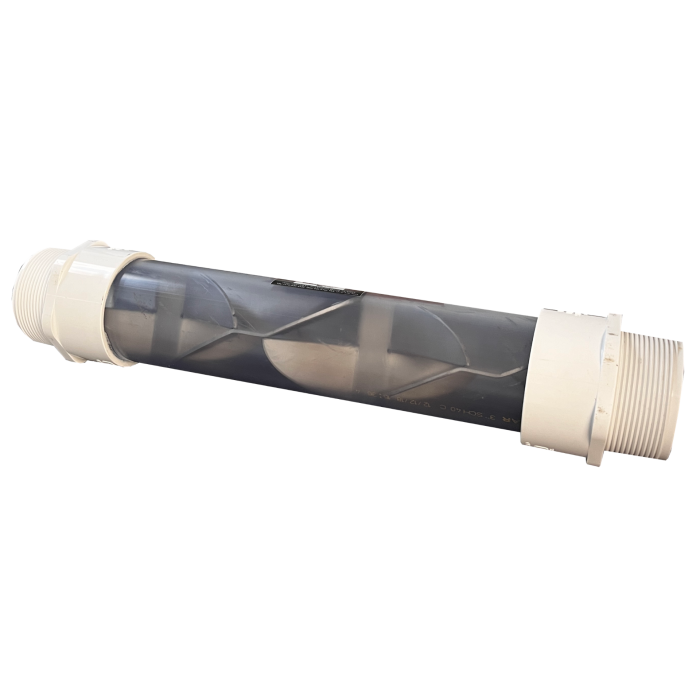

CPS-010 Static Mixer

Simple, rugged, economical mixing element.



Part Number: CPS-010

1 week lead time from the manufacturer
SKU
CPS-010
  $185.00

Related Products

Description / CPS-010 Static Mixer

The Komax CPS Static Mixers are adaptable to all standard materials, surface coatings, and fittings and pipe sizes. There are no moving parts which eliminates treatment tanks, motors, shafts, impellers, and manpower requirements. These static mixers are low-cost, easily installed, have a long service life, and there's also zero maintenance or down time. Another benefit is the energy savings because gravity alone is oftenly sufficient.

Uniform temperature and velocity profiles - from centerline to sidewall - produce continuous, predictable blending, dispersing, heat exchanging and reaction time.



Specifications:

Model Size NPS Length Flowrate Press Drop
CPS-010 1" Diameter 8" 2-20 0.1-8



Downloadable Content:

     -Manual

More Information

Manufacturer Oxidation Technologies
Typical Water Flow 2-20 GPM
Thread Size 1" NPS
Dimensions (LxWxH) 1" Diameter, 8" Length
