Kynar Check Valves
Check valve with kynar body with stainless steel ball and viton seals

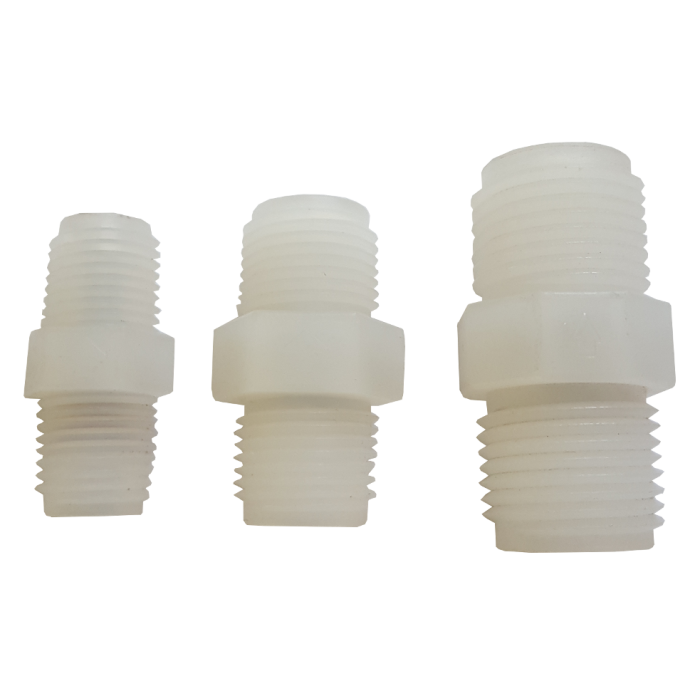

These check valves are made from ozone resistant Kynar material and have a stainless steel ball and Viton seals.
| Part Number | Connection Size | Material |

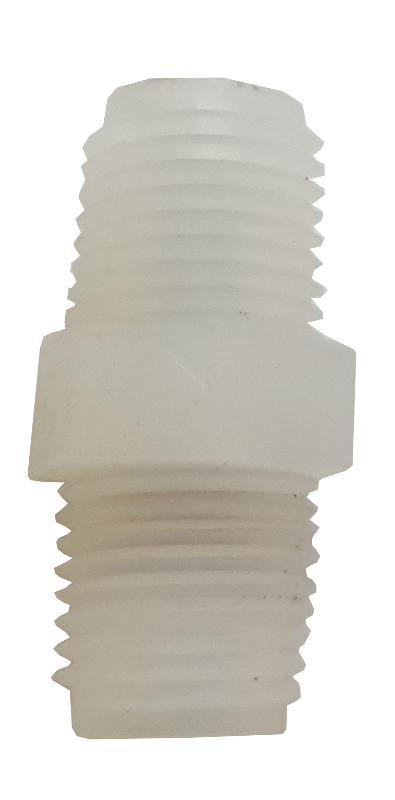

| CV-4K | 1/4" Male NPT | Kynar & Stainless Steel |

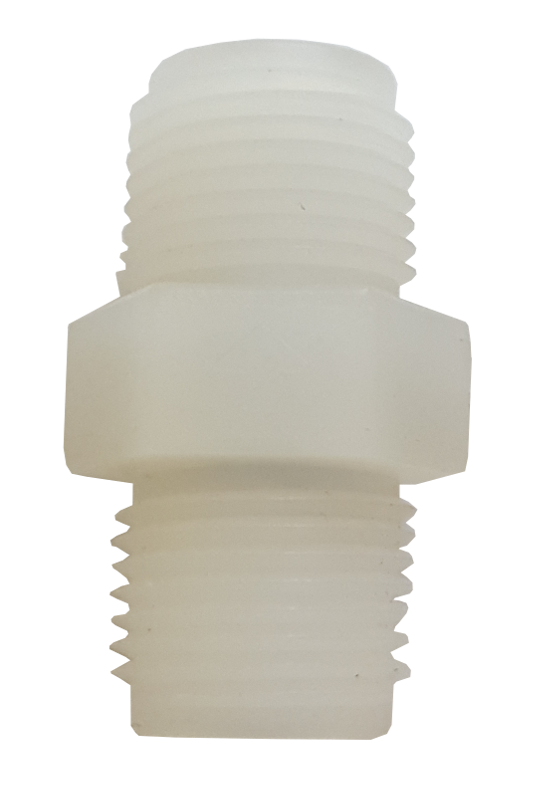

| CV-6K | 3/8" Male NPT | Kynar & Stainless Steel |

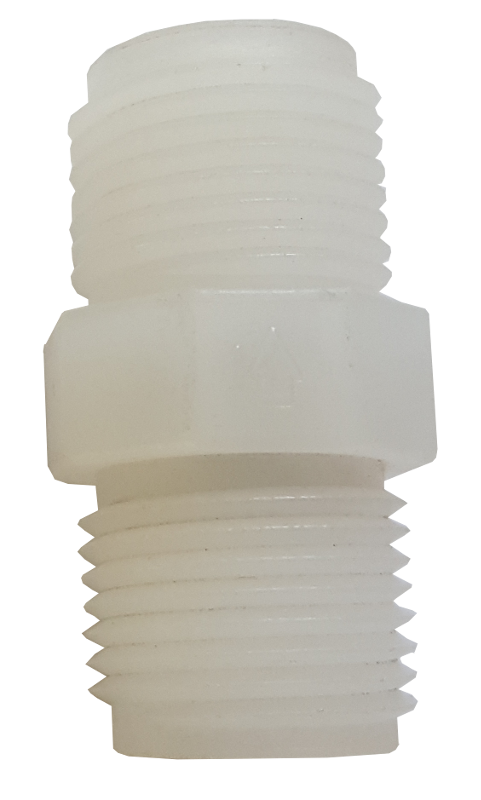

| CV-8K | 1/2" Male NPT | Kynar & Stainless Steel |
Specifications:
- Viton "O" ring
- Stainless Ball & Spring (Grade 316)
- Maximum Operating Temp 180F @ 220 PSI
- Cracking Pressure 1-2.5 PSI & positive seal
- Zero Leakage
- Male Pipe NPT Style
Check valves are a great way to protect your investment and product your ozone generator.
Kynar check valves and other ozone accessories can be installed using Kynar fittings which are specially designed to create a tight seal around FEP tubing. These fittings come in a variety of sizes and specifications and are resistant to abrasion and corrosion.
| Manufacturer | Misc |
|---|---|
| Call For Price | No |
| Max Pressure | 3 PSI |
| Gas Connections | varries by type |
| Warranty | 1 Year |
