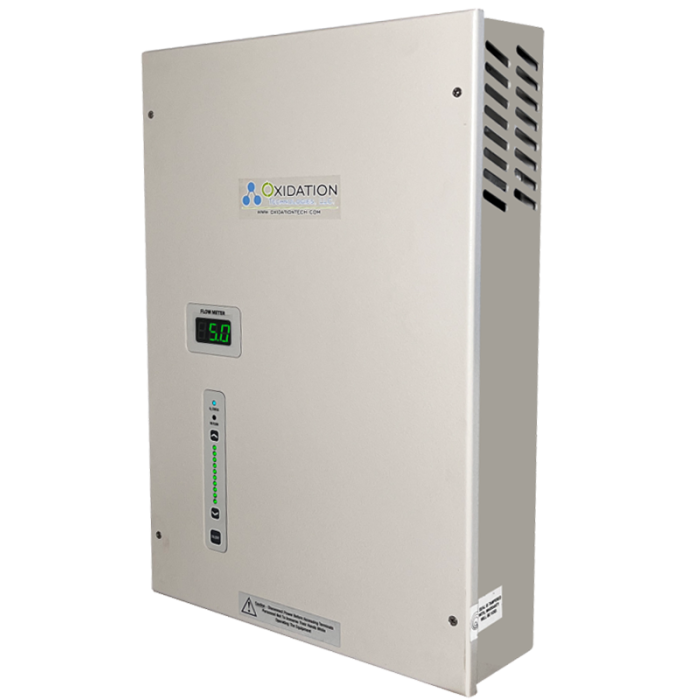

When performance, flexibility, and reliability matter most, the VMUS-10 Ozone Generator stands out as a leading solution. Whether your project demands ozone from oxygen or dry air, and whether your installation operates under pressure or vacuum, the VMUS-10 is engineered to deliver consistent, high-output ozone generation in a compact, wall-mountable package.
Engineered for Efficiency and Simplicity
The VMUS-10 uses corona discharge technology to produce up to 20 grams per hour of ozone from just 7 liters per minute (LPM) of oxygen, or 10 g/hr from 15 LPM of dry air. Its compact and air-cooled design eliminates the need for water cooling, making it ideal for virtually any installation environment.
Mounting is simple with built-in rear slots for wall installation. For rack-mount configurations, the RMU16-K3 Ozone Generator offers the same powerful internals in a rack-mount enclosure.
Key Features at a Glance
- Produces 20 g/hr from oxygen and 10 g/hr from dry air
- Wall mountable with standard flow meter and adjustable output
- Operates under pressure or vacuum
- Detachable power cord for flexible installations
- Circuit protection prevents damage from moisture or dust
- Powder-coated aluminum cabinet for corrosion resistance
- Rebuildable corona cell reduces long-term maintenance costs
Advanced Circuit Protection for Maximum Uptime
The VMUS-10 is equipped with a smart power inverter board designed to protect the ozone generator from damage due to contamination or moisture ingress. If the corona cell detects adverse conditions, ozone production is automatically halted and retried every 6 seconds until normal operation resumes. This built-in intelligence helps avoid costly downtime and repairs.
Built to Be Serviced
One of the VMUS-10’s strongest advantages is its rebuildable corona cell. Made from stainless steel and quartz, the cell can be disassembled, cleaned, and reassembled easily—ensuring long life even in harsh operating conditions. The unit uses Kynar end caps with molded fittings and Viton O-rings to reduce potential leak points. All parts are available and in stock, ensuring long-term serviceability.
Performance Specifications
Ozone Output from Oxygen Feed:
| Oxygen Flow (LPM) | Ozone Output (g/hr) | Ozone Concentration (%) |
|---|---|---|
| 1 | 5.55 | 6.95 |
| 2 | 10.18 | 6.37 |
| 4 | 16.59 | 5.19 |
| 6 | 19.19 | 4.00 |
| 8 | 21.00 | 3.29 |
| 10 | 22.15 | 2.77 |
| 12.5 | 24.74 | 2.48 |
| 15 | 26.80 | 2.24 |
Recommended Oxygen Source:
The OG-15 Oxygen Concentrator is ideal for pairing with the VMUS-10, delivering 7.5 LPM of high-quality oxygen—perfect for max output.
Ozone Output from Dry Air Feed:
| Dry Air Flow (LPM) | Ozone Output (g/hr) | Ozone Concentration (%) |
|---|---|---|
| 2 | 2.13 | 1.33 |
| 4 | 3.81 | 1.19 |
| 6 | 5.31 | 1.11 |
| 8 | 6.33 | 0.99 |
| 10 | 7.25 | 0.91 |
| 15 | 10.00 | 0.84 |
Flexible Installation with Dry Air Systems
The VMUS-10 can run under vacuum-driven setups using devices like the VMD-20 air dryer in tandem with a venturi injector. This combination allows for efficient ozone dissolution into water without the need for moving parts, resulting in a highly reliable and low-maintenance system.
Applications
The VMUS-10 is widely used in:
- Water bottling plants
- Self-contained site remediation systems
- Commercial HVAC and air purification systems
Certified to CSA C22.2 No. 61010-1 and UL 61010-1, it meets stringent safety and performance standards for both industrial and commercial environments.
Conclusion: Value, Versatility, and Peace of Mind
With its compact size, high output, durable construction, and intelligent protection features, the VMUS-10 Ozone Generator is an outstanding value for demanding ozone applications. Whether you’re purifying air, treating water, or implementing advanced remediation systems, the VMUS-10 offers the reliability and flexibility professionals demand.
You can find this product here: https://www.oxidationtech.com/vmus10.html
