Ozone Injection

Equipment for dissolving ozone into water:

Learn more about ozone solubility and ozone mass transfer HERE

Compare the Venturi Injector to the Bubble Diffuser HERE

Tips on using a bubble diffuser to dissolve ozone into water HERE

Tips on using a venturi injector to dissolve ozone into water HERE



Bubble Diffusers
Product Gas Connections Dimensions (LxWxH) Nominal Gas Flow Rate Price

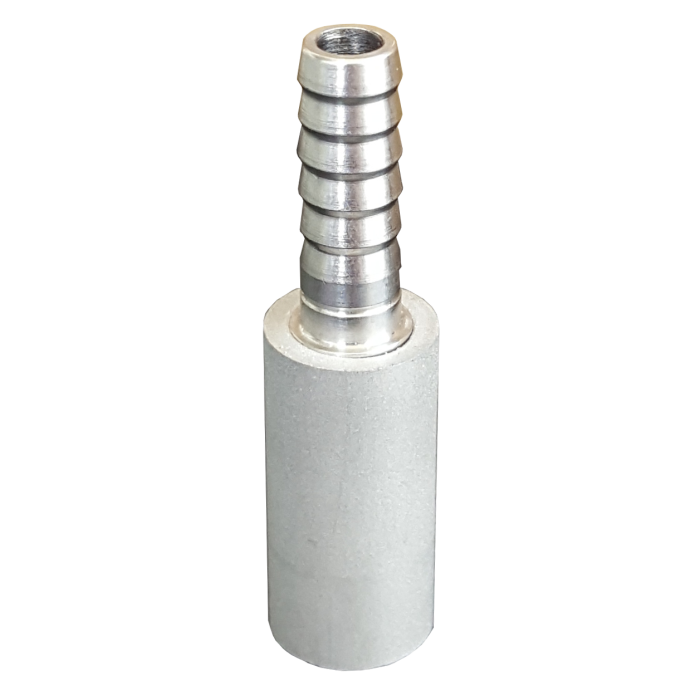

SS1 Ozone Diffuser
SS1 Diffuser
1/4" Barbed 1" x 1/2" 0 - 5 LPM
SS2 Diffuser
SS2 Diffuser
1/4" Barbed 2 1/2" x 3/4" 0 - 10 LPM
Stainless Steel diffuser
SS6-5 Diffuser
1/4" Male NPT connection 7" x 1/2" 0 - 1 CFM
SS6-7 Ozone Diffuser
SS6-7 Diffuser
1/4" Male NPT connection 7" x 3/4" 0 - 2.7 CFM
SS6-12
SS6-12 Diffuser
1/4" Male NPT connection 7" x 1" 0 - 5 CFM

Venturi Injectors
Product Thread Size Typical Water Flow Price

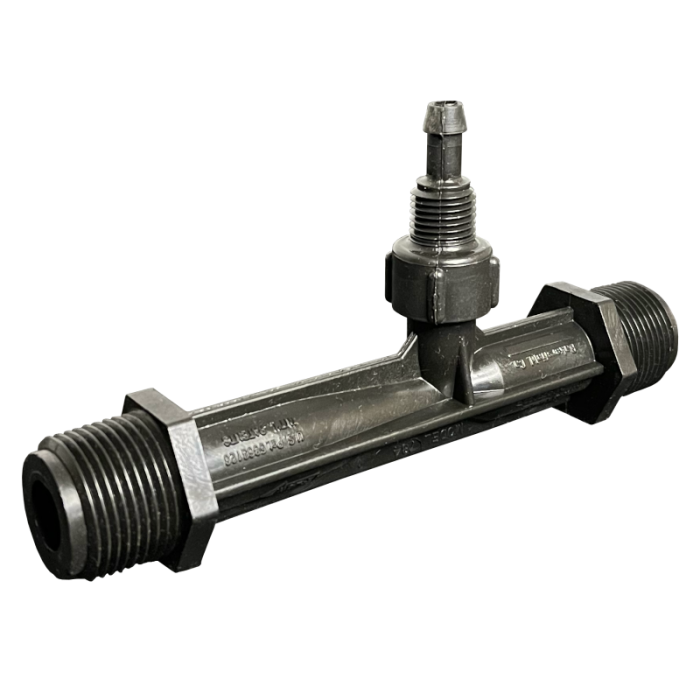

Model 484 Venturi Injector
Venturi 484
1/2" Male NPT 2 to 5 GPM
$66.00
Model 1585X PVDF Venturi Injector
Venturi 1585X
1.5" Male NPT 14 to 45 GPM
$164.00
Model 1587 PVDF Venturi Injector
Venturi 1587
1.5" Male NPT 25 to 56 GPM
$164.00
Model 1584 PVDF Venturi Injector
Venturi 1584
1.5" Male NPT 25 to 80 GPM
$187.50
Model 2081 PVDF Venturi Injector
Venturi 2081
2" Male NPT 43 to 124 GPM
$299.50
Venturi 3090
Venturi 3090
3" Male NPT 100 to 327 GPM
$796.00
Model 4091 PVDF Venturi Injector
Venturi 4091
4" Male NPT 150 to 530 GPM
$1,263.50

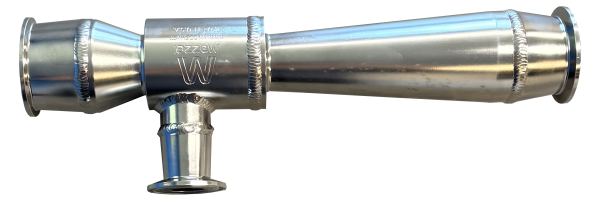

Model 2081-SS
Venturi Stainless Steel Injectors
1, 2 Male NPT 7 - 23 GPM, 43 - 124 GPM
$2,790.90

Flash reactors for additional mixing of ozone gas into water. Flash reactors are used as a static mixer.

Flash Reactors
Product Thread Size Typical Water Flow Price

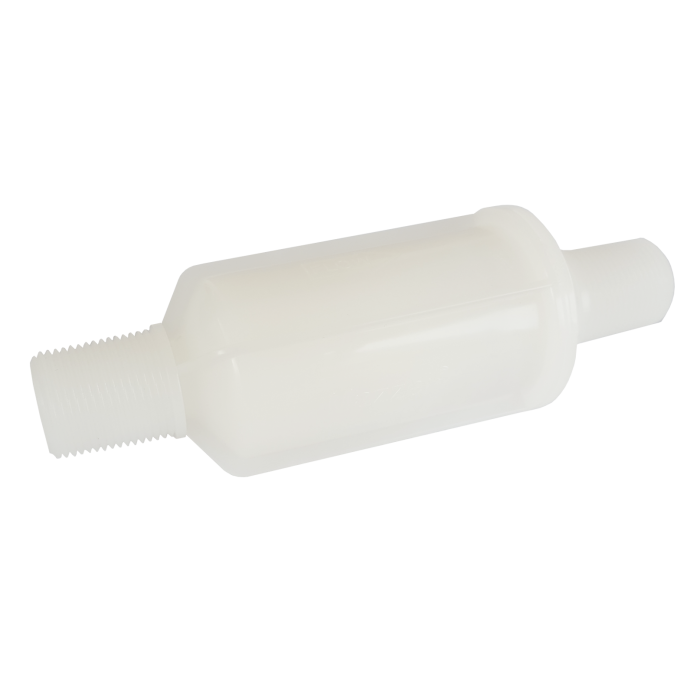

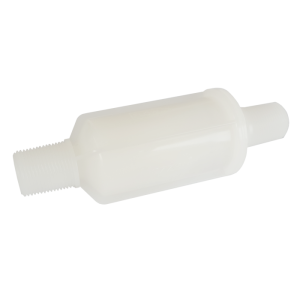

FR-75-NK Flash Reactor
Flash Reactor 75-NK
3/4" Male NPT 8.5 to 11 GPM
$200.00
FR-73-NK Flash Reactor
Flash Reactor 73-NK
3/4" Male NPT 6.9 to 9.9 GPM
$200.00
Natural PVDF Flash Reactor for mixing ozone and water
Flash Reactor 70-NK
3/4" Male NPT 5.3 to 7.7 GPM
$200.00

Static Mixers
Product Thread Size Typical Water Flow Price

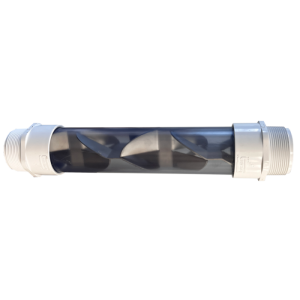

CPS Static Mixer
CPS-007 Static Mixer
3/4" NPS 1-12 GPM
$175.00
CPS Static Mixer
CPS-010 Static Mixer
1" NPS 2-20 GPM
$185.00
CPS Static Mixer
CPS-015 Static Mixer
1 1/2" NPS 4-45 GPM
$215.00
CPS Static Mixer
CPS-020 Static Mixer
2" NPS 6-75 GPM
$255.00
CPS Static Mixer
CPS-030 Static Mixer
3" NPS 25-160 GPM
$545.00
CPS Static Mixer
CPS-040 Static Mixer
4" NPS 40-275 GPM
$900.00



Additional Information:

Dissolve Ozone with Bubble Diffusers

Dissolve ozone with bubble diffusers

Dissolve Ozone with Venturi Injector

Dissolve ozone with venturi injector

Dissolve Ozone with Static Mixer

Static mixer for ozone in action

How to Read Venturi Charts

How to read a venturi injector performance chart

Fundamentals of Ozone Solubility

Fundementals of ozone solubility

Ozone Solubility Basics
