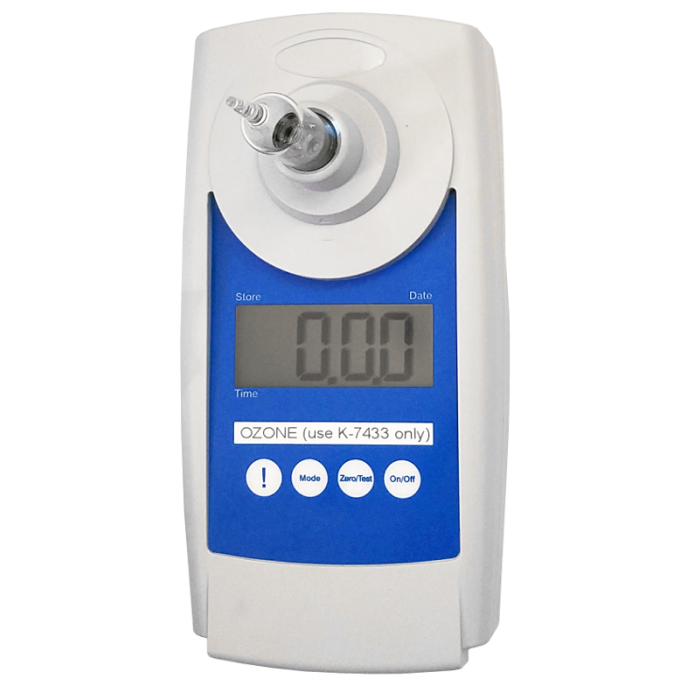

I-2022 Ozone

The I-2022 Dissolved Ozone Meter is designed for accurately and quickly measuring ozone in water levels from 0 to 0.75 ppm. This device uses the Indigo Method for testing.  This method is based on the decolorization of dye by ozone, where the loss of color is directly proportional to the ozone concentration. The test reagent is formulated with malonic acid to prevent interference from chlorine. Results are displayed on the meter in ppm (mg/L) of ozone present.

This device has LED display for precise and accurate readout and is easy to use.  Once the I-2022 has been purchased the cost per test is only $1.02.

What's Included:

     -SAM Photometer (I-2022)

     -K-7433 Ozone Vacu-vials

     -A blank/zero ampoule

     -25 mL sample cup

     -4 AAA batteries for operation

     -Screwdriver for installing/replacing batteries

     -Instruction manual

     -Carrying case to hold device & accessories

How to Use:

Before beginning the test, the I-2022 must be set to zero. Press the power key to turn on the device. The display will show "O3". Insert the ZERO ampule supplied with the Vacu-vials kit flat end first into the sample cell compartment. Place the light shield over the ZERO ampoule and press the zero/test key. The "O3" symbol will flash for approximately 8 seconds, then the display will show "0.0.0". Follow the test procedure in the Chlorine Vacu-vials kit also shown below.

1. Fill the sample cup to the 25 mL mark with the sample to be tested being careful to minimize turbulence.	2. Immediately place the Vacu-vial ampoule tip-first into the sample cup. Snap the tip and the ampoule will automatically fill.
3. To mix the ampoule, tilt it from side to side, allowing the bubble to travel from end to end.	4. Dry the ampoule then insert it into the photometer, flat end first, and obtain a reading in ppm.
