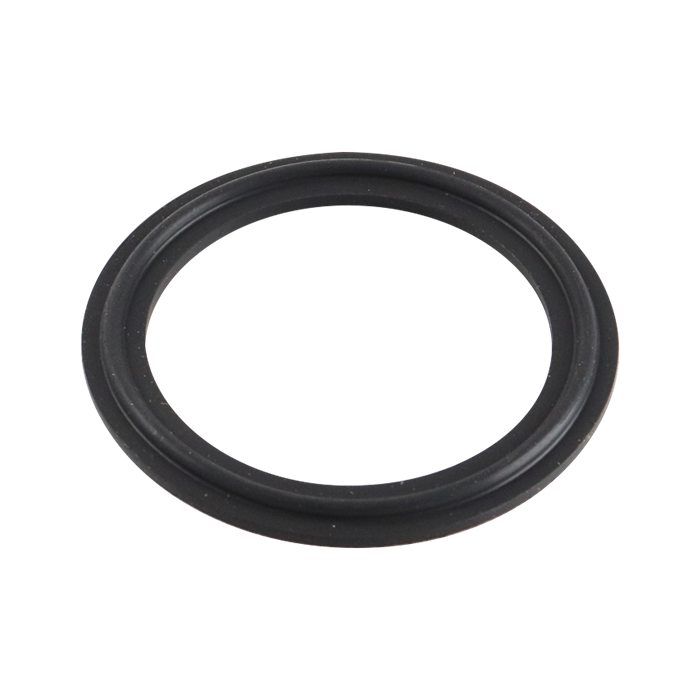

1.5" Viton Gasket
The 1.5" Viton Gasket is crafted from high-quality Viton material, known for its exceptional chemical resistance and durability.
Part Number#: Gasket-V-1.5
- SKU
- Gasket-V-1.5
$3.00
Description / 1.5" Viton Gasket
Features:
- Size: 1.5"
- Connection Type: Tri-Clamp
- Reliability: Designed to provide a secure and tight seal, ensuring there are no leaks in your system.
- Ease of Use: The Tri-Clamp connection type allows for quick and easy assembly and disassembly, making maintenance and cleaning a breeze.
- Standard: USP Class VI
Dimensional Data:
Nominal Size:
| (in) | ID (mm) | ID (mm) | OD(in) | OD (mm) | Bead (in) | Bead (mm) |
| 1 | 0.90 | 22.9 | 2.00 | 50.5 | 1.71 | 43.5 |
| 1 1/2 | 1.39 | 35.3 | 2.00 | 50.5 | 1.71 | 43.5 |
| 2 | 1.88 | 47.8 | 2.52 | 64 | 2.22 | 56.5 |
| 2 1/2 | 2.39 | 60.5 | 3.05 | 77.5 | 2.78 | 70.5 |
| 3 | 2.88 | 73.1 | 3.58 | 91 | 3.29 | 83.5 |
| 4 | 3.85 | 97.7 | 4.67 | 119 | 4.33 | 110 |
| 6 | 5.80 | 147.2 | 6.57 | 167 | 6.16 | 156.5 |
| 8 | 7.80 | 198 | 8.56 | 217.4 | 8.15 | 207 |
| 10 | 9.74 | 247.4 | 10.55 | 268 | 10.12 | 257 |
| 12 | 11.74 | 298.2 | 12.56 | 319 | 12.17 | 309 |
More Information
| Manufacturer | Oxidation Technologies |
|---|---|
| Warranty | 1 Year |
