12 inch Dryer Tubes
12 inch Dryer Tubes for Hess Ozone Generators
Part Number#: Dryer Tube 12 inch
- SKU
- Dryer Tubes 12 inch
Description / 12 inch Dryer Tubes

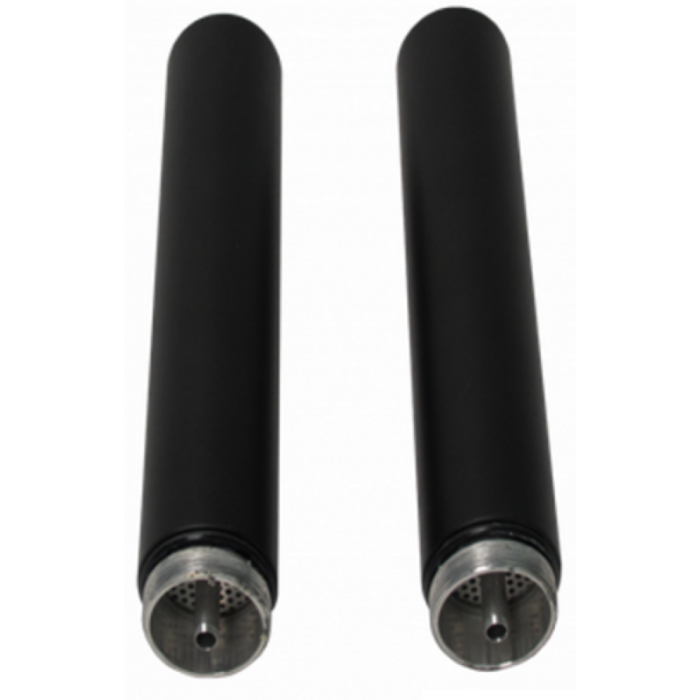

These Replacement Air Dryer Tubes are meant for the L-200 Ozone Generator. These are new 9-inch air dryer tubes for the Pure-Gas Air Dryer used on the Hess L-200 Ozone Generator
The VSA Series Heatless Desiccant Air Dryers are one of our longest running, mature product lines. Its proven design continues to provide solid performance and reliability at point-of-use applications.
- 4 Models Available to Match Your Application Requirements and Minimize Energy Loss
- Solid-State Timer with Built-In Memory Ensures Reliable Drying Cycles
- Fixed Orifice Purge Control for Consistent Ultra-Dry Outlet Conditions
- Dual Inlet & Outlet Port Configurations Allows for Custom, Easy Installation
- -40°F/C Standard Outlet Dewpoint
(ISO 8573.1 Class 2)
Features:
- Standard Outlet Dewpoint
- -40° F/C Pressure Dewpoint (PDP)
- Available Input Voltages
- 120 VAC
- 240 VAC
- Maximum Pressure - 150 PSIG
- Maximum Inlet Temperature - 120°F / 49°C
General Specifications:
| VSA1 | VSA2 | VSA3 | VSA4 | |
| Inlet Flow (SCFM @ 100 PSIG) | 2.8 | 5.8 | 8.0 | 12.0 |
| Purge Flow (SCFM @ 100 PSIG) | 0.8 | 1.7 | 2.5 | 3.2 |
| Outlet Flow (SCFM @ 100 PSIG) | 2.0 | 4.1 | 5.5 | 8.8 |
| Inlet / Outlet Ports (NPT) | 1/4" | 1/4" | 1/4" | 1/4" |
Dimensions:
| Weight (lbs) | Height (in) | Width (in) | Depth (in) | |
| VSA1 | 2.8 | 5.8 | 8.0 | 12.0 |
| VSA2 | 0.8 | 1.7 | 2.5 | 3.2 |
| VSA3 | 2.0 | 4.1 | 5.5 | 8.8 |
| VSA4 | 1/4" | 1/4" | 1/4" | 1/4" |
More Information
| Unit Features | - 12 inch Dryer Tubes for Hess Ozone Generators |
|---|---|
| Manufacturer | Oxidation Technologies |
| Warranty | 1 Year |
