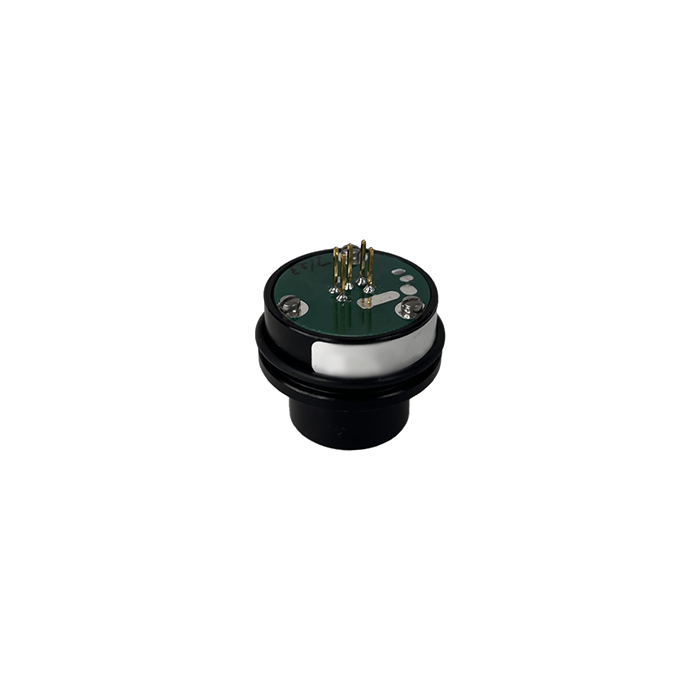

A12 Alcohol Sensor (00-0851)

E10-39 Alcohol Sensor only for the A12 Gas Transmitter.

Replaces Alcohol sensor, standard calibration range is 0-2000 ppm for each sensor.

Alcohol Info


Replacement Sensor for the ATI A12 Gas Transmitter.

Replaces Alcohol sensor at a standard range of 0-2000 ppm (0-2000ppm Ethanol, 0-4000ppm Methanol). Please note that this sensor need to be calibrated on-site.

If you need the complete Sensing Module (comes calibrated and ready to plug-in), then you need: 00-0850 Alcohol

Alcohol Information

More Information
Manufacturer ATI
Call For Price No
Gas Alcohol
Sensor Type Electrochemical Cell
Accuracy ± 5% of value
Standard Range 0-2000 ppm
Minimum Range 0-500 ppm
Maximum Range 0-2000 ppm
Monitor sensor fits A12
Sensitivity 1% of sensor module range
Operational Temperature Range -30º to +55ºC
Operational RH Range 0-95% Non-condensing
Warranty 1 Year
