A12 Hydrogen Sensor 0-1000 ppm (00-0225)
A12 Smart Sensing Modules:
0-1000 ppm Hydrogen Sensing Module. Smart Sensing Module stores operational information, calibration constants, gas sensor identification and range, and software revision level. This unit can quickly and easily be connected to the A12 UniSens Transmitter.
0-1000.0 ppm Hydrogen sensor
Standard Range = 0-1000 ppm
Minimum Range = 0-500 ppm
Maximum Range = 0-2000 ppm
These sensors come ready to operate in any of the above preset ranges (standard, minimum, or maximum). When you connect the Sensing Module to the Gas Transmitter, you will be asked which range you would like to use. We list the standard range as the sensors range, but each sensor is capable of operation in all 3 ranges.

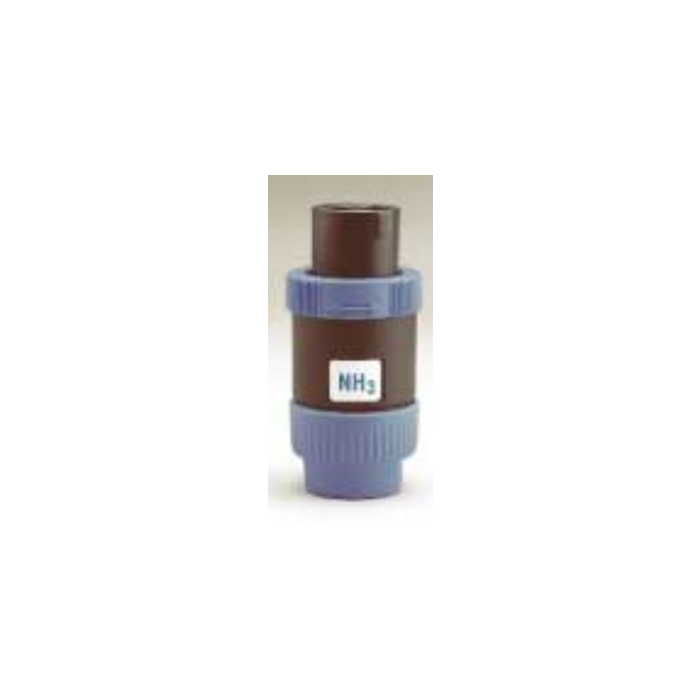

The Sensing Modules consist of an electrochemical gas sensor and solid state memory assembly. This complete package comes in a convenient housing that can easily be connected to the A12 UniSens transmitter. As these sensors come pre-calibrated, once the sensor is connect to the A12 the calibration constants upload to the base automatically. Each sensor can be calibrated to any range within the minimum or maximum range. There is an additional $50 calibration fee for custom calibration.
This Sensing Module is compatible with the A12 Gas Transmitter. If you wish to purchase only the sensors you need 00-0272, but then it will need to be calibrated onsite. You can use the Hydrogen PPM Calibration Kit for onsite calibration.
Since the sensors are calibrated independently and simply plug into the A12, you can switch between the 28 different gases offered very quickly and efficiently.
Using the optional sensor keeper you can maintain the sensor in stable operating condition for up to 6 months while it's sitting on the shelf.
|Call For Price||No|
|Sensor Type||Electrochemical Cell|
|Accuracy||± 5% of value|
|Standard Range||0-1000 ppm|
|Minimum Range||0-500 ppm|
|Maximum Range||0-2000 ppm|
|Monitor sensor fits||A12|
|Sensitivity||1% of sensor module range|
|Operational Temperature Range||-30º to +55ºC|
|Operational RH Range||0-95% Non-condensing|
