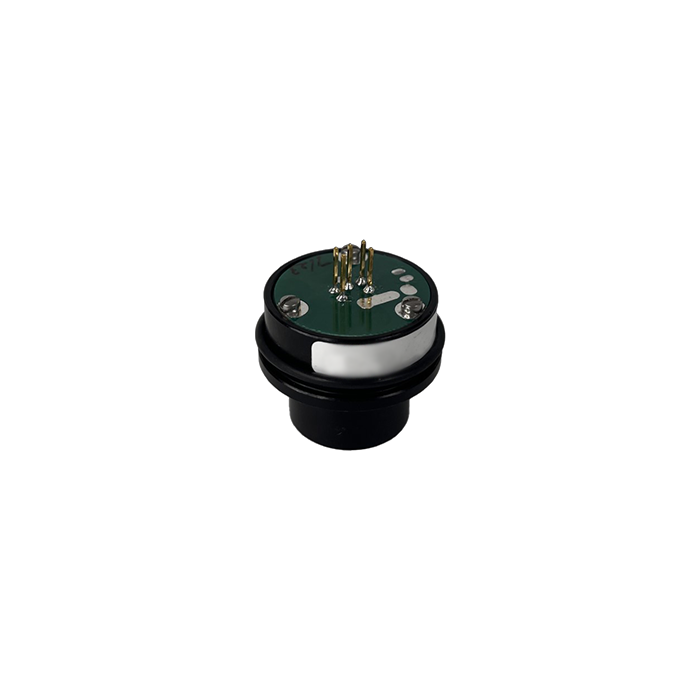

A12 Nitric Oxide Sensor (00-0275)
E10-25 Nitric Oxide Gas Sensor only for the A12 Gas Transmitter.
Replaces Nitric Oxide sensor, calibration range is either 0-50ppm or 0-1000 ppm for each sensor.
- SKU
- 00-0275
Description / A12 Nitric Oxide Sensor (00-0275)
Replacement Sensor for the ATI A12 Gas Transmitter.
Replaces Nitric Oxide sensor at a either standard calibration of 0-50 ppm or 0-1000pppm. Please note that this sensor need to be calibrated on-site.
If you need the complete Sensing Module (comes calibrated and ready to plug-in), then you need either:
00-0236 Nitric Oxide 0-50ppm
00-0996 Nitric Oxide 0-1000ppm
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.
**Calibration Service Request Form **
|
Calibration costs do vary, see below to get an estimate: Calibration Fee: $150 Analyzer Calibration Fee: $300 PM Calibration Sensor Fee: $330 Genie Calibration Fee: $265 ATI Calibration Fee: $205 ** note that prices are subject to change per labor and parts required. |
More Information
| Manufacturer | ATI |
|---|---|
| Gas | Nitric Oxide (NO) |
| Sensor Type | Electrochemical Cell |
| Accuracy | ± 5% of value |
| Standard Range | 0-50 ppm |
| Minimum Range | 0-25 ppm |
| Maximum Range | 0-500 ppm |
| Monitor sensor fits | A12 |
| Sensitivity | 1% of sensor module range |
| Operational Temperature Range | -30º to +55ºC |
| Operational RH Range | 0-95% Non-condensing |
| Warranty | 1 Year |
