0-50.0 ppm Hydrogen Sulfide sensor

Standard Range = 0-50 ppm

Minimum Range = 0-25 ppm

Maximum Range = 0-500 ppm

These sensors come ready to operate in any of the above preset ranges (standard, minimum, or maximum).  When you connect the Sensing Module to the Gas Transmitter, you will be asked which range you would like to use.  We list the standard range as the sensors range, but each sensor is capable of operation in all 3 ranges.

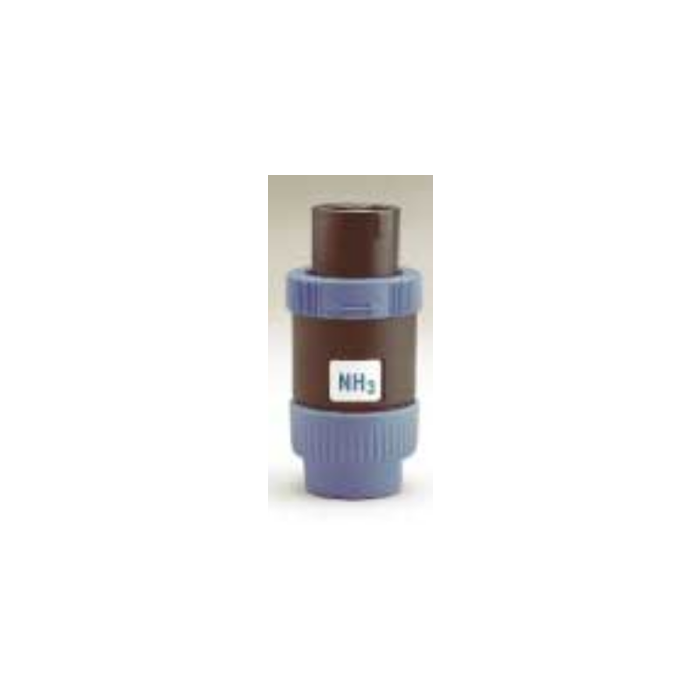

The Sensing Modules consist of an electrochemical gas sensor and solid state memory assembly.  This complete package comes in a convenient housing that can easily be connected to the A12 UniSens transmitter.  As these sensors come pre-calibrated, once the sensor is connect to the A12 the calibration constants upload to the base automatically. Each sensor can be calibrated to any range within the minimum or maximum range.  There is an additional $50 calibration fee for custom calibration.

This Sensing Module is compatible with the A12 Gas Transmitter.  If you wish to purchase only the sensors you need 00-0275, but then it will need to be calibrated onsite. You can use the Nitric Oxide Calibration Kit for onsite calibration.

Since the sensors are calibrated independently and simply plug into the A12, you can switch between the 28 different gases offered very quickly and efficiently.

Using the optional sensor keeper you can maintain the sensor in stable operating condition for up to 6 months while it's sitting on the shelf.

Nitric Oxide Information
