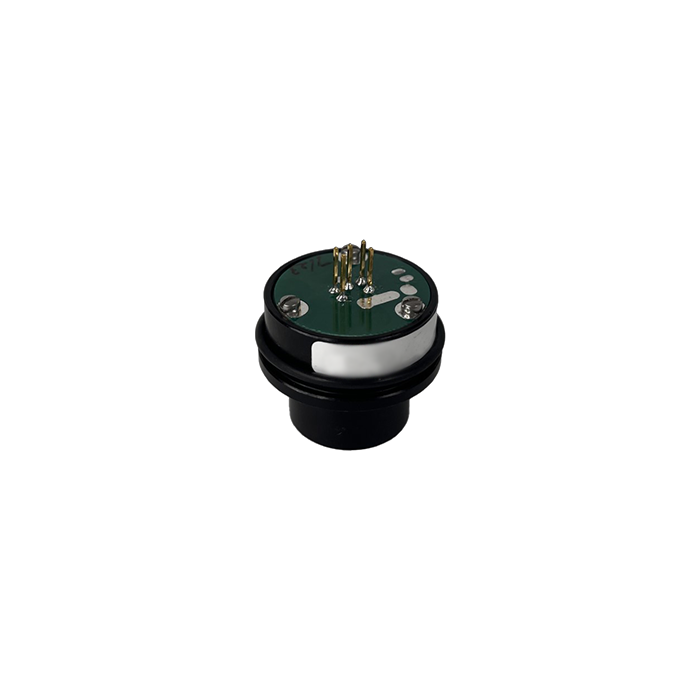

A12 Nitrogen Dioxide Sensor (00-0276)

E10-26 Nitrogen Dioxide Gas Sensor only for the A12 Gas Transmitter.

Replaces Nitrogen Dioxide sensor, calibration range is 0-20 ppm for each sensor.

Nitrogen Dioxide Information


Replacement Sensor for the ATI A12 Gas Transmitter.

Replaces Nitrogen Dioxide sensor, standard calibration of  0-20pppm. Please note that this sensor need to be calibrated on-site.

If you need the complete Sensing Module (comes calibrated and ready to plug-in), then you need: 00-0237 Nitrogen Dioxide 0-20ppm

If you need the Sensing Module WITH an Auto-Test Generator, then you need: 00-0238 Nitrogen Dioxide

Nitrogen Dioxide Information

More Information
Manufacturer ATI
Call For Price No
Gas Nitrogen Dioxide (NO2)
Sensor Type Electrochemical Cell
Accuracy ± 5% of value
Standard Range 0-20 ppm
Minimum Range 0-5 ppm
Maximum Range 0-200 ppm
Monitor sensor fits A12
Sensitivity 1% of sensor module range
Operational Temperature Range -30º to +55ºC
Operational RH Range 0-95% Non-condensing
Warranty 1 Year
