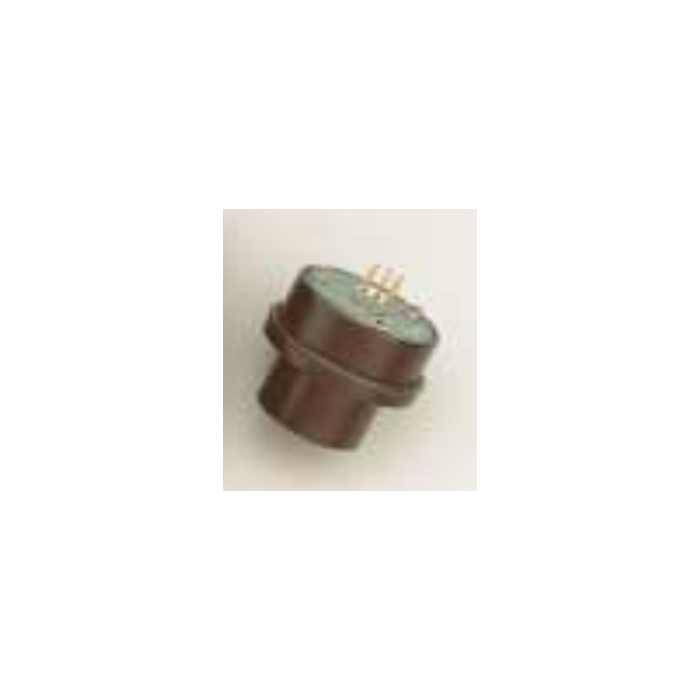

A12 Oxidant High Range Sensor (00-0265)

E10-XX High Range Oxidant Sensor only for the A12 Gas Transmitter.

Replaces Bromine, Chlorine, Chlorine Dioxide, Fluorine sensors, standard calibration range is 0-5 ppm for each sensor.

SKU
00-0265

Customizable Options:

  $234.00

Related Products

Description / A12 Oxidant High Range Sensor (00-0265)

Replacement Sensor for the ATI A12 Gas Transmitter.

Replaces Bromine, Chlorine, Chlorine Dioxide, and Fluorine sensors at a standard range of 0-5 ppm. Please note that this sensor need to be calibrated on-site.

If you need the complete Sensing Module (comes calibrated and ready to plug-in), then you need:
00-0211 - Bromine
00-0846 - Chlorine 0-2 ppm
00-0213 - Chlorine 0-10 ppm
00-0215 - Chlorine Dioxide 0-2 ppm
00-0383 - Chlorine Dioxide 0-5 ppm
00-1404 - Chlorine Dioxide 0-1000 ppb
00-0217 - Fluorine



If you need the Sensing Module WITH an Auto-Test Generator, then you need:
00-0212 - Bromine
00-0847 - Chlorine 0-2 ppm
00-0214 - Chlorine 0-10 ppm
00-0216 - Chlorine Dioxide 0-2 ppm
00-0384 - Chlorine Dioxide 0-5 ppm
00-0218 - Fluorine



More Information

Manufacturer ATI
Gas Bromine (Br2), Chlorine (Cl2), Chlorine Dioxide (ClO2), Fluorine (F2)
Sensor Type Electrochemical Cell
Accuracy ± 5% of value
Standard Range 0-5 ppm
Minimum Range 0-5 ppm
Monitor sensor fits A12
Sensitivity 1% of sensor module range
Operational Temperature Range -30º to +55ºC
Operational RH Range 0-95% Non-condensing
Warranty 1 Year
