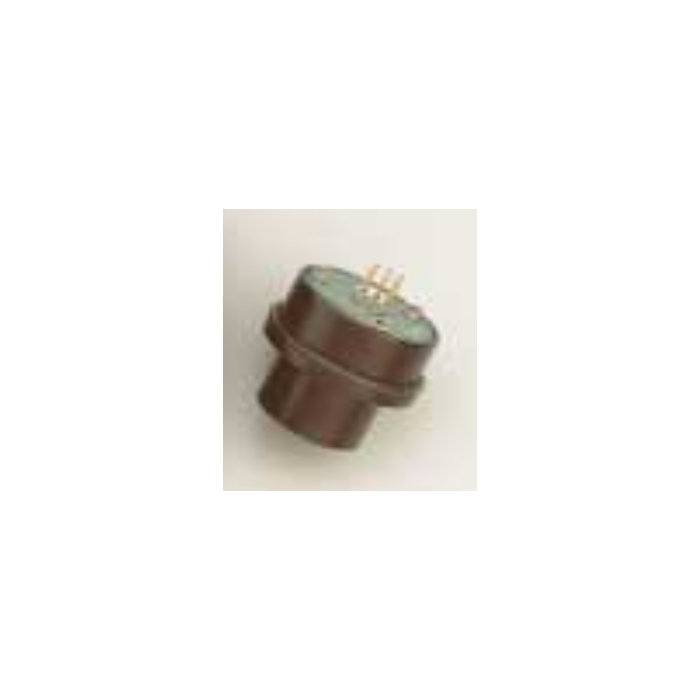

A12 Ozone/Iodine High Range Sensor (00-1111)
A12 Ozone/Iodine High Range Sensor (00-1111)
E10-14 Low Range Ozone/Iodine Sensor only for the A12 Gas Transmitter.
Replaces High Range Ozone/Iodine sensors, standard calibration range is 0-10 ppm for each sensor.
- SKU
- 00-1111
$234.00
Description / A12 Ozone/Iodine High Range Sensor (00-1111)
Replacement Sensor for the ATI A12 Gas Transmitter.
Replaces Ozone or Iodine sensors at a standard range of 0-10 ppm. Please note that this sensor need to be calibrated on-site.
If you need the complete Sensing Module (comes calibrated and ready to plug-in), then you need:
00-0219 - Ozone 0-2 ppm
00-0430 - Iodine 0-2 ppm
If you need the Sensing Module WITH an Auto-Test Generator, then you need:
00-0220 - Ozone 0-2 ppm
00-0431 - Iodine 0-2 ppm
More Information
| Manufacturer | ATI |
|---|---|
| Gas | Ozone (O3) |
| Sensor Type | Electrochemical Cell |
| Accuracy | ± 5% of value |
| Standard Range | 0-10 ppm |
| Minimum Range | 0-2 ppm |
| Maximum Range | 0-20 ppm |
| Monitor sensor fits | A12 |
| Sensitivity | 1% of sensor module range |
| Operational Temperature Range | -30º to +55ºC |
| Operational RH Range | 0-95% Non-condensing |
| Warranty | 1 Year |
