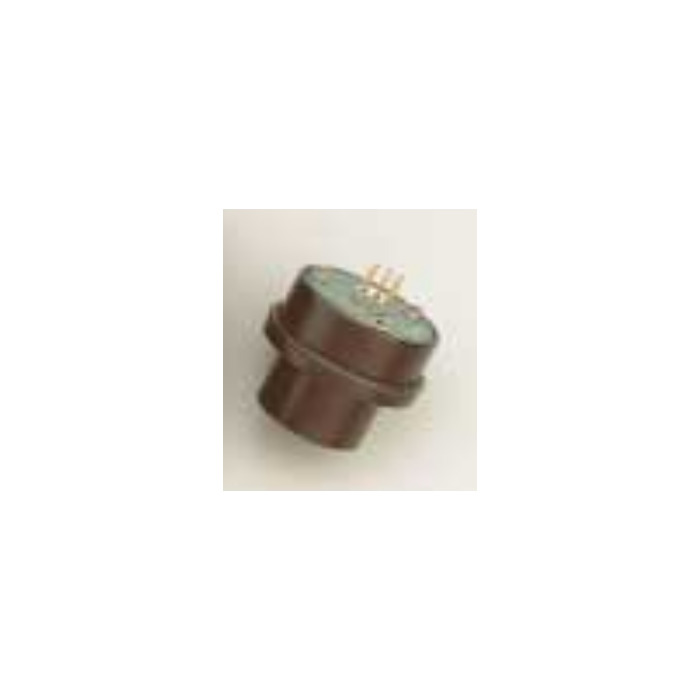

A12 Ozone/Iodine Low Range Sensor (00-0292)

E10-14 Low Range Ozone/Iodine Sensor only for the A12 Gas Transmitter.

Replaces Ozone/Iodine sensors, standard calibration range is 0-2 ppm for each sensor.

Ozone Information

Iodine Information

SKU
00-0292

Customizable Options:

  $270.00

Related Products

Description / A12 Ozone/Iodine Low Range Sensor (00-0292)

Replacement Sensor for the ATI A12 Gas Transmitter.

Replaces Ozone or Iodine sensors at a standard range of 0-2 ppm. Please note that this sensor need to be calibrated on-site.

If you need the complete Sensing Module (comes calibrated and ready to plug-in), then you need:
00-0219 - Ozone 0-2 ppm
00-0430 - Iodine 0-2 ppm



If you need the Sensing Module WITH an Auto-Test Generator, then you need:
00-0220 - Ozone 0-2 ppm
00-0431 - Iodine 0-2 ppm

Iodine Information

Ozone Information

More Information

Manufacturer ATI
Gas Ozone (O3)
Sensor Type Electrochemical Cell
Accuracy ± 5% of value
Standard Range 0-2 ppm
Minimum Range 0-1 ppm
Maximum Range 0-3 ppm
Monitor sensor fits A12
Sensitivity 1% of sensor module range
Operational Temperature Range -30º to +55ºC
Operational RH Range 0-95% Non-condensing
Warranty 1 Year
