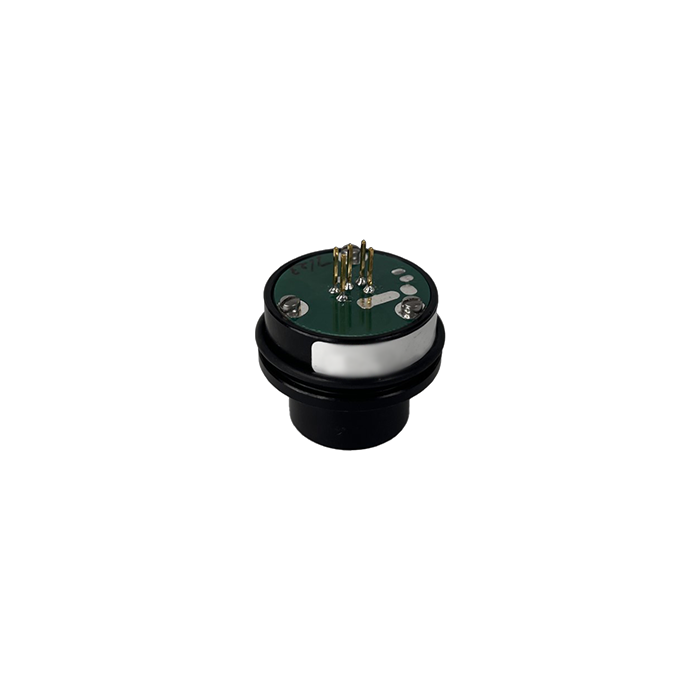

A12 Phosgene Sensor (00-0279)
E10-20 Phosgene Gas Sensor only for the A12 Gas Transmitter.
- SKU
- 00-0279
$282.00
Description / A12 Phosgene Sensor (00-0279)
Replacement Sensor for the ATI A12 Gas Transmitter.
Replaces Phosgene sensor, standard calibration of 0-2 ppm. Please note that this sensor need to be calibrated on-site.
If you need the complete Sensing Module (comes calibrated and ready to plug-in), then you need: 00-0227 Phosgene
More Information
| Manufacturer | ATI |
|---|---|
| Call For Price | No |
| Gas | Phosgene (COCl2) |
| Sensor Type | Electrochemical Cell |
| Accuracy | ± 5% of value |
| Standard Range | 0-2 ppm |
| Minimum Range | 0-1 ppm |
| Maximum Range | 0-100 ppm |
| Monitor sensor fits | A12 |
| Sensitivity | 1% of sensor module range |
| Operational Temperature Range | -30º to +55ºC |
| Operational RH Range | 0-95% Non-condensing |
| Warranty | 1 Year |
