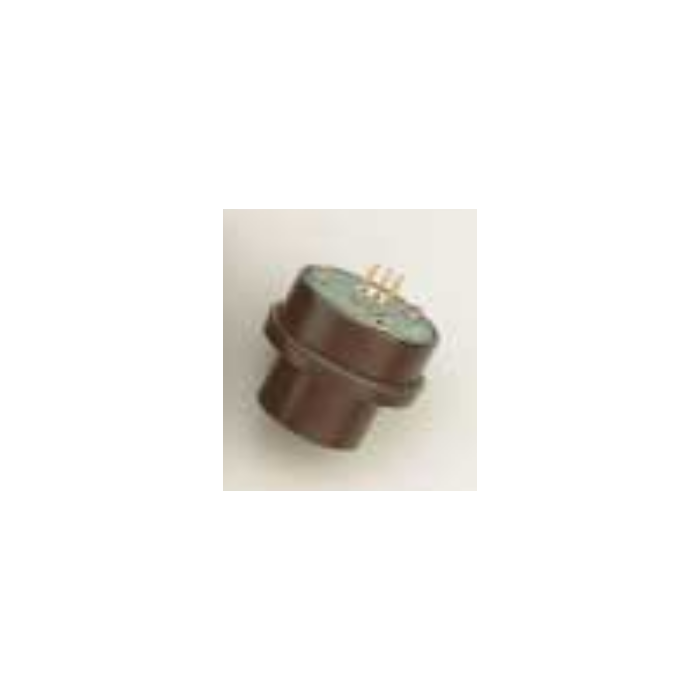

A12 Sulfur Dioxide Sensor (00-0266)

E10-27 sulfur Dioxide Sensor only for the A12 Gas Transmitter.

Replaces Sulfur Dioxide sensor, standard calibration range is 0-20 ppm for each sensor.

Sulfur Dioxide Information


Replacement Sensor for the ATI A12 Gas Transmitter.

Replaces Sulfur Dioxide sensor at a standard range of 0-20 ppm. Please note that this sensor need to be calibrated on-site.

If you need the complete Sensing Module (comes calibrated and ready to plug-in), then you need: 00-0239 Sulfur Dioixde

If you need the Sensing Module WITH an Auto-Test Generator, then you need:  00-0240 Sulfur Dioxide

Sulfur Dioxide Information

More Information
Manufacturer ATI
Call For Price No
Gas Sulfur Dioxide (SO2)
Sensor Type Electrochemical Cell
Accuracy ± 5% of value
Standard Range 0-20 ppm
Minimum Range 0-10 ppm
Maximum Range 0-200 ppm
Monitor sensor fits A12
Sensitivity 1% of sensor module range
Operational Temperature Range -30º to +55ºC
Operational RH Range 0-95% Non-condensing
Warranty 1 Year
