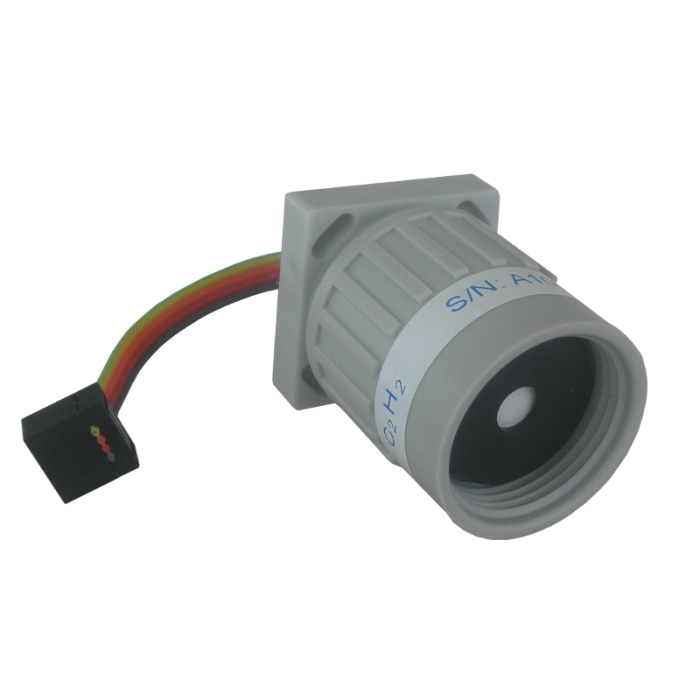

ATI low range Hydride Sensor 00-0096
PN - 00-0096, A10-xx low range hydride sensor. Replacement sensor for ATI A14/A11 or B12 Gas Detectors.
Replaces Arsine, Diborane, Germane, Hydrogen Selenide, and Phosphine sensors, standard calibration range is 0-1000 ppb for each sensor.
- SKU
- ATI 00-0096
$315.00
Related Products
Description / ATI low range Hydride Sensor 00-0096
Replacement sensor for ATI A14/A11 or B12 Gas Detectors.
Replaces Arsine, Diborane, Germane, Hydrogen Selenide, and Phosphine sensors, 0- 1,000 ppb range. Each gas uses the same sensor, calibrate for specific gas and range.
Sensor can be installed in existing transmitter and is a simply plug in connection. Sensor must be calibrated on transmitter for proper operation. For information on calibration follow this link, or contact our office.
More Information
| Manufacturer | ATI |
|---|---|
| Gas | Arsine (AsH3), Diborane (B2H6), Germane (GeH4), Hydrogen Selenide (H2Se), Phosphine (PH3) |
| Sensor Type | Electrochemical Cell |
| Range | 0-1000 ppb |
| Accuracy | Generally ±5% of value, but limited by available calibration gas accuracy. |
| Standard Range | 0-1000 ppb |
| Minimum Range | 0-500 ppb |
| Maximum Range | 0-1000 ppb |
| Monitor sensor fits | A14/A11, B12 |
| Sensitivity | 1.0 ppb |
| Operational Temperature Range | -25° to +55°C |
| Operational RH Range | 0-95% non-condensing |
| Warranty | 1 Year |
