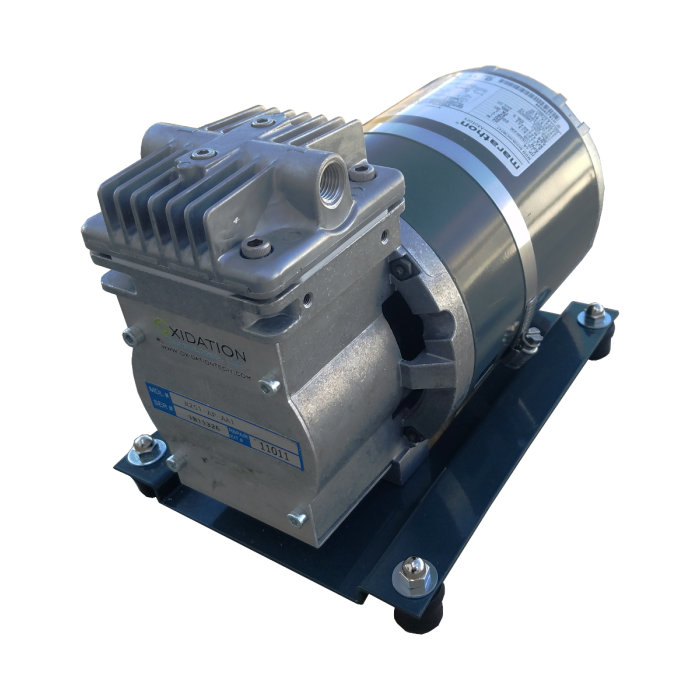

Ozone Compressor

Oil-less pump that can be utilized in almost any application you have. Do not start the pump against pressure or vacuum. The pump is designed for atmospheric pressure or vacuum on the inlet.
Part Number: OC-3-A (R251-AP-AA1)
- SKU
- OC-3-A
Description / Ozone Compressor
Operates without oil or any other lubrication. This pump operates at 115/230 VAC at 50/60 Hz, see motor label for wiring diagrams and full electrical data.

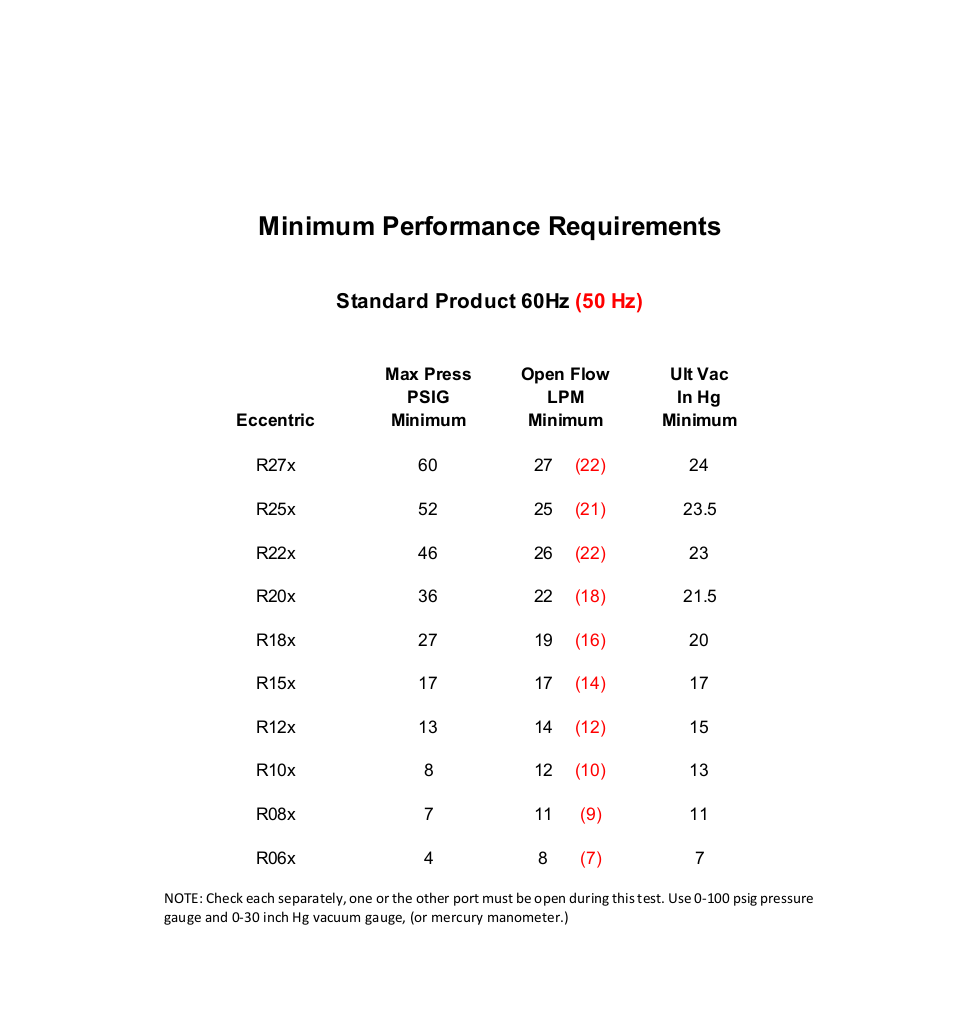

Maximum performance: 0-29.5″ HG, 0-150 LPM, 0-75 PSIG.
This pump is intended for use with gases only, do not use this product for liquids. For applications where liquid may be present in the gas stream, mount the pump so that the discharge port faces toward the ground. Mounting the pump at the highest point in the system will prevent liquid from collecting in the pump head. A heated head pump may be required to maintain the gas temperature through the head.
Ambient temperature of this pump should not exceed 40°C/104°F. The pump must have adequate ventilation and/or cooling to run properly.
If the gas stream has a high level of particulate matter, a filter should be installed before the pump. If the gas stream has a high level of liquid matter, a membrane separator should be installed before the pump. This should be in used in conjunction with best practices for pump installation including mounting the 3 pump head so that the discharge port faces toward the ground. Keep in mind that the pump head can be rotated on the housing and the gas will always flow in the direction of the arrows.
More Information
Product Category | Oxygen Generator |
---|---|
Manufacturer | Misc |
Warranty | 1 Year |
