AQY1 Monitor

The Aeroqual AQY1 Micro air quality monitoring system monitors ozone, nitrogen dioxide, and particulate matter.

Nitrogen Dioxide Information

Ozone Information

Call For Price

The AQY 1 is designed to be used as a single device or deployed in a network of monitors in an urban environment. Small, cost effective, and user friendly it can be used by air quality professionals and those who are new to the science of air quality measurement.

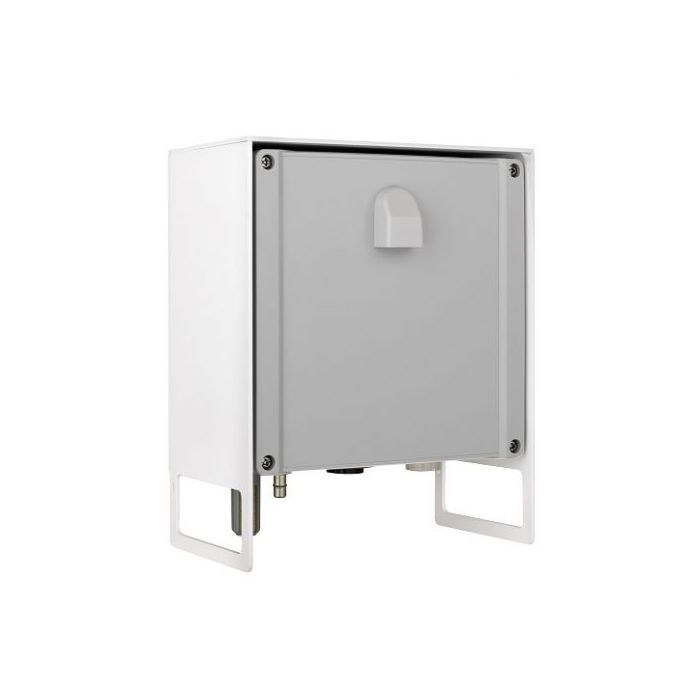

The AQY monitor itself is small, about the size of a two-slice toaster, and measures the following parameters:

     -Particulate matter (PM2.5 & PM10)

     -Ozone (O3)

     -Nitrogen Dioxide (NO2)

     -Temperature

     -Humidity

     -Dewpoint



Features:

     -PM2.5 and PM10 optical particle sensor (0 to 1000 μg/m3) with RH correction

     -Ozone (0-0.2 ppm O3) GSS gas sensor with integrated zero cycle

     -Nitrogen Dioxide (0-0.5 ppm NO2) gas sensor with O3 interference correction

     -External temperature and humidity sensor, with calculated dew point



Specifications:

Control System

Single board computer, 1.2GHz quad-core, 1GB SDRAM, 16GB SDHC Storage, Linux Operating System

Communications

Standard: WIFI, 3/3.5/4G cellular modem

Software

Connect: for setup and field service. Installed on device and accessed via web browser

Cloud: for instrument and data management. Runs on secure ‘cloud’ servers, accessed via web browser.

Features: configuration, diagnostics, journal, calibration and data acquisition, plus SMS and email alerts, auto data export via FTP and email, and data export API

Data logging

16GB SDHC Storage (>2 years data storage)

Averaging period

1 min, 5 min, 10 min, 15 min, 20 min, 30 min, 1 hr, 2 hr, 4 hr, 8 hr, 12 hr, 24 hr

Power System

12VDC plug pack (90 to 260VAC input) 24W (rated for -10°C to 40°C) Cable: 5m

Enclosure

Weather proof IP33 with solar shield

PM Sampling System

Inlet: 4cm anti-static inlet

Sampling: 5V DC fan

Gas Sampling System

Inlet: Teflon, stainless steel

Sampling: 5V DC fan

Dimensions

215H x 170W x 125D mm (including solar shield armour & mounting brackets)

Weight

< 1 Kg

Environmental operating range

-10°C to +40°C

Mounting

Mounting bracket included for pole, tripod or wall

Life expectancy

System: 5 years Sensors: ~12months based on 0-50 μg/m3 annual average PM10

Other measurements

Temperature: -40°C to 125°C; Relative Humidity: 0 to 100%; Dewpoint: -30°C to 50°C



Installation and Maintenance:

The AQY 1 air monitor mounts to walls, poles or railings using a supplied mounting bracket or simply with cable ties. Weighing approx. 1kg, the AQY 1 is intended to operate in a fixed location yet it can be moved from place to place with relative ease.

Power is mains-supplied via a 12VDC outdoor-friendly plug pack. Solar and battery power is possible, though not currently available as a factory-standard option.

Once installed the AQY is designed to be trouble-free. In moderately polluted conditions the AQY 1 will not require maintenance for more than 12 months. Using Aeroqual’s software tools, the sensors can be remotely calibrated to extend their useful operating life. When sensors do expire, replacement is simple and can be carried out by an authorized service center or by those who are confident to do so themselves.



Software and Communication:

The AQY 1 comes with the same air monitoring software package as our professional-grade AQM and AQS products. The software is browser-based and allows users to view multiple monitors on a map, average data, plot charts with multiple monitors and parameters, and manage them remotely – e.g. trouble-shooting, changing settings, updating firmware. For more information on the air monitoring software visit this page.

The AQY 1 communicates wirelessly via WIFI or 3/3.5/4G cellular. The AQY 1 has on board storage to ensure no data ever gets lost. In addition, data can be downloaded directly from the monitor if required, which is handy in case you lost your internet connection for example. Advanced users may prefer to access their data through our API, so they can view and analyze data in their preferred software package. All options are available with the AQY monitoring system.



Care Support Package:

The CARE Support Package includes:

     -Cloud Plus software license for data mangement, diagnostics and reporting

     -Open API for access to data

     -Remote technical support and instrument health monitoring

     -Unlimited data backup and storage

     -Free automatic upgrades to the latest version of Connect and Cloud software

     -30% off replacement parts and sensors



Downloads:

AQY1 Spec Sheet
More Information
Manufacturer Aeroqual
Rental Period Weekly
Call For Price No
Gas Nitrogen Dioxide (NO2), Ozone (O3), Particulate Matter (PM)
4-20 mA Output No
Relays 2 Relays
Field Replaceable Sensor No
Min, Max, Avg No
Voltage Output 0-5 V
Power Requirements 24VDC 1A (option regulated 12 VDC)
Datalogging No
Rechargeable No
Field Replaceable Battery No
Warranty 1 Year
Calibration Annually
Sensor Life 2 Years
Range PM2.5/PM10, 0-0.2 ppm (O3), 0-0.5 ppm (NO2)
Unit Features

-Samples 3 Different Gases

-16GB SDHC Storage

-5 Year System Life Expentancy

-Track Temperature, Humidity, & Dewpoint

Sensor Range

PM2.5/PM10

0-0.2 ppm (O3)

0-0.5 ppm (NO2)

Resolution Gas Dependent
Sensor Range

PM2.5/PM10

0-0.2 ppm (O3)

0-0.5 ppm (NO2)
