Centrox-CR Oxygen Cylinder Refilling Station
Centrox-CR Oxygen Cylinder Refilling Station

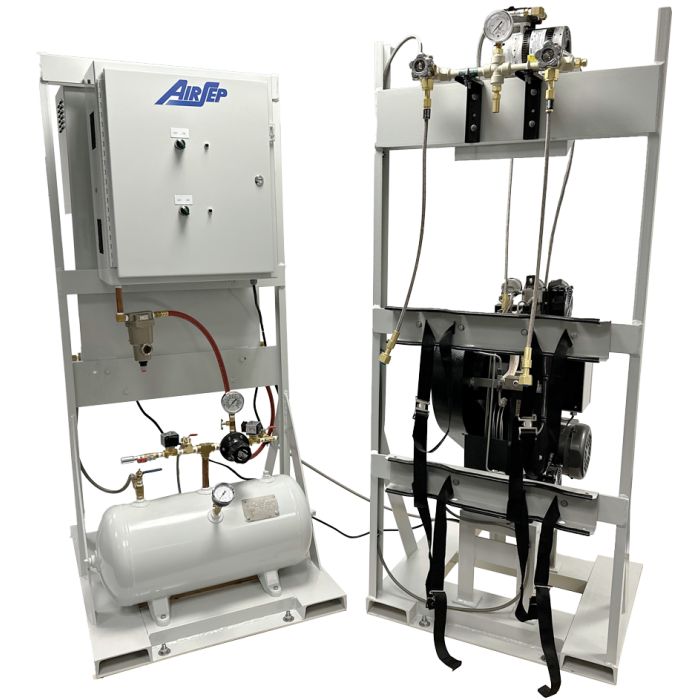

The AirSep Centrox-CR provides a reliable, secure oxygen source in a compact, all-in-one Oxygen Cylinder Filling Station. Designed for simplicity, the user-friendly Centrox ensures smooth and convenient operation.
Capable of delivering oxygen at 93% ±3% purity, the Centrox-CR efficiently fills your cylinders. In automatic mode, it transitions to standby as soon as the fill cycle is finished—saving time and energy.
- SKU
- Centrox-CR
- Color
- White
Description / Centrox-CR Oxygen Cylinder Refilling Station
The Centrox-CR generator can fill your cylinders with up to 93 ±3% oxygen concentration. When in auto mode, the unit enters standby automatically once the fill cycle is complete.
Features:
- Easily installed
- Easy to operate and maintain integrated oxygen concentration monitor
- Gauges to monitor fill progress
- Sturdy straps to firmly secure cylinders during filling
- Single phase, grounded power cable
- 2.0kW power consumption
- Various pigtail connections available
- 20A pigtail for 120V applications
- Oil free compressor and oxygen booster
- Adjustable alarm setpoint available
Product Characteristics:
| Product Flow | 32 SCFH (15 SLPM) |
| Product Pressure | 50 PSI |
| Product Concentration | up to 93% |
| Dimensions (W x D x H) | 37 x 30 x 68 in (94 x 76 x 173 cm) |
| Weight | 514 lbs (223 kg) |
| Sound Level | 70 dBA |
| Ambient Operating Conditions |
Locate the oxygen generator in a well-ventilated area that is protected from weather elements and |
| Control Power Requirements |
120V ~+-10%, 60Hz 15A |
Specifications:
Downloads:
More Information
| Manufacturer | Air Sep |
|---|---|
| Listing Description | The AirSep Centrox-CR provides a reliable, secure oxygen source in a compact, all-in-one Oxygen Cylinder Filling Station. Designed for simplicity, the user-friendly Centrox ensures smooth and convenient operation. Capable of delivering oxygen at 93% ±3% purity, the Centrox-CR efficiently fills your cylinders. In automatic mode, it transitions to standby as soon as the fill cycle is finished—saving time and energy. |
| O2 Delivery PSI | 45+ PSI |
| Dimensions (LxWxH) | 37 x 30 x 68 in (94 x 76 x 173 cm) |
| Warranty | 1 Year |
