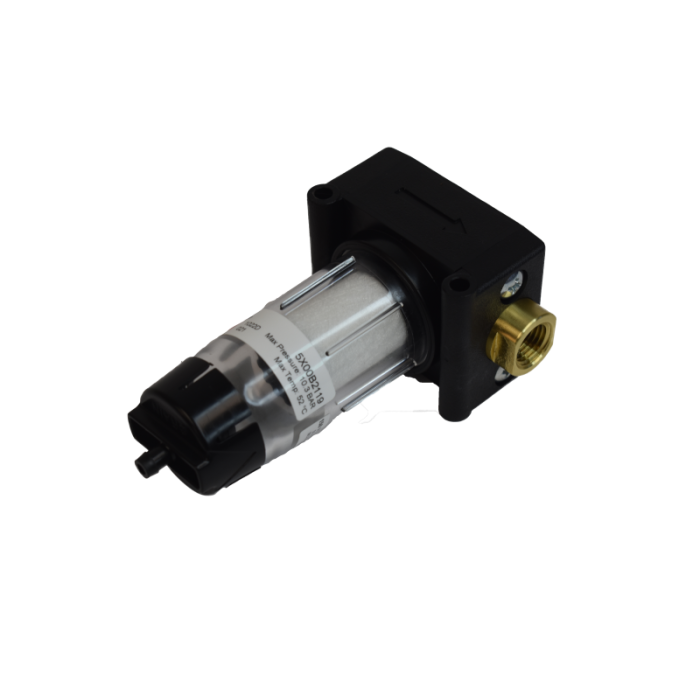

Filt-5X
Replacement filter with a 0.01-micron rated coalescing filter element.
9 In Stock
- SKU
- Filt-5X
$72.30
Related Products
Description / Filt-5X
Replacement filter with a 0.01-micron rated coalescing filter element.
Features:
- Modular assembly and mounting
- Threaded ports or quick-connect fittings for tubing up to 10 mm in diameter
- 0.01-micron rated coalescing filter element
- Automatic drain, or manual drain
- High-strength polycarbonate plastic filter bowl, or aluminum bowl
Product Specs:
| Filter Type | 0.01 μm |
| Bowel Size | 2 oz (60ml) |
| Filter Material | Borosilicate Glass |
| Port Type | Threaded Ports |
| Mounting | Modular |
| Maximum Flow | Compressed Air |
| Ambient Temp Range | 40 to 125 F (4 to 52 C) |
| Inlet Pressure Range | Up to 150 psig (10 bar) |
| Media Temp Range | 40 to 125 F (4 to 52 C) |
| Port Size | 1/4 |
| Drain Type | Manual |
| Bowl Type | Polycarbonate |
| Port Thread | NTP |
| Weight | 0.49 lbs (0.22 kg) |
Brochures:
More Information
| Quickbooks Stock Level | 9.000000 |
|---|---|
| Quickbooks Stock Date Expected | 2024-12-06 00:00:00 |
| Product Category | Filters |
| Features | Modular assembly, threaded ports, and 0.01-micron coalescing filter. Choose auto or manual drain and high strength bowl options—polycarbonate or aluminum— |
| Manufacturer | Oxidation Technologies |
| Warranty | 1 Year |
