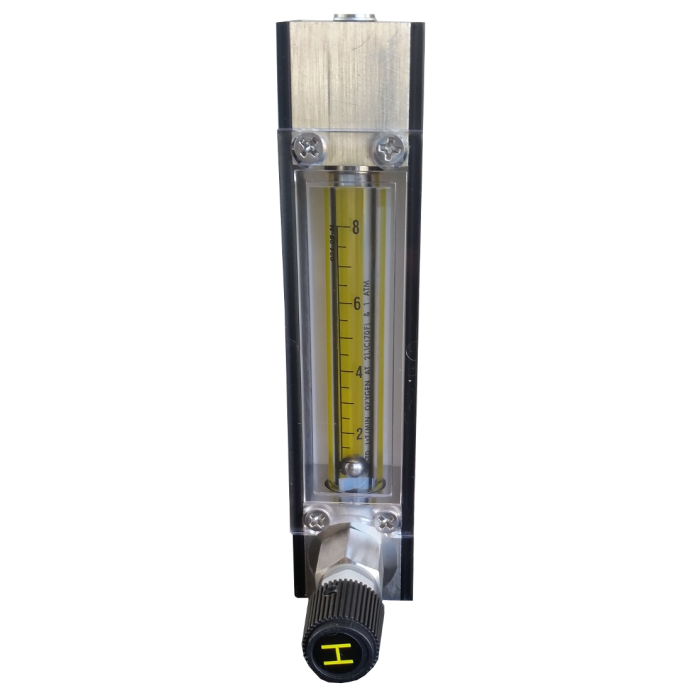

Flowmeter SS 0-10 LPM
Stainless Steel Flowmeter to control and adjust ozone gas flowrates from 0-10 LPM
4 In Stock
Lead time for orders over 4 units: 1-2 weeks
- SKU
- FMSS-10
$375.00
Related Products
Description / Flowmeter SS 0-10 LPM
0 - 10 LPM Stainless Steel Flowmeter that uses a visual float type reading and has a built in needle valve for high precision control. This flowmeter is made out of ozone resistant material (stainless steel and Viton o-rings) and therefore is perfect for flow control and to adjust ozone gas flow rates. The front shield on the unit protects the flow tube but also enhances the reading resolution.
1/4" NPT inlet and outlet connection fittings are located on the back of the unit.
Maximum Operating Pressure is 200 PSI
65 mm size meter
Replacement Kit:
More Information
| Manufacturer | Oxidation Technologies |
|---|---|
| Quickbooks Stock Level | 4.000000 |
| Range | 0-10 LPM |
| Nominal Gas Flow Rate | 0 - 10 LPM |
| Operating Pressure | 1 - 200 PSI |
| Max Pressure | 200 PSI |
| Gas Connections | 1/4" Male NPT connection |
| Dimensions (LxWxH) | 65mm long |
| Operational Temperature Range | 0 - 121 deg C |
| Power Requirements | none |
| Warranty | 1 Year |
| Country of Origin | USA |
