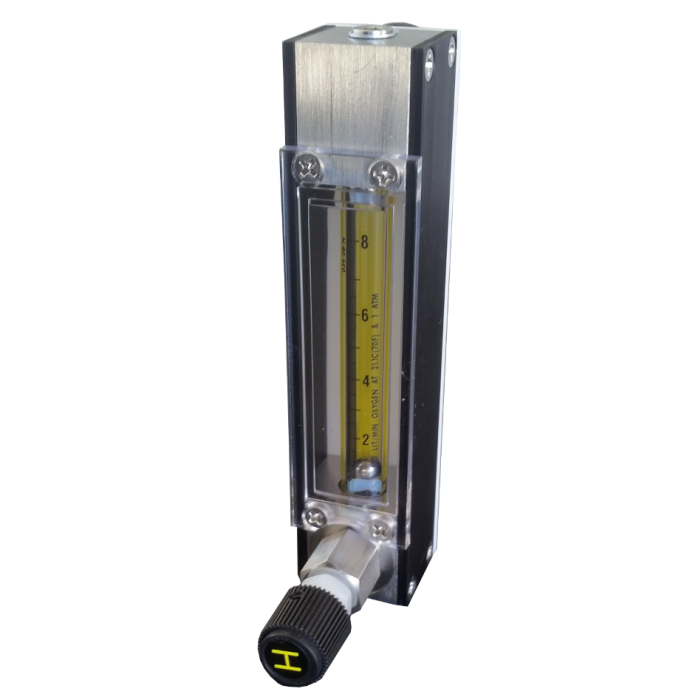

Flowmeter SS 0-4 LPM

Stainless Steel Flowmeter to control and adjust ozone gas flowrates from 0-4 LPM

1 In Stock

0 - 4 LPM Stainless Steel Flowmeter that uses a visual float type reading and has a built in needle valve for high precision control.   This flowmeter is made out of ozone resistant material (stainless steel and Viton o-rings) and therefore is perfect for flow control and to adjust ozone gas flow rates.  The front shield on the unit protects the flow tube but also enhances the reading resolution.

1/4" NPT inlet and outlet connection fittings are located on the back of the unit.

Maximum Operating Pressure is 200 PSI

65 mm size meter

More Information
Manufacturer Oxidation Technologies
Quickbooks Stock Level 1.000000
Call For Price No
Range 0-4 LPM
Nominal Gas Flow Rate 0 - 4 LPM
Operating Pressure 1 - 200 PSI
Max Pressure 200 PSI
Gas Connections 1/4" Male NPT connection
Dimensions (LxWxH) 65mm long
Operational Temperature Range 0 - 121 deg C
Power Requirements none
Lead Time in stock
Warranty 1 Year
Country of Origin USA
