Flowmeter SS 0-40 LPM
Stainless Steel Flowmeter to control and adjust ozone gas flowrates from 0-40 LPM
- SKU
- FMSS-40
Description / Flowmeter SS 0-40 LPM

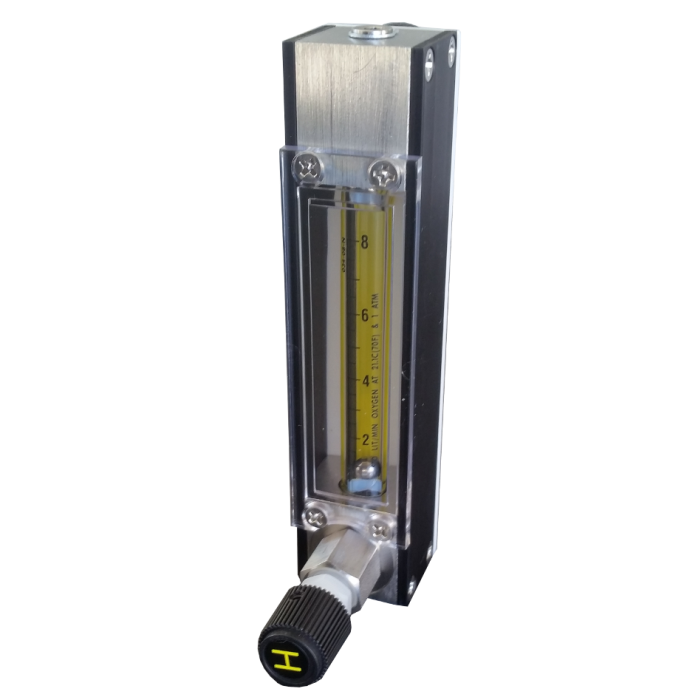

0 - 40 LPM Stainless Steel Flowmeter that uses a visual float type reading and has a built in needle valve for high precision control. This flowmeter is made out of ozone resistant material (stainless steel and Viton o-rings) and therefore is perfect for flow control and to adjust ozone gas flow rates. The front shield on the unit protects the flow tube but also enhances the reading resolution.
1/4" NPT inlet and outlet connection fittings are located on the back of the unit.
Maximum Operating Pressure is 200 PSI
65 mm size meter
More Information
Manufacturer | Oxidation Technologies |
---|---|
Range | 0-40 LPM |
Nominal Gas Flow Rate | 0 - 40 LPM |
Operating Pressure | 1 - 200 PSI |
Max Pressure | 200 PSI |
Gas Connections | 1/4" Male NPT connection |
Dimensions (LxWxH) | 65mm long |
Operational Temperature Range | 0 - 121 deg C |
Power Requirements | none |
Lead Time | 1-2 week lead time |
Warranty | 1 Year |
Country of Origin | USA |
