Flash Reactor 70-NK

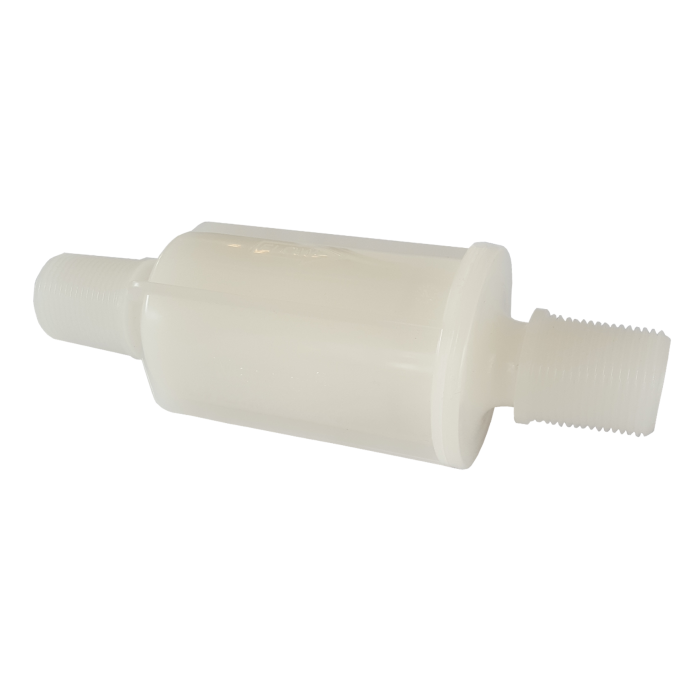

Flash Reactor as mixing chamber for mixing ozone into water. FR-70-NK, for water flows from 5.3 to 7.7 GPM.
Flash Reactors use a 3/4" Male NPT connections for the inlet and outlet. The material is a Natural PVDF for maximum ozone resistance on longevetiry on all ozone systems. For other materials, including stainless steel please contact us.
The Mazzei Flash Reactor is a unique mixing chamber that using re-direction and shearing of ozone and water mixture to ensure rapid dissolution and attainment of ozone gas dissolved inot water. The result is high mass transfer efficiency with minimual contact time.
Flash Reactor Performance:
A flash reactor will operate over a wide range of pressures and water flows. However, each ozone application should be evaluated to ensure the right reactor or injection device is chosen for your specific application. Below is a performance chart for differential pressure (PSI) into water based (GPM).
For questions on how to size the right flash reactor or venturi injector for your specific application call our application engineers. We would be glad to help.
|Quickbooks Stock Level||1.000000|
|Call For Price||No|
|Typical Water Flow||5.3 to 7.7 GPM|
|Thread Size||3/4" Male NPT|
|Max Pressure||10 PSI|
|Material of construction||Black Kynar|
|Lead Time||on hand|
|Dimensions (LxWxH)||6.75-inches long x 2.25-inches diameter|
|Country of Origin||USA|
