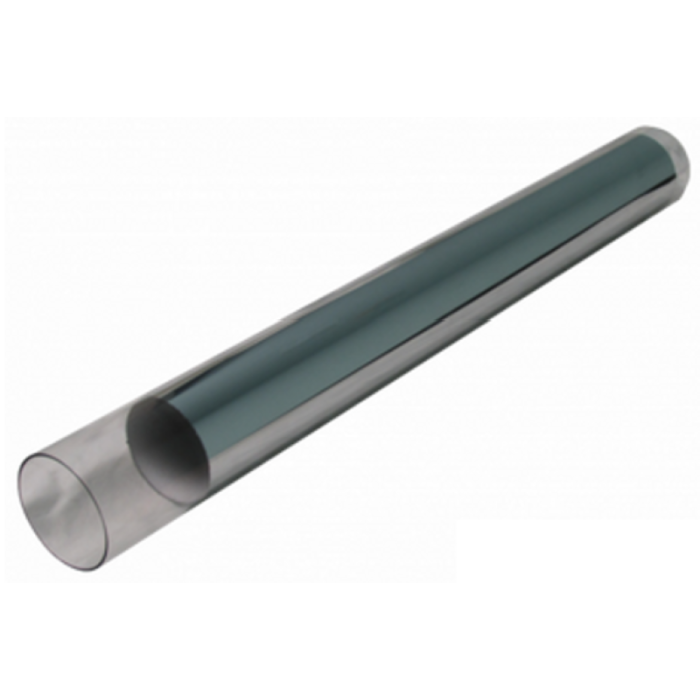

This is the Glass Dielectric for the L-100 Hess Ozone Generator.

2.9” OD (73.66 mm)

51” Long (1295.4mm)

0.09”Wall thickness (2.3 mm)

Rounded bottom, open on one end

Features:

- Dielectric for the L-100

- Fits L-200, L-300, and L-400

- Glass dielectric for Hess Ozone Generator

• Hess Part # 04040

This is a direct replacement for the Hess L-Series ozone generators.  The glass is Duran glass manufactured in the same style as the original Hess Dielectric.

The original dielectric used a spray-on aluminum material as the conductor (anode) on the inside of the tube.  This tended to flake off over time and is not available as a process today.  The dielectrics we supply use a stainless steel foil on the inside as the conductor.  This is more durable and replaceable if necessary.

Ozone generators this fits:

This same dielectric, glass dome, gaskets and brush assembly were used in a variety of ozone generators in the past.  Ozone Generators from Polymetrics, Welsbach, Orec, and potentially others use this same dieletric.

A few specific models we know of this dielectric fits.

• PolyMetrics
  • Polymetrics P-10, PC-10 uses 1 dielectric
  • Polymetrics P-20, PC-20 uses 2 dielectrics
  • Polymetrics P-30, PC-30 uses 3 dielectrics
  • Polymetrics P-40, PC-40 uses 4 dielectrics
  • Polymetrics P-50, PC-50 uses 5 dielectrics
  • Polymetrics P-60, PC-60 uses 6 dielectrics
  • Polymetrics P-20, PC-20 uses 2 dielectrics
  • Polymetrics T-series including T-816
• Welsbach
  • WL series including WL-50-S
