Quad-130

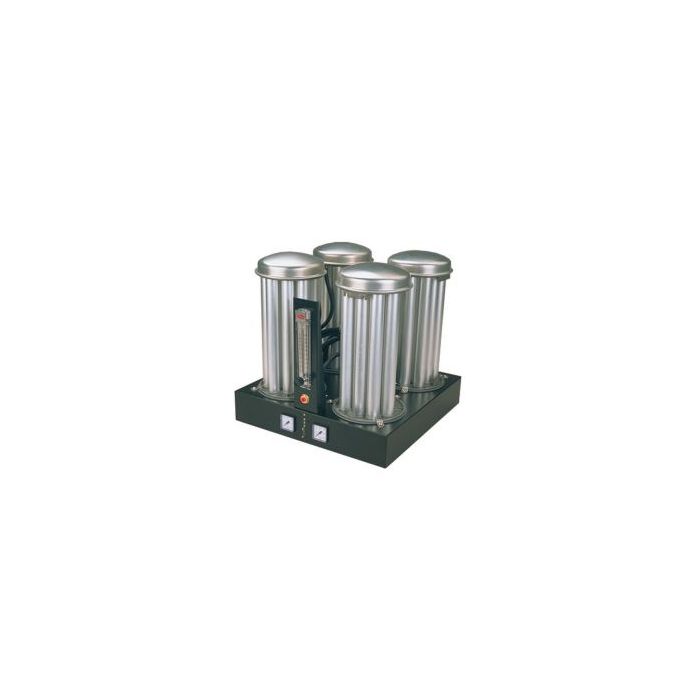

130 SCFH oxygen production at 15 PSI is produced by a Quad-130 oxygen concentrator module.

$11,669.00

Each member of the Quad family utilizes patented Advanced Technology Fractionator® (ATF) modules connected together in a subsystem. When used with oil-less compressed air, Quads deliver high oxygen flows and concentration without high cost. Quads can be matched with dry, oil-less appropriate compressed air sources.

Quad oxygen concentrators offer the same design simplicity as the ATF and build upon it by connecting four modules together to produce four times as much oxygen. As with the ATF, the Quad is easy to install and requires virtually no maintenance. Simply plug in and connect the compressed air source. Quad includes an oxygen concentration monitor, pressure gauges, and a flow meter. To operate, turn the flowmeter to the appropriate oxygen level and receive a smooth, steady supply of oxygen.

Features

Reliable Oxygen Production

Environmentally Tolerant

Oxygen Concentration Monitor

Constant Delivery Pressure

Low Operating Cost

Eliminates Need for External Product Tank

Compact and Lightweight

Product Characteristics

Performance Data:

Product Flow

Oxygen Delivery Pressure



130 SCFH

15 PSI

Product Concentration Up to 95%
Product Dew Point -100°F (-73°C)
Dimensions (DxH)

24 x 21 x 22 inches

61 x 53 x 56 cm

Weight 95 lbs (43 kg)

Physical Connections

Compressed Air Inlet

Product Gas Outlet



3/4" ID Hose

1/4" FNPT

Ambient Operating Conditions

Locate the oxygen concentrator system in a well-ventilated area that is protected from weather elements.

Inside room or enclosure: Temps should remain between 40°F (4°C) and 130°F (54°C)

In storage: Temps should remain between 0°F (-18°C) and 140°F (60°C)

Input Air Requirements

Flow

Pressure



25 SCFM

35 PSI

Control Power Requirements (Single Phase) 120 V ~ ±10%, 60 Hz or 208 – 240 V ~ ±10%, 60 Hz or 220 – 240 V ~ ±10%, 50 Hz
Typical Power Consumption 48 W

Typical Applications

Medical

  • Hospital Systems

Manufacturing

  • Cutting/Brazing/Sodering
  • Glass Work/Blowing
  • Thermal/Chemical Oxidation

Environmental

  • Ozone (Generator) Feed Gas
  • Waste/Water Treatment

What is Pressure Swing Adsorption (PSA)

Clean, dry compressed air is fed into the first molecular sieve bed.  Nitrogen is adsorbed, while oxygen is allowed to flow through.  When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed.  As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere.  Compressed air is once again fed into the first bed, and the process is repeated continuously.  A constant flow of oxygen is reliably produced.

PSA oxygen generator description


Downloads:

Quad Specifications

More Information
Manufacturer Air Sep
Call For Price No
Listing Description 130 SCFH @ 15 PSI
Oxygen Production 101 - 250 SCFH
Internal Compressor No
O2 Delivery PSI 15 PSI
Nominal Gas Flow Rate 130 SCFH
Operating Pressure 15 PSI
Gas Connections 1/4" FNPT
Dimensions (LxWxH) 24" wide x 21" deep x 23" tall
Operational RH Range NA
Operational Temperature Range NA
Power Requirements 120 V ~ ±10%, 60 Hz or 208 – 240 V ~ ±10%, 60 Hz or 220 – 240 V ~ ±10%, 50 Hz
Lead Time In Stock
Warranty 1 Year
Country of Origin USA
Description Requires 25 CFM air @ 35 PSI
