Reliant

17 SCFH oxygen production at 50 PSI is produced by the Reliant oxygen concentrator module.

Call For Price

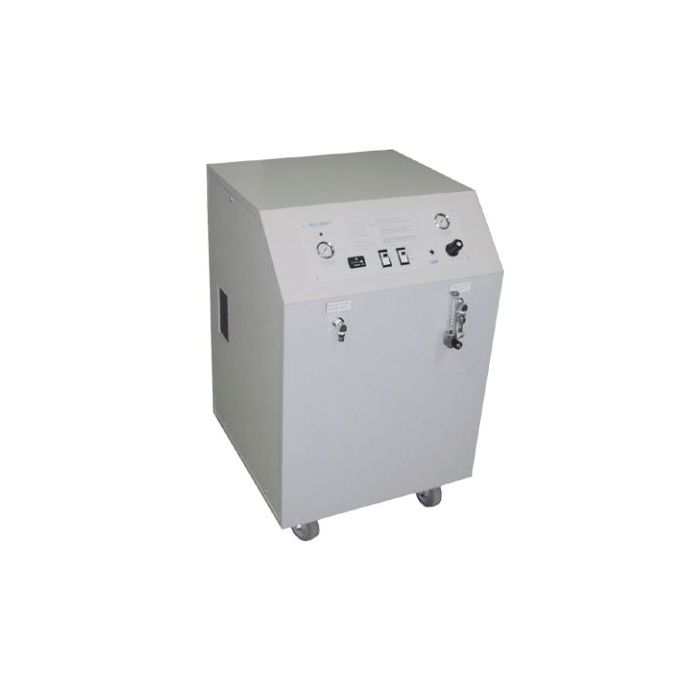

The Reliant is an oxygen concentrator ideal for use in many applications. The Reliant’s ability to deliver up to 95% oxygen concentration at flows of up to 17 SCFH (0.44 Nm3 /hr or 8 LPM) make it a great fit for medical clinics and commercial uses requiring up to 50 psig (345 kPa or 3.45 bar).



Features:

     -Self-Contained

     -Transportable

     -Low Operating Cost

     -Easy to Install and Maintain

     -Oxygen Concentration Monitor and Alarm

     -Microprocessor Controlled

     -Automatic and Unattended Operation



Product Characteristics:

Performance Data:

Product Flow

Oxygen Delivery Pressure



17 SCFH

50 PSI (345 kPa)

Product Concentration Up to 95%
Product Dew Point -100°F (-73°C)

Dimensions (WxDxH)

22.5 x 24.5 x 36.25 inches (57.2 x 62.3 x 92.1 cm)

Weight

175 lbs (79 kg)

Physical Connections

Product Gas Outlet



1/4" FNPT x 1/4 NPSM

Ambient Operating Conditions

Locate the oxygen concentrator system in a well-ventilated area that is protected from weather elements.

Temps should remain between 40°F (4°C) and 112°F (44°C)

Control Power Requirements (Single Phase)

120 V ~ ± 10%, 60 Hz, 6.0 A

220 V ~ ± 10%, 50 Hz, 3.0 A

Sound Level

58 dBA @ 1 meter, open field conditions

Typical Power Consumption

680 W



Typical Applications:

Medical

     -Anesthesia

     -Oxygen Therapy

     -Veterinary Medicine

Environmental

     -Ozone (Generator) Feed Gas

     -Environmental Remediation


Downloads:

Reliant Specifications

Reliant Manual

More Information
Manufacturer Air Sep
Call For Price No
Listing Description 17 SCFH @ 50 PSI
Oxygen Production 17 SCFH
Internal Compressor Yes
O2 Delivery PSI 45+ PSI
Nominal Gas Flow Rate 17 SCFH
Operating Pressure 50 PSI
Gas Connections 1/4" FNPT x 1/4 NPSM
Dimensions (LxWxH) 22.5 x 24.5 x 36.25 inches
Operational RH Range NA
Operational Temperature Range NA
Power Requirements 120V ~ ±10%, 60 Hz, 6.0 A or 220V ~ ±10%, 50 Hz, 3.0 A
Lead Time In Stock
Warranty 1 Year
Country of Origin USA
Description Turnkey unit with built-in compressor
