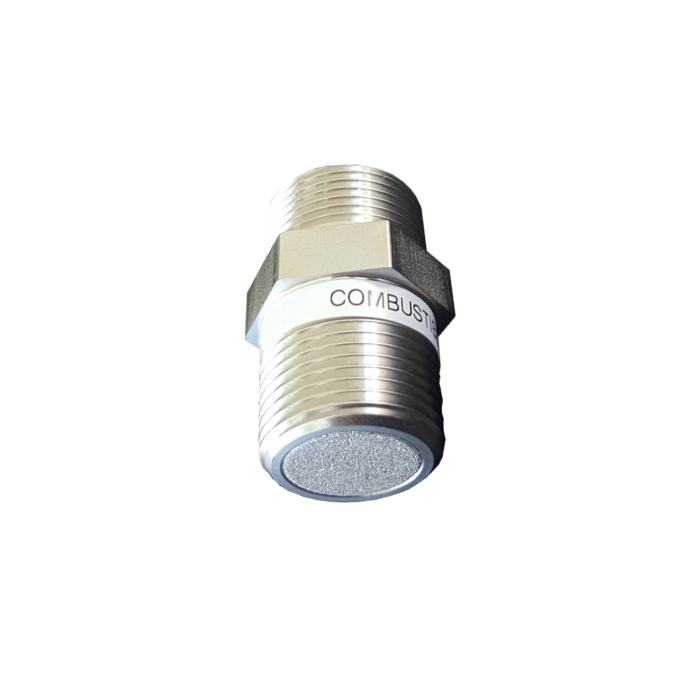

ATI Alcohol Explosion Proof Sensor 00-0730
PN - 00-0730, C10-39 Alcohol sensor. Replacement explosion-proof sensor for ATI A14/A11 or B12 Gas Detectors.
- SKU
- ATI 00-0730
$355.00
Related Products
Description / ATI Alcohol Explosion Proof Sensor 00-0730
Replacement explosion-proof sensor for ATI A14/A11 or B12 Gas Detectors.
Replaces Alcohol sensor, 0- 500 ppm range
Sensor can be installed in existing transmitter and is a simply plug in connection. Sensor must be calibrated on transmitter for proper operation. For information on calibration follow this link, or contact our office.
More Information
| Manufacturer | ATI |
|---|---|
| Call For Price | No |
| Gas | Alcohol |
| Sensor Type | Electrochemical Cell |
| Range | 0- 500 ppm |
| Accuracy | Generally ±5% of value, but limited by available calibration gas accuracy. |
| Standard Range | 0-500 ppm |
| Minimum Range | 0-100 ppm |
| Maximum Range | 0-100 ppm |
| Monitor sensor fits | A14/A11, B12 |
| Sensitivity | 1.0 ppm |
| Operational Temperature Range | -25° to +55°C |
| Operational RH Range | 0-95% non-condensing |
| Warranty | 1 Year |
