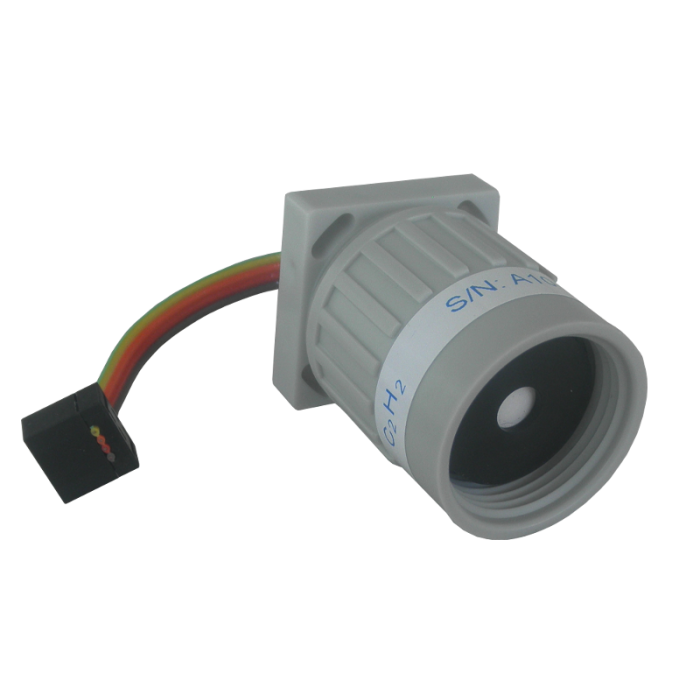

ATI Hydrogen Sensor 00-0134
ATI Hydrogen Sensor 00-0134
PN - 00-0134, A10-18 Hydrogen. Replacement sensor for ATI A14/A11 and B12 Gas Detectors.
Replaces Hydrogen sensor, standard calibration range is 0-4% Hydrogen detection.
- SKU
- ATI 00-0134
$275.00
Related Products
Description / ATI Hydrogen Sensor 00-0134
Replacement sensor for ATI A14/A11 and B12 Gas Detectors.
Replaces Hydrogen sensor, 0-4 % range
Sensor can be installed in existing transmitter and is a simply plug in connection. Sensor must be calibrated on transmitter for proper operation. For information on calibration follow this link, or contact our office.
More Information
| Manufacturer | ATI |
|---|---|
| Gas | Hydrogen (H2) |
| Sensor Type | Electrochemical Cell |
| Range | 0-4 % |
| Accuracy | Generally ±5% of value, but limited by available calibration gas accuracy. |
| Standard Range | 0-4 % |
| Minimum Range | 0-1 % |
| Maximum Range | 0-5 % |
| Monitor sensor fits | A14/A11, B12 |
| Sensitivity | 0.1 % |
| Operational Temperature Range | -25° to +55°C |
| Operational RH Range | 0-95% non-condensing |
| Warranty | 1 Year |
