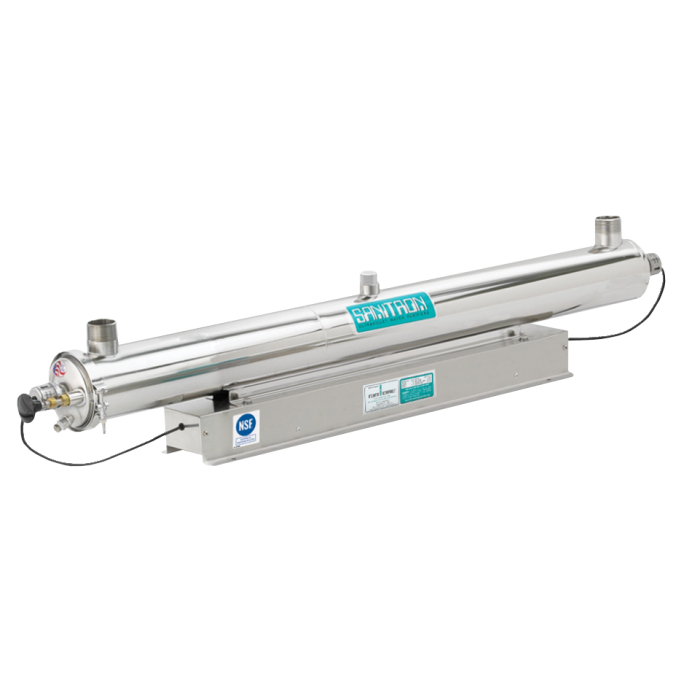

S50C Ultraviolet System
Why Use UV?
Ultraviolet radiation is lethal to virtually all bacteria, viruses, and fungi. This short wave radiation produced by germicidal ultraviolet lamps can quickly destroy these harmful substances and microorganisms in water. Because no chemicals are added, there is no danger of overdosing or contaminating the water through this process. No unwanted tastes or scents are present after purification and the water is ready for use immediately after it leaves the purifier.
To learn more about UV light as a cleaning solution and how it interacts with ozone, click here.
How does it work?
1. Water enters one end of the purifier and flows through the space between the quartz-sleeved germicidal ultraviolet lamp and the chamber wall.
2. A wiper system stirs the water to guarantee that the microorganisms within are evenly exposed to ultraviolet rays.
3. The exits from the other end of the purifier ready for use.
A translucent sight port allows you to verify that the germicidal lamp is operating correctly. When running, its glow will be visible through the port.
Maintenance & Installation
In the event that your Sanitron system requires maintenance or the replacement of key components, they are designed to disassemble completely without the use of special tools or fixtures. The end caps are specially designed so that they can be removed by hand and new lamps or sleeves can be installed in a matter of minutes. It is recommended that the lamp be replaced after 10,000 hours of operation (about 14 months of continuous use). A dual-action assembly allows periodic cleaning of the sleeve without the need to disassemble the product or interrupt its operation.
Germicidal Lamp Details
Approximately 95% of the ultraviolet energy emitted from the germicidal lamps is at 254 nanometers, the region of germicidal effectiveness most destructive to bacteria, mold, and virus.
Caution: Exposure to direct or reflected germicidal ultraviolet rays will cause painful irritation to the eyes and reddening of the skin. Those who may be subject to this exposure should wear a suitable face shield, gloves, and protective clothing.
|Model||Lamp||Nominal Lamp Length||Power Consumption||Ultraviolet Output||Rated Effective Life|
|S17A||05-1098-R||11 7/8" (302mm)||14 Watts||4.0 Watts||10,000 Hrs|
|S23A||05-1097-R||17 3/4" (451mm)||21 Watts||7.3 Watts||10,000 Hrs|
|S37C||05-1343-R||33 7/8" (860mm)||41 Watts||15.0 Watts||10,000 Hrs|
|S50C||05-1334-R||45 7/8" (1165mm)||55 Watts||21.0 Watts||10,000 Hrs|
|S2400C||05-1311-R||46 1/4" (1175mm)||110 Watts||48.0 Watts||10,000 Hrs|
Sanitron UV Water purifiers can be used in a wide variety of settings. Here are some examples:
|Laboratories||Labor & Delivery Areas||Universities|
|Clinics||Kidney Dialysis Labs||Veterinary Clinics|
|Maternity Areas||Nursing Homes|
|Resorts, Hotels,& Motels||Water Park||Fountain Water Feature|
|Ships, Yachts, Boats||Amusement Parks||Ornamental Ponds|
|Campgrounds||Golf Course Water Holes||Fish Ponds|
|Apartment Complexes||Villages, Towns, Cities||Fish Farms|
|Condominium Complexes||Farms & Ranches||Mollusk Hatcheries|
|Trailer Parks||Animal Husbandry||Water Preserves|
|Rural Water||Aquariums||Well Water|
|Pharmaceutical Mfg.||Water Vending Machines||Edible Oils|
|Electronic Production||Laundry Water||Liquid Sugar|
|Cosmetic Production||Pure Wast Water||Sweeteners|
|Cooling Tower||Bottled Water||Water-Based Lubricants|
|Power Generation||Beer, Wine||Dairy Processing|
|Food Industry||Soft Drinks||Cistern Applications|
|Ice Makers||Fruit Juices||Pulp & Paper Production|
|TOC Reduction||Ozone Reduction|
The 254 nm frequency used in germicidal lamps is destructive to ozone and can be used to safely revert ozone back to oxygen in water. These UV lights will provide 90-95% ozone destruction in water, however, the rated flow-rate for ozone destruction is x3 times lower than for germicidal use. Flow rate capacities listed for each UV light are shown for germicidal use; divide these by 3 to calculate proper dosage rate for ozone destruction in water.
At the 185 nm frequency, ultraviolet lamps can be used to generate ozone in a gas stream. In an ozone generator, a UV lamp can be used to produce ozone from the oxygen in air. While ultraviolet light does not produce very high concentrations of ozone, it can be a valuable option when lower concentrations of ozone are necessary.
To learn more about how UV light interacts with ozone, click here.
More Sanitron UV Systems
|Call For Price||No|
|Max Pressure||100 psi|
|Dimensions||L 52.4" x 5.7" x Height: 9.5"|
