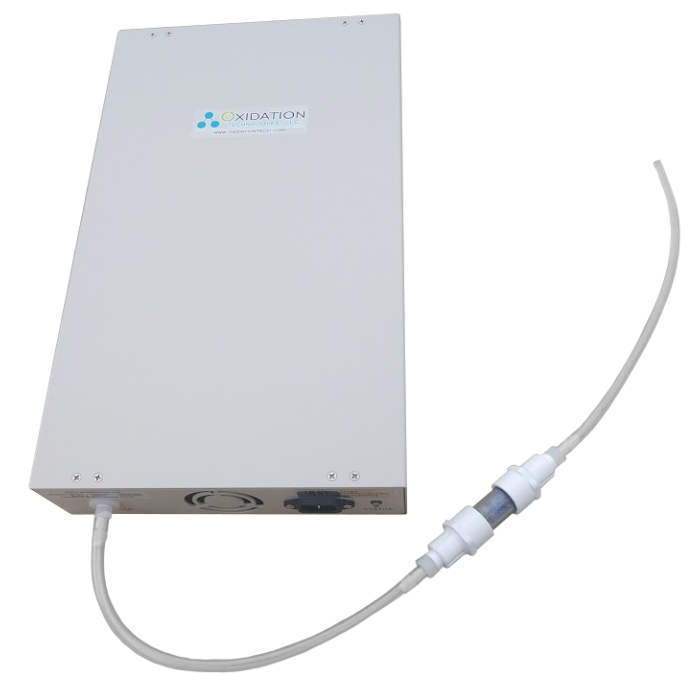

VMD-8 Air Dryer
This model has now been updated to the VMD-12 Air Dryer
The VMD-8 Vacuum Driven Air Dryer is a wall mountable air dryer intended for use with an ozone generator and venturi injector for simple water treatment systems. Heat Regenerative Air Dryer capable of air flows up to 8 LPM.
- SKU
- VMD-08
- Material of construction
- Stainless Steel
Related Products
12" Double Glass Electrode
12" Double Glass Electrode with HeatSinks
12" Electrode
Kynar Head for Electrode Housing
Viton "O" Ring for Electrode Housing
Viton "O" Ring for Electrodes
Moisture Indicator - Panel Mount
Moisture Indicator - In-Line Mount
6" Double Glass Electrode
VMD-08 Complete Heater Cylinder
VMD-08 Desiccant Refill Kit
VMUS-4
1KNT
Description / VMD-8 Air Dryer
VMD-8 Air Dryer provides 8 LPM Dry Air for ozone generation. Heat Regenerative, vacuum driven air dryer designed for use with venturi injector and ozone generator to produce ozone.
Will provice air dried to -40-deg-F dew point for efficient ozone generation. Using an air dryer with your ozone generator will produce more ozone, more efficiently, and prevent impurities and costly down-time.
Ships with moisture indicator and short length of poly tubing. Air desiccant is included and is ready for use upon delivery.
The VMD-08 conforms to CSA C22-2 No. 61010-1 and UL 61010-1.
Key Features:
-8 LPM Dry Air
-Wall mountable
-Compact size
-Reliable design, no major moving parts
-Easy to use and maintain
Optional Enclosure:
The NEMA 4 enclosure option provides protection of the VMUS-4 ozone generator in hostile and wet environments. The clear cover allows for easy monitoring of display on the ozone generator or dryer. A fan draws cooling air through a slash-resistant vent and filter in the bottom and blows out a splash-resistant vent and filter on the side. Cord grips seal around the feed gas and ozone tube connections. The VMUS-4 can be easily removed for service. An internal outlet is used to power the fan and the ozone generator. Fan is on continuously when the unit is powered.
| Material | Polycarbonate |
| Composition | Non-Metallic |
| Number of Doors | 1 |
| Cover Design | Hinged |
| Window/Clear Cover | Yes |
| Latching Mechanism | Latch |
| NEMA Rating | NEMA 4 |
| H x W x D | 21 x 17x x8 |
| Weight | 10 lbs |
Specifications:
| Air Flow | 8 LPM Max |
| Max Temp | 95-deg F |
| Max Humidity | 85% RH |
| Voltage | 100-120 VAC 50/50 Hz |
| Power Consumption | 125 watts |
| Dimensions | 15" high x 8.7" wide x 3.2" deep |
| Warranty | 3-year |
You can purchase replacement/maintenace parts for your VMD-8 Air Dryer here.
Downloads:
More Information
| Manufacturer | Azco |
|---|---|
| Quickbooks Stock Level | -1.000000 |
| Unit Features | - Vacuum Driven Air Dryer - Air flows up to 8 LPM |
| Range | Up to 8 LPM |
| Material of construction | Stainless Steel |
| Flow Rates | Air flows up to 8 LPM |
| Gas Connections | NA |
| Warranty | 1 Year |
