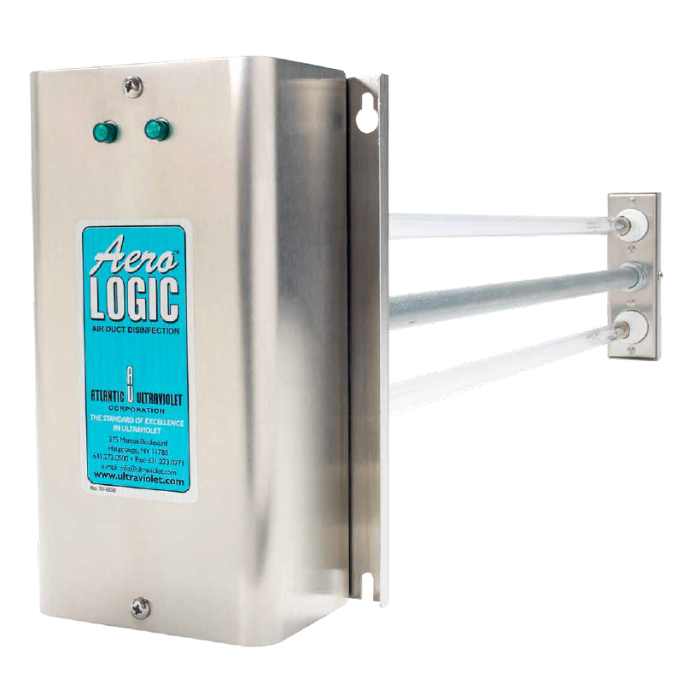

Aero AD-Series
UV ozone generators designed to duct-mounted in HVAC systems.Ā Available in 1 or 2 lamp versions with lamp lengths from 12" - 48" to fit a wide variety of applications.
Ā
Using a 185 nm wavelength lamp ozone is produced from the UV lamps. Ā Also available in 254 nm wavelength for line-of-site germicidal applications.
AeroLogicĀ® UV ozone generators equipped with the 185 nm wavelength UV lamps will produce ozone in an HVAC system to be distributed evenly throughout a building or space. The AD-series is available with either 1 or 2 lamps with lamp lengths from 12ā - 48ā to fit a wide variety of applications. Greater number of lamps and greater lamp lengths will produce more ozone from the lamp. Ozone production will also be higher with higher aiflows, and lower with lower airflows.
These units can also be equipped with the 254 nm wavelength germicidal bulbs tuned specifically to inactivate pathogens with low to no ozone pro
AeroLogicĀ® is primarily used for installation in new and existing HVAC (Heating, Ventilating & Air Conditioning) systems. The air that passes over the installed AeroLogicĀ® is subjected to the rays from the ultraviolet lamp (or lamps). These UV rays produce ozone to destroy airborne microbes including bacteria, mold, and virus.
The AeroLogicĀ® Air Duct installation presents centralized and non-intrusive applications that are useful on their own or in conjunction with additional air circulation and filtration technologies. When used together, these systems provide high level protection solutions.
The AeroLogicĀ® design has been carefully conceived to provide adequate germicidal dosage for air stream or surface disinfection. The dosage, as it applies to ultraviolet disinfection, is a function of time, and the intensity, of ultraviolet radiation, to which the air stream or surface is exposed.
Our ozone application experts would be happy to perform the necessary calculations to ensure the model we provide is appropriate for your particular application.
Advantages
Safe ā Low risk of over-exposure to ozone
Economical - System requires very little power to operate, no major maintenance.
Fast- Disinfects air in seconds, ozone reacts quickly and reverts safely back to oxygen.
Easy- Simple installation and maintenance.
Automatic ā Continuous disinfection without operation of a portable ozone generator
Durable ā Polished Stainless Steel and Aluminum. Long lasting design, high quality construction.
Specifications
Model: |
Lamp Power (watts) |
Total UV Output |
Lamp length in Duct |
Housing dimensions |
AD12-1 | 11.0 watts | 3.1 watts | 10.75" | 8" L x 5.6" W x 2.9" D |
AD18-1 | 18.4 watts | 5.8 watts | 16.75" | 8" L x 5.6" W x 2.9" D |
AD24-1 | 25.6 watts | 8.5 watts | 22.75" | 8" L x 5.6" W x 2.9" D |
AD30-1 | 25.6 watts | 11.2 watts | 28.75" | 8" L x 5.6" W x 2.9" D |
AD36-1 | 41.0 watts | 15.0 watts | 34.75" | 8" L x 5.6" W x 2.9" D |
AD48-1 | 55.0 watts | 21.0 watts | 46.75" | 8" L x 5.6" W x 2.9" D |
2-Lamp Models
|
||||
AD12-2 | 22.0 watts | 6.2 watts | 10.75" | 8" L x 5.6" W x 2.9" D |
AD18-2 | 36.8 watts | 11.6 watts | 16.75" | 8" L x 5.6" W x 2.9" D |
AD24-2 | 51.2 watts | 17.0 watts | 22.75" | 8" L x 5.6" W x 2.9" D |
AD30-2 | 64.0 watts | 22.4 watts | 28.75" | 8" L x 5.6" W x 2.9" D |
AD36-2 | 82.0 watts | 30.0 watts | 34.75" | 8" L x 5.6" W x 2.9" D |
AD48-2 |
110 watts | 42.0 watts | 46.75" | 8" L x 5.6" W x 2.9" D |
Features
Installation
The Aerologic UV ozone generator is primarily used in new and existing HVAC systems. The lamps are installed perpendicular to airflow inside the ductwork. Brackets are supplied with each unit to allow for a variety of mounting positions. The device can be mounted completely inside the duct, or with the power supply outside the duct. The lamps are installed perpendicular to airflow

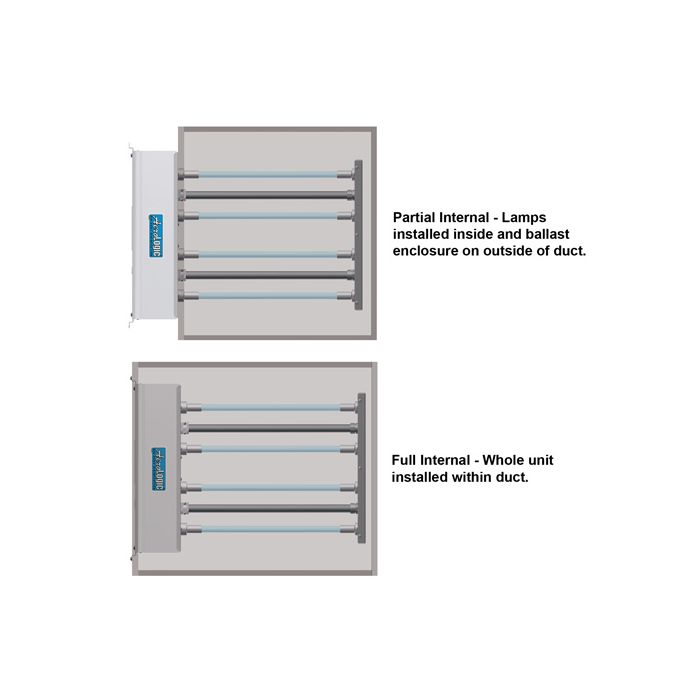

Full internal vs Partial internal mounting examples

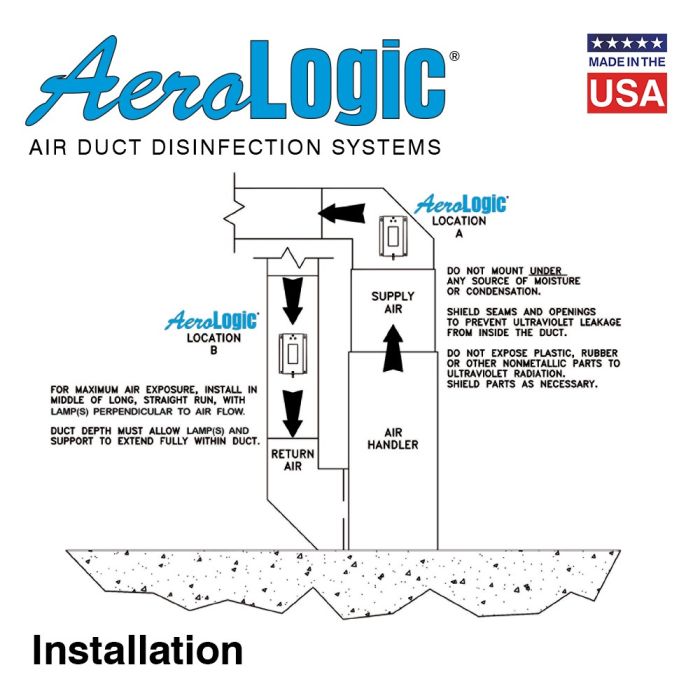

Air-flow in HVAC system examples
Site Glass:
Optional Lamp indicator:
The Monozone ozone generator can be equipped with the optional UV lamp indicator. This indicator can be mounted on the ozone generator, or remotely to indicate the operation of the lamps without the need for visual indication.
Dimensions

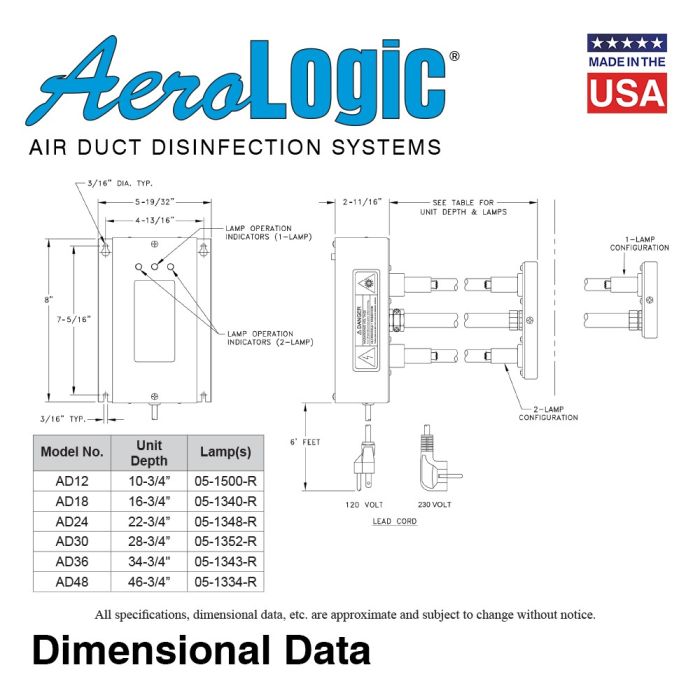

Dimensions of the Aerologic UV ozone generator versions shown in image below:
Call For Price | No |
---|---|
Ozone Output | Based on number of lamps, lamp length, and airflow |
Feed Gas | Ambient Air |
Manufacturer | Misc |
Cooling Method | Air Cooled |
Corona Cell | UV Lamp |
Dimensions (LxWxH) | 16-13/16" tall x 8-1/8" wide x 4-7/16" deep (housing dimensions) |
Operational Temperature Range | 30 - 110 deg F |
Max O3 % | Below 3% |
Power Requirements | 120 VAC, 220 VAC, or 24 VDC depending upon model |
Lead Time | 2-weeks |
Warranty | 1 Year |
Country of Origin | USA |
Description | Duct-mount UV ozone generator |
