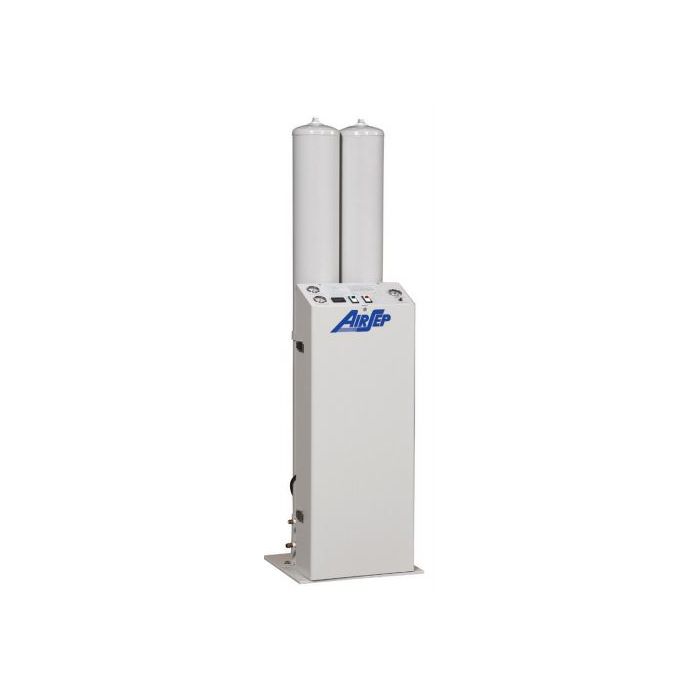

AS-B

AS-B Oxygen Generator will produce 45-55 SCFH oxygen at 93% purity at 45-55 PSI of pressure.

$5,543.00

AS-B Oxygen Generator is an industrial oxygen concentrator great for continuous oxygen production.  AirSep Alpha-Series Oxygen Generators produce from 20 to 5,000 cubic feet of oxygen per hour at up to 95.5% oxygen concentration. When electricity and a source of compressed air is supplied, these dependable machines can provide oxygen for any application. This compressed air is separated by Pressure Swing Adsorption (PSA).

Features

Independent Compressed Air Source

Microprocessor Controlled

Low-Operating Cost

Automatic and Unattended Operation

Easy to Install and Maintain

Product Characteristics

Product Flow 45-55 SCFH
Product Pressure 45-55 PSI
Product Concentration 93%
Product Dew Point -100°F (-73°C)
Dimensions (W x D x H) 17 x 15 x 58 in (43 x 38 x 147 cm)
Weight 246 lbs (112 kg)

Physical Connections

Compressed Air Inlet

Product Gas Outlet



1/4" FNPT

1/4" FNPT

Ambient Operating Conditions

Put Oxygen Generator in well-ventilated area that is protected from weather elements.

Temperature should remain between 40°F - 104°F (4°C - 40°C)

Feed Air Requirements

Clean and Dry “Plant Air” (Class 5.6.5 per ISO 8573.1)

Pressure: 90 psig (621 kPa) minimum

Temperature: 122°F (50°C) maximum

Control Power Requirements 120 V ~ ±10%, 50/60 Hz, 1.0 A or 220 V ~ ±10%, 50/60 Hz, 0.5 A

Typical Applications

Manufacturing

  • Cutting/Brazing/Sodering
  • Thermal/Chemical Oxidation

Medical

  • Hospital Systems

Environmental

  • Ozone (Generator) Feed Gas
  • Environmental Remediation
  • Waste/Water Treatment

Glass

  • Glass Work/Manufacturing/Blowing

Additional

  • Fish Farming

What is Pressure Swing Adsorption (PSA)

Clean, dry compressed air is fed into the first molecular sieve bed.  Nitrogen is adsorbed, while oxygen is allowed to flow through.  When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed.  As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere.  Compressed air is once again fed into the first bed, and the process is repeated continuously.  A constant flow of oxygen is reliably produced.

Oxygen generator PSA



Oxygen Purity Switch:



Optional oxygen purity switch can be added to the oxygen concentrator as an alarm. Simple oxygen purity monitoring. Provides relay contacts to alert of potential problems in your oxygen generation systemMax Flow Rate: 12 SCFH and Max Operating Pressure: 30 PSI.

Features

  • Powered and wired into oxygen generator

  • Oxygen plumbed through unit, no oxygen losses

  • Reliable ultrasonic sensor technology

  • Dual DPDT relay outputs, alarms triggered at > 85% O2 and > 75% O2 respectively.

  • Relay alarm for low oxygen purity

  • Analog or digital output

  • Optional LCD display

  • Optional remote monitoring

  • Optional visual strobe light

  • Optional audible alarm



Oxygen Purity Meter:

OXM-100H

Optional oxygen purity switch can be added to the oxygen concentrator as an alarm. Simple oxygen purity monitoring. Provides relay contacts to alert of potential problems in your oxygen generation system. Max Flow Rate: 127 SCFH and Max Operating Pressure: 100 PSI.

Features

  • Powered and wired into oxygen generator

  • Oxygen plumbed through unit, no oxygen losses

  • Reliable ultrasonic sensor technology

  • Dual DPDT relay outputs, alarms triggered at > 85% O2 and > 75% O2 respectively.

  • Integrated LCD display

  • Relay alarm for low oxygen purity

  • Analog or digital output

  • Optional remote monitoring

  • Optional visual strobe light

  • Optional audible alarm



You can purchase replacement/maintenace parts for your AS-B here.



Downloads:

AS-B User Manual

AS-B Specifications

More Information
Manufacturer Air Sep
Call For Price Yes
Listing Description 45-55 SCFH @ 45-55 PSI
Oxygen Production 25 - 100 SCFH
Internal Compressor No
O2 Delivery PSI 45+ PSI
Nominal Gas Flow Rate 45-55 SCFH
Operating Pressure 45-55 PSI
Gas Connections 1/4" Female NPT
Dimensions 17" wide x 15" deep x 58" tall
Operational RH Range 0-85% humidity
Operational Temperature Range 40 - 104-deg F
Power Requirements 120 V ~ ±10%, 50/60 Hz, 1.0 A or 220 V ~ ±10%, 50/60 Hz, 0.5 A
Lead Time 2-weeks
Warranty 1 Year
Country of Origin USA
Description Requires 14 CFM air @ 90 PSI
