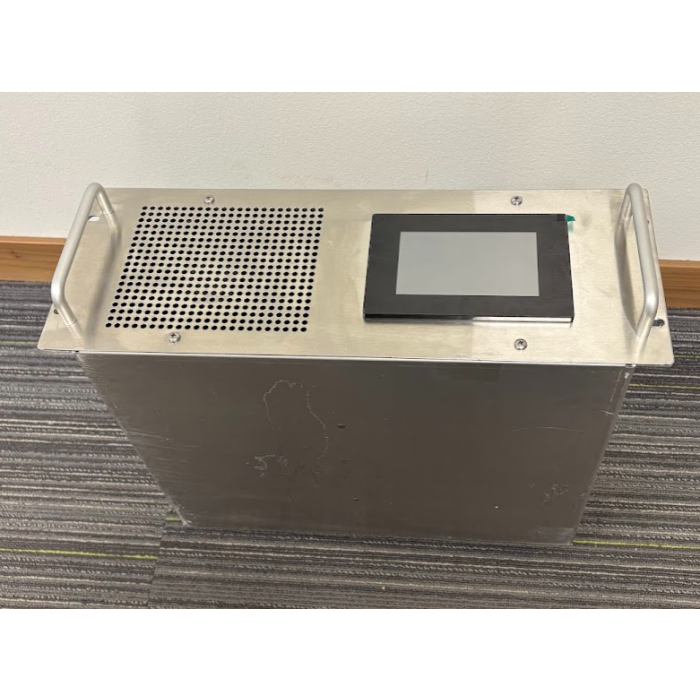

The ATL-30 Ozone Generator is an air-cooled ozone generator designed to produce 30 g/hr ozone from only 4 LPM of oxygen.  This extremely efficient ozone generator is great for water treatment due to the high ozone concentration.

When high ozone concentrations are required for high dissolved ozone levels the ATL-30 is a great option.  No other air-cooled ozone generator on the market can provide as high of ozone concentrations as the ATL-30 Ozone Generator.

Features:

     -Low oxygen requirements for ozone generation, very efficient

     -High-pressure cell produces ozone under pressures up to 100 PSI

     -Variable ozone output with onboard dial, or remote control options

     -Remote control safety shut-off

     -Low operating costs with low power requirements and oxygen requirements

     -Stainless steel enclosure

     -Optional bench mount or rack mount enclosures to best fit your application

Materials of Constructions:

     -Enclosure: Brushed Stainless Steel/Aluminum

     -High Precision Machined Ozone Generator Cell tested at up to 150 PSIG for leaks

     -O3/O2 Gas Tubing: PTFE/304 Stainless Steel/Brass

Ozone Generator Performance Chart:

5.05 g/hr @ 14.7% by weight from 0.4 LPM O2 flow

11.2 g/hr @ 13% by weight from 1.0 LPM O2 flow

19.9 g/hr @ 11.6% by weight from 2.0 LPM O2 flow

27.4 g/hr @ 10.6% by weight from 3.0 LPM O2 flow

33.2 g/hr @ 9.6% by weight from 4.0 LPM O2 flow

36.5 g/hr @ 8.5% by weight from 5.0 LPM O2 flow

Common Applications:

     -Water Treatment

     -Groundwater Remediation

     -Bottled water

     -Aquaculture

     -Cooling Tower

     -Grain Treatment

     -Odor Removal

     -Wastewater Treatment

     -Pharmaceutical

     -Food Processing

Downloads:

ATL Series Brochure

ATL Series Manual

ATL-30 New LCD Display
