ATL-30
Very efficient ozone generator produces 30 g/hr ozone from only 4 LPM Oxygen.
Ozone Concentrations up to 15% by weight.
Perfect ozone generator for lab applications where high concentrations of ozone are required, and any water treatment application with ozone due to the high solubility rate of ozone at high concentrations.
Rental Option HERE
- SKU
- ATL-30
Related Products
Description / ATL-30
The ATL-30 Ozone Generator is an air-cooled ozone generator designed to produce 30 g/hr ozone from only 4 LPM of oxygen. This extremely efficient ozone generator is great for water treatment due to the high ozone concentration.
When high ozone concentrations are required for high dissolved ozone levels the ATL-30 is a great option. No other air-cooled ozone generator on the market can provide as high of ozone concentrations as the ATL-30 Ozone Generator.
Features:
-Low oxygen requirements for ozone generation, very efficient
-High-pressure cell produces ozone under pressures up to 100 PSI
-Variable ozone output with onboard dial, or remote control options
-Remote control safety shut-off
-Low operating costs with low power requirements and oxygen requirements
-Stainless steel enclosure
-Optional bench mount or rack mount enclosures to best fit your application
Materials of Constructions:
-Enclosure: Brushed Stainless Steel/Aluminum
-High Precision Machined Ozone Generator Cell tested at up to 150 PSIG for leaks
-O3/O2 Gas Tubing: PTFE/304 Stainless Steel/Brass
Ozone Generator Performance Chart:
5.05 g/hr @ 14.7% by weight from 0.4 LPM O2 flow
11.2 g/hr @ 13% by weight from 1.0 LPM O2 flow
19.9 g/hr @ 11.6% by weight from 2.0 LPM O2 flow
27.4 g/hr @ 10.6% by weight from 3.0 LPM O2 flow
33.2 g/hr @ 9.6% by weight from 4.0 LPM O2 flow
36.5 g/hr @ 8.5% by weight from 5.0 LPM O2 flow
Common Applications:
-Water Treatment
-Groundwater Remediation
-Bottled water
-Aquaculture
-Cooling Tower
-Grain Treatment
-Odor Removal
-Wastewater Treatment
-Pharmaceutical
-Food Processing
Downloads:

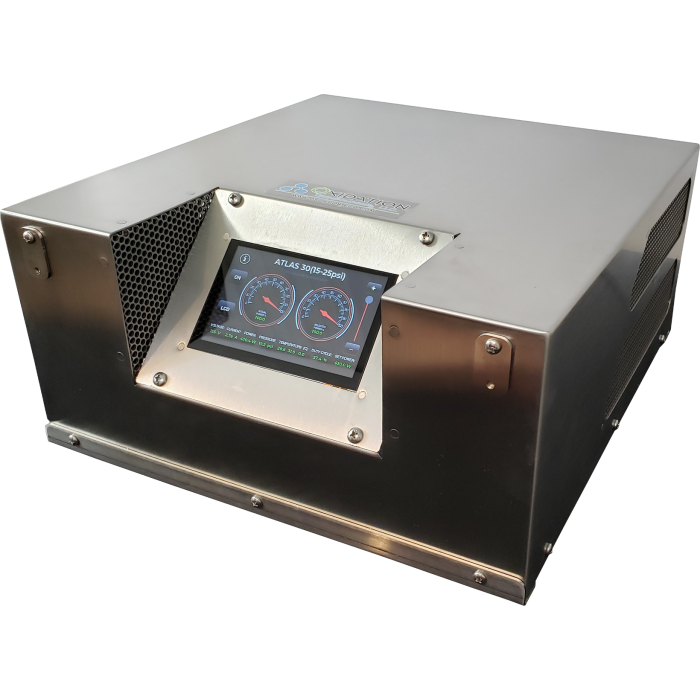

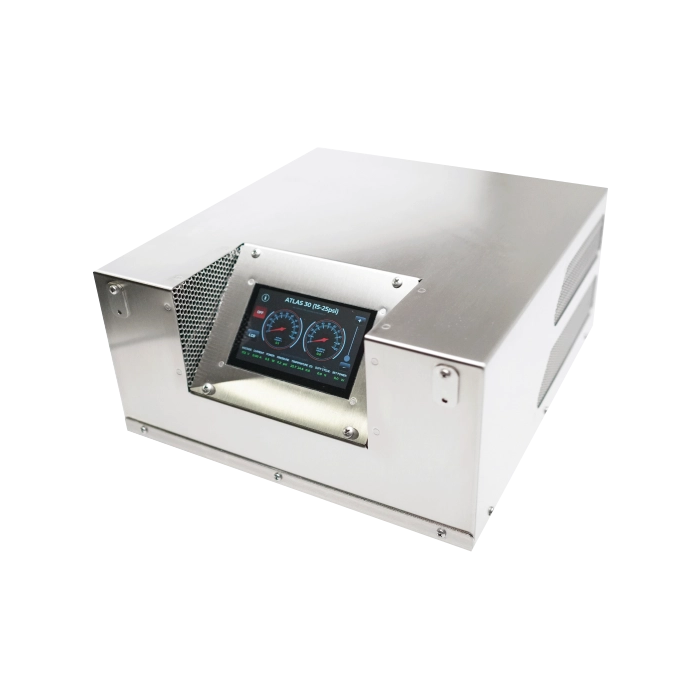

ATL-30 New LCD Display
More Information
| Quickbooks Stock Level | 0.000000 |
|---|---|
| Quickbooks Stock Date Expected | 2024-10-07 00:00:00 |
| Feed Gas | Oxygen |
| Nominal Gas Flow Rate | 4 LPM oxygen flow to produce 30 g/hr ozone. Higher flows produce more ozone. |
| Operating Pressure | 20 - 50 PSI nominal (higher pressure units available) |
| Max Pressure | 50 PSI standard, up to 100 PSI optional |
| Manufacturer | Absolute Ozone |
| Cooling Method | Air Cooled |
| Corona Cell | Aluminum , Ceramic Plate |
| Gas Connections | 1/4" compression fittings |
| Dimensions (LxWxH) | 7" x 19" x 14" |
| Operational Temperature Range | 35 - 95-deg F |
| Max O3 % | 10% + |
| Power Requirements | 120 VAC 8-amp 50/60 Hz. (220 VAC 6-amp 50/60Hz power optional) |
| Lead Time | 2-Weeks |
| Warranty | 5 Year |
| Country of Origin | Canada |
| Description | Enclosure Dimensions: 14-inch height x 19-inch width x 7-inch depth Generator Weight: 32 lbs. Shipping Weight: 38 lbs Shipping Dimensions: 19-inch x 24-inch x 11-inch |
| Ozone Output | 30 g/hr ozone from 4 LPM oxygen @ 15% by weight |
| Unit Features | - Great for odor removal, grain treatment, aquaculture and more - Ozone output with onboard dial - High pressure cell produces ozone under pressures up to 100 PSI - Oxidation Technologies can be repair and uprade these in-house |
