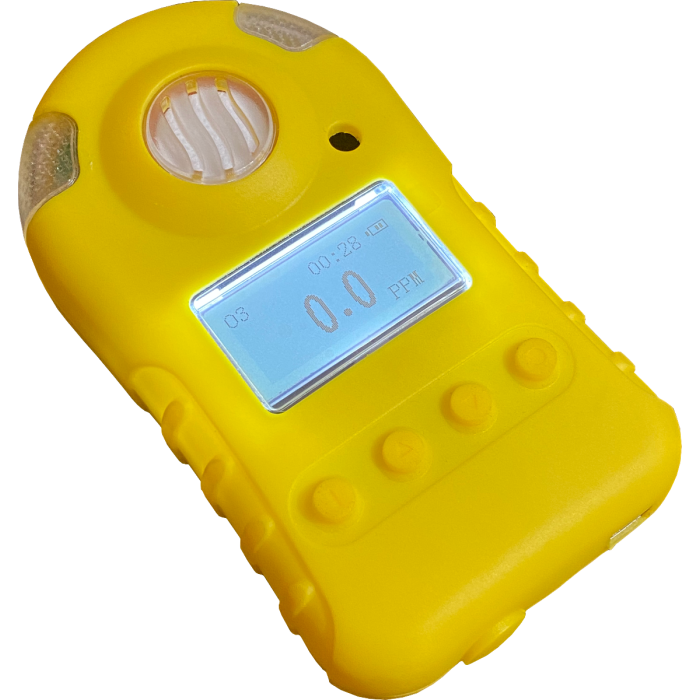

BH-90 Portable Ozone Detector
The BH-90 Portable Ozone Detector can make continuous detection of ozone gas. This high-quality sensor makes detection from natural diffusion, and has great sensitivity. The simple display makes the BH-90 incredibly easy to operate and the shell uses high strength material and anti-slip rubber, creating a detector that is water-proof and dust-proof.
This sensor has a range of 0-10ppm and a resolution of 0.1ppm.
No longer available - See BH-90A as alternative!
- SKU
- BH-90
Related Products
Description / BH-90 Portable Ozone Detector
The BH-90 Portable Ozone Detector is the perfect fit for discovering ozone leaks in a variety of applications. Although this detector’s 0-10 ppm (and resolution of 0.1ppm) measuring may not be the most suitable product for use on a personal level, it is a great fit for Ozone detection on a larger scale (whether that be with pipelines, mining tunnels, power plants, etc.). The BH-90 brings peace of mind by ensuring that your employees or fellow co-workers are not going to be in danger while on the job. The rugged anti-slip rubber makes the BH-90 a dust-proof and slip-proof detector that you know will last the 2-year lifespan it promises. With an easy-to-read display screen, and a simple four button layout, this portable detector was designed to bring you maximized simplicity and absolute usability. If you’re looking for an economically savvy Ozone detector that won’t quit on you, the BH-90 Portable Ozone Detector is a great fit. The BH-90 comes with a cord and wall-port for easy charging.
Calibration:
Your Bosean sensor will need to be sent back to us to be calibrated. Please click here to see more information on our calibration services, as well as our calibration pricing. Contact Us Today to get your sensor calibrated. *Please Note: There may be additional costs depending on replacement sensor pricing.
Key Features:
- Adjustable low and high alarm level
- Low battery indication
- Self-adjustment function
- Visual and audible alarm with vibration
|
Accuracy |
≦ 5% Full Scale |
|
Response time |
T＜30s |
|
Indication |
LCD indicates the time and state Indication of alarm, fault and low voltage with LED, sound, vibration |
|
Operating Environment |
Operating temperature -40℃～70℃ (for combustible gas) Operating temperature: -20℃～50℃ (for toxic gas) |
|
Humidity |
＜95%RH non-condensing |
|
Operating voltage |
DC3.6V Li battery 1200mAh |
|
Working time |
≧8h continuously |
|
Charging time |
4h～6h |
|
Sensor life |
2 years |
|
Protection category |
IP65 |
|
Weight |
about 130g (including battery but without accessories) |
|
Dimension |
100mm×58mm×30mm |
Specifications:
| Model | Range | L-Alarm | H-Alarm |
| O3 | 0-10ppm | 5ppm | 10ppm |
Downloadable Content:
More Information
| Manufacturer | Bosean |
|---|---|
| Gas | Ozone (O3) |
| Resolution | 0.1 ppm |
| Response Time | T＜30s |
| Sampling Method | Fan |
| Alarms | Low: 5 ppm - High: 10 ppm |
| Field Replaceable Battery | Yes |
| Warranty | 1 Year |
| Audible Alarm | Yes |
| Calibration | Annually |
| Sensor Life | 2 Years |
| Range | 0-20 or 0-1 ppm |
| Unit Features | -Cost Effective -Dust Proof -Three Alarm Methods -Built-In Flashlight |
| Sensor Range | 0-1 ppm 0-20 ppm |
