UV Ozone Analyzer

UV Absorption based ozone analyzers offer a high accuracy ozone measurement over a broader range available with other technologies while improving overall reliability.

UV Low Range Ozone Analyzers

Product	Sensor Features	Range	Resolution	Price

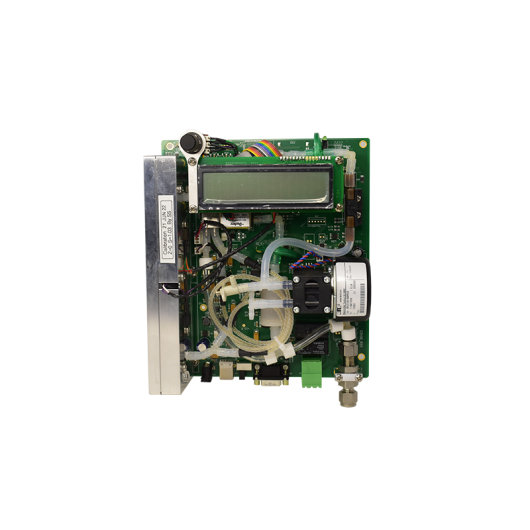

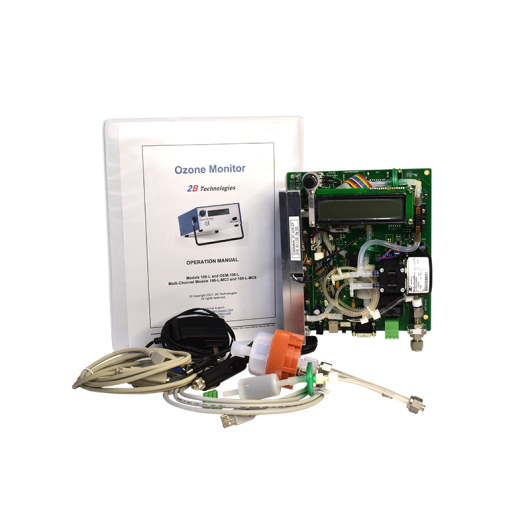

UV-106L OEM Ozone Analyzer	- OEM Configuration - Includes datalogging with software - Low power consumption; can be battery operated - Two level relay for control purposes - Long-life pump (15,000 hr)	0-100 ppm	0.0001 ppm	$5,040.00

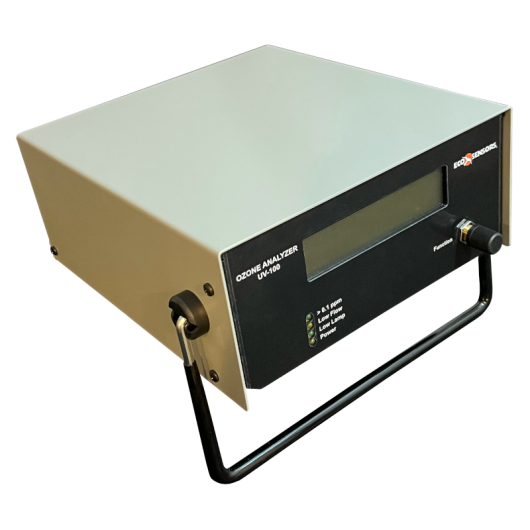

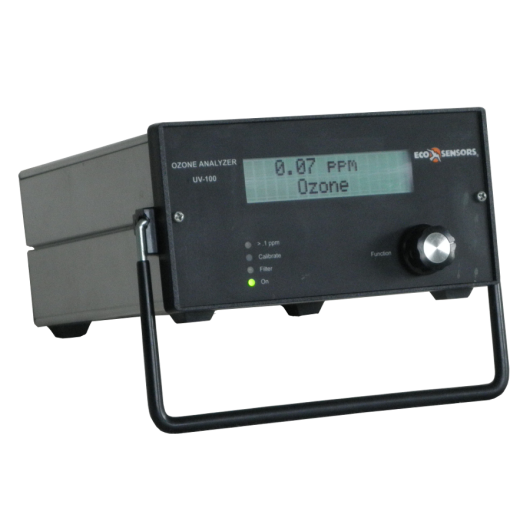

UV-100 Ozone Analyzer	- Standard enclosure - Includes datalogging with software - Low power consumption; can be battery operated - Two level relay for control purposes - Long-life pump (15,000 hr)	0-900 ppm	0.01 ppm	$5,100.00

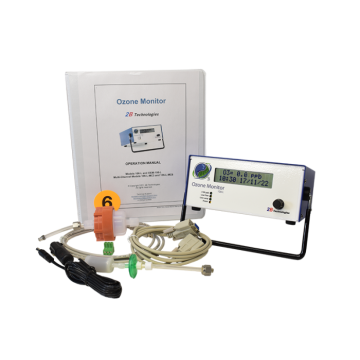

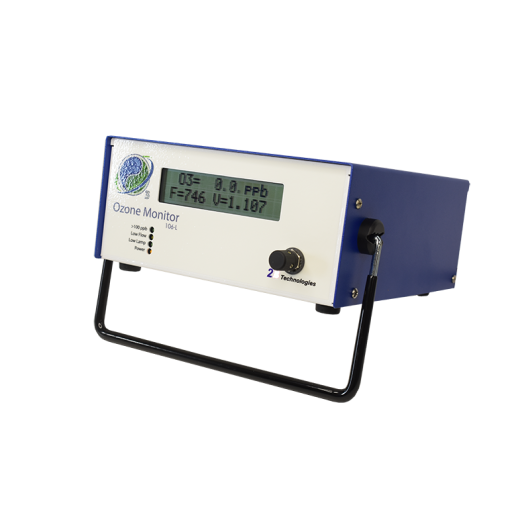

UV-106-L Ozone Analyzer	- Standard enclosure - Includes datalogging with software - Low power consumption; can be battery operated -15,000 Hr Pump Life -Two Level Relay Control	0-100 ppm	0.0001 ppm	$5,760.00

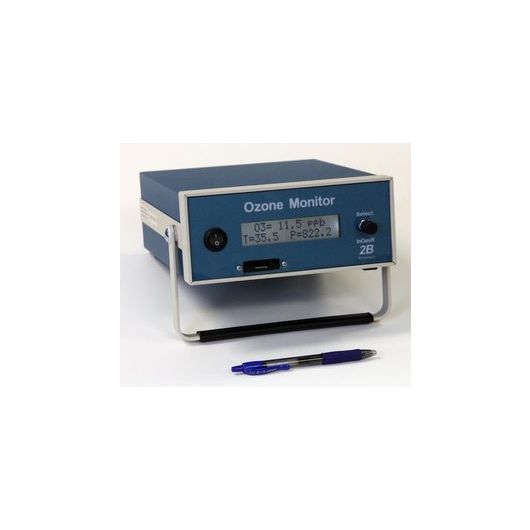

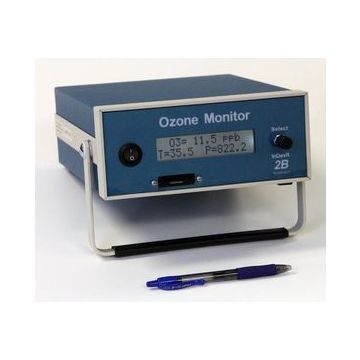

Model 202 Ozone Analyzer	-Standard enclosure -Includes datalogging with software -Measures accurate at low and high levels of ozone - Offers many options to customize	0-250 ppm	0.1 ppb	$6,550.00
480L	- NEMA 4X Industrial wall mount enclosure - Mercury-free UV LED source - Built-in diagnostics/error logs/warning alarms - Minimal zero drift - Programmable concentration alarms - Temperature and pressure compensation (standard) - Ethernet standard, WiFi (coming soon)	0-1 ppm to 0-500 ppm	0.001 ppm	$7,200.00

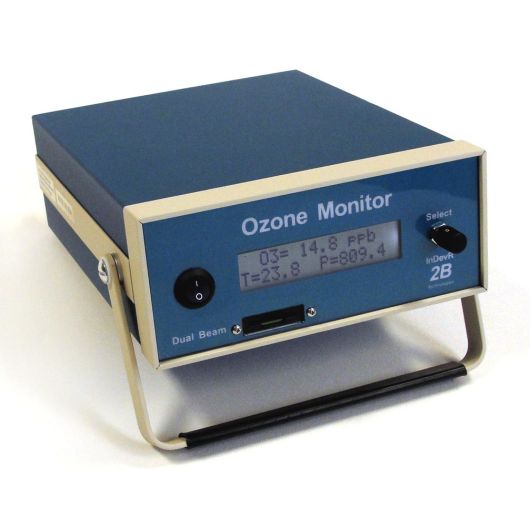

Model 205 Ozone Analyzer	- Standard Enclosure - Dual beam optical bench for faster response time - Eliminates Water Vapor Interference - Includes data logging with software	0-250 ppm	0.1 ppb	$7,700.00

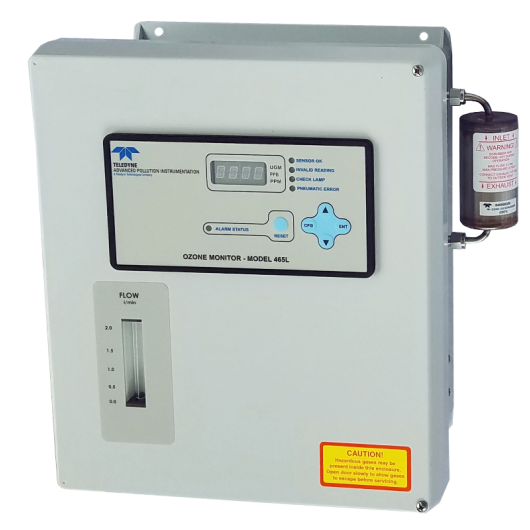

465L Ozone Analyzer	-NEMA 4X Industrial wall mount enclosure - Built-in diagnostics/error logs/warning alarms - Minimal zero drift - Programmable concentration alarms - Temperature and pressure compensation (standard) - 1, 3 and 6 stream versions available for safety monitoring	From 0-1 ppm to 0-500 ppm	0.001 ppm	$8,130.00

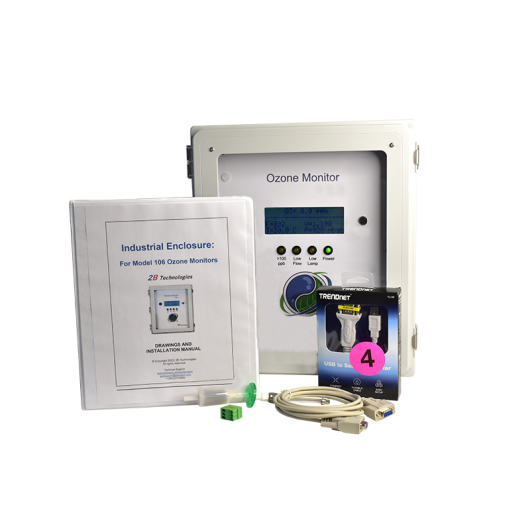

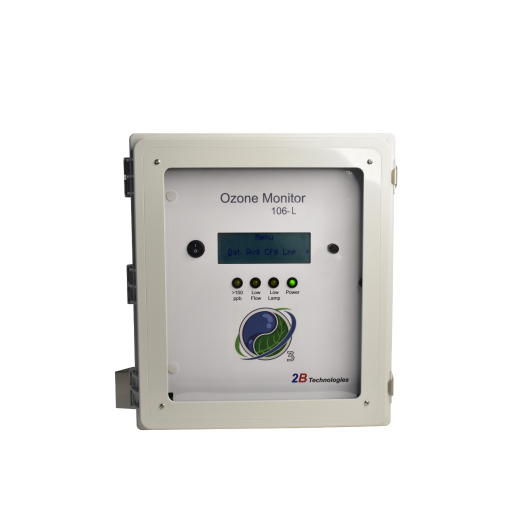

UV-106L-NEMA	- NEMA 4X Industrial wall mount enclosure - USB and RS-232 output of time/date, O3 concentration, internal temperature and pressure - Analog output (0-2.5 V and 4-20 mA) of ozone concentration in user selected units - Two Level Relay Control - Includes datalogging with software - 1, 3 and 6 stream verions available for safety monitoring	0-0.1 ppb to 0-100 ppm	0-01%	$7,680.00

UV Medium Range Ozone Analyzers

Product	Sensor Features	Range	Resolution	Price
UV-106M OEM Ozone Analyzer	- OEM Configuration - Includes datalogging with software - Low power consumption; can be battery operated - Two level relay for control purposes - Long-life pump (15,000 hr)	0-1,000 ppm	0.01 ppm	$5,040.00

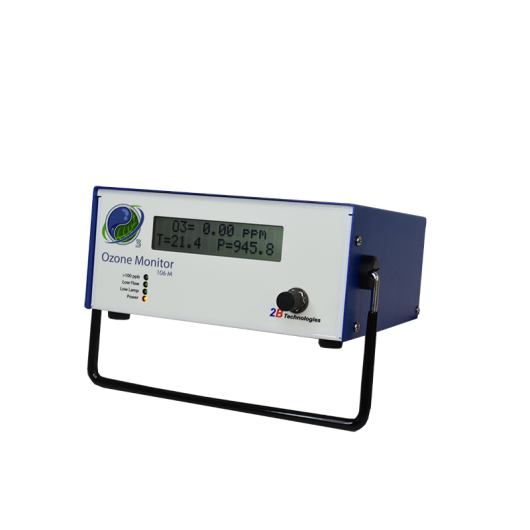

UV-106-M Ozone Analyzer	- Standard enclosure - Includes datalogging with software - Low power consumption; can be battery operated -15,000 Hr Pump Life -Two Level Relay Control	0-1,000 ppm	0.01 ppm	$5,760.00
UV-106MH-OEM	- OEM Configuration - Includes datalogging with software - Low power consumption; can be battery operated - Two level relay for control purposes - Long-life pump (15,000 hr)	0-10,000 ppm	0.1 ppm	$5,760.00

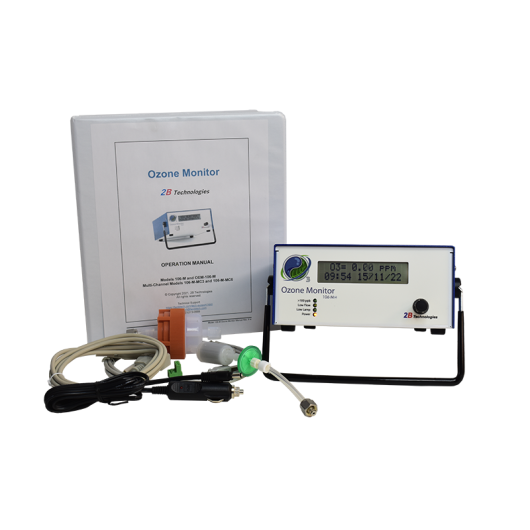

UV-106-MH Ozone Analyzer	- Standard Configuration - Includes datalogging with software - Low power consumption; can be battery operated - Two level relay for control purposes - Long-life pump (15,000 hr)	0-10,000 ppm	0.1 ppm	$6,336.00
UV-106MH-NEMA	- NEMA 4X Industrial wall mount enclosure - USB and RS-232 output of time/date, O3 concentration, internal temperature and pressure - Analog output (0-2.5 V and 4-20 mA) of ozone concentration in user selected units - Two Level Relay Control - Includes datalogging with software - 1, 3 and 6 stream verions available for safety monitoring	0-20% by weight, or 0-14% by volume	0.01%	$7,680.00

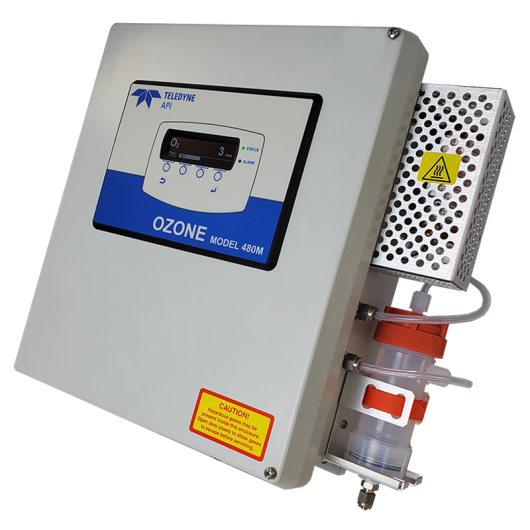

480M Ozone Analyzer	- NEMA 4X Industrial wall mount enclosure - Mercury-free UV LED source - Built-in diagnostics/error logs/warning alarms - Minimal zero drift - Programmable concentration alarms - Temperature and pressure compensation (standard) - Ethernet standard, WiFi (coming soon)	0-1,000 ppm to 0-10,000 ppm	0.001 ppm	$8,200.00

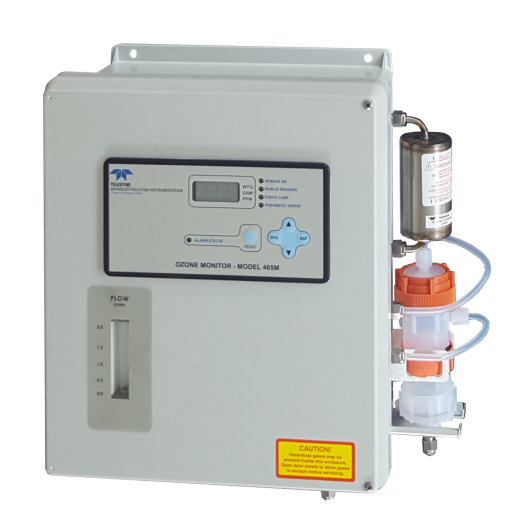

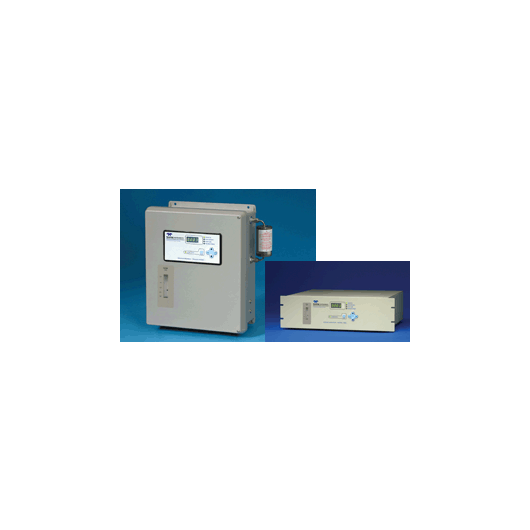

465M Ozone Analyzer	- NEMA 4X Industrial wall mount enclosure - Sample conditioning System for samoling from humid environments - Built-in diagnostics/error logs/warning alarms - Minimal zero drift - Programmable concentration alarms - Temperature and pressure compensation (standard) - 1, 3 and 6 stream versions available for safety monitoring	0-1000 ppm to 0-10,000 ppm 0-5g/Nm3 to 0-50 g/Nm3 0-1% w/w to 0-3% w/w	0.001 ppm	$9,470.00
UV-106M-NEMA	- NEMA 4X Industrial wall mount enclosure - USB and RS-232 output of time/date, O3 concentration, internal temperature and pressure - Analog output (0-2.5 V and 4-20 mA) of ozone concentration in user selected units - Two Level Relay Control - Includes datalogging with software - 1, 3 and 6 stream verions available for safety monitoring	0-1000 ppm	0.01 ppm	$7,680.00

UV High Range Ozone Analyzers

Product	Sensor Features	Range	Resolution	Price

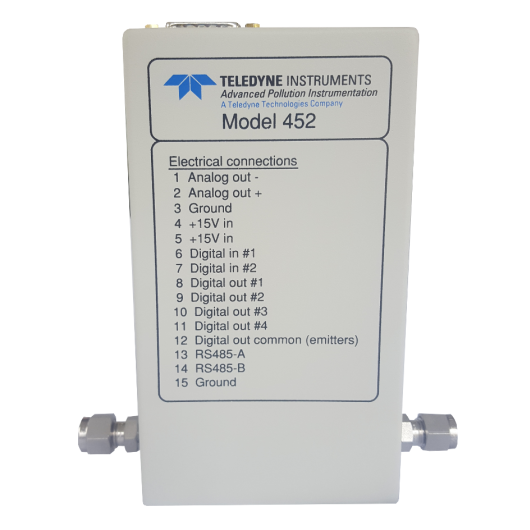

452 Ozone Analyzer	-Works in High Purity Applications -2 sec. to 95% Response Time -115 PSIA Proof Pressure	0–5, 0–10, 0–15, 0–20% w/w 0–100, 200, 300, 400 g/Nm3	0.01 %	$4,840.00
UV-106-H OEM Ozone Analyzer	-0.01% Resolution -On-Board Microprocessor -NEMA Enclosure Option	0-20% by weight, in oxygen or air, 0-14% by volume	0.01 %	$5,760.00
UV-106-H Ozone Analyzer	-0.01% Resolution -On-Board Microprocessor -NEMA Enclosure Option	0-20% by weight, in oxygen or air, 0-14% by volume	0.01 %	$6,336.00

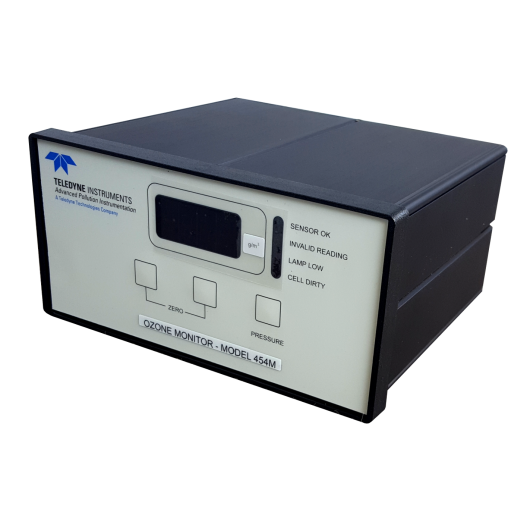

454 Ozone Analyzer	-No Need for UV Filters -Temp. & Pressure Compensation -Analog & RS485/RS232 Outputs -0.5 to 5 LPM Flow	0 - 5, 0 - 10, 0 - 15, 0 - 20% w/w, 0 - 25% w/w; 0 - 25, 0 - 100, 200, 300, 400 g/Nm3	0.01 %	$6,590.00

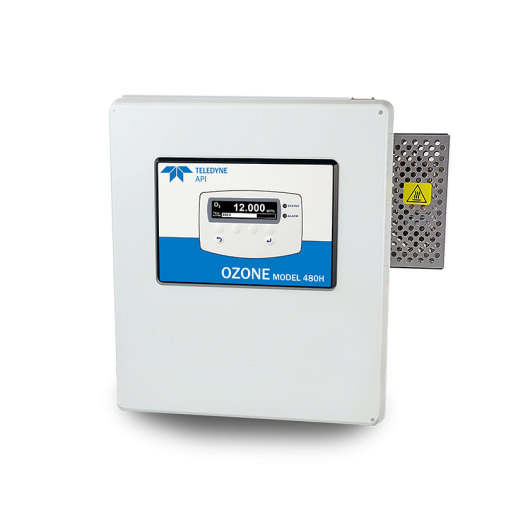

480H	- Intuitive graphical user interface - Mercury-free UV LED source - Built-in diagnostics/error logs/warning alarms - Modular internal design - Minimal zero drift - Programmable auto-zero function included - Programmable concentration alarms - Temperature and pressure compensation (standard) - Ethernet standard, WiFi (coming soon)	0-100 g/Nm3 to 0-400 g/Nm3	0.01 %	$7,200.00
UV-106H-NEMA	- Low power consumption; can be battery operated - Internal data logger with real time clock - On-board microprocessor with interactive menus includes data averaging options of 10 s, 1 m, 5 m and 1 hr - USB and RS-232 output of time/date, O3 concentration, internal temperature and pressure - Analog output (0-2.5 V and 4-20 mA) of ozone concentration in user selected units - Two level relay for control purposes (e.g., control of ozone source or turn warning light on and off)	0-20% by weight, or 0-14% by volume	0.01 %	$7,680.00

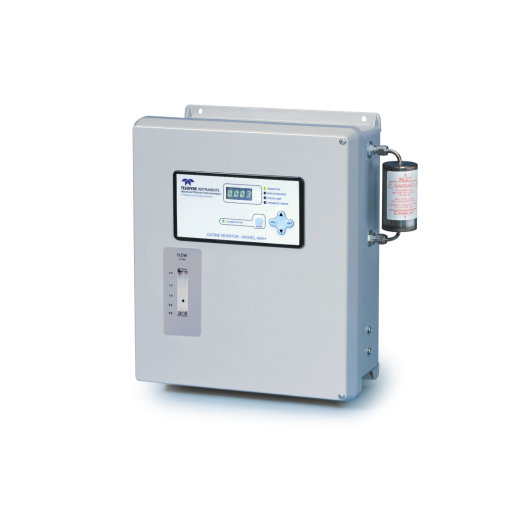

465H Ozone Analyzer	-Self Check Warning Alarms -Quick Response Times -UV Absorption Methods -Minimal Zero Drift	0-5% w/w to 0-25% w/w 0-100g/Nm3 to 0-400g/Nm3	0.01 %	$8,130.00

Calibration Source

Product Sensor Features Range Resolution Price

Product	Sensor Features	Range	Resolution	Price

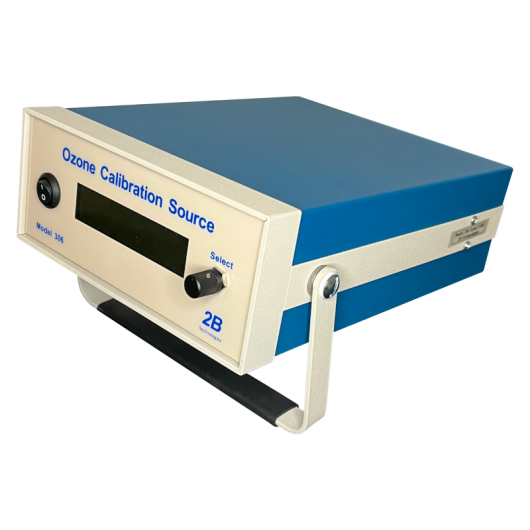

Model 306 Ozone Calibration Source	-Calibrate Any Ozone Monitor -Autocalibration Scheduler -Easy-To-Use Menu	30-1000 ppbv	2 ppbv	$6,500.00

Model 306 Ozone Calibration Source

-Calibrate Any Ozone Monitor

-Autocalibration Scheduler

-Easy-To-Use Menu

30-1000 ppbv

2 ppbv

$6,500.00

Measure Ozone in Water

Product Sensor Features Range Resolution Price

Product	Sensor Features	Range	Resolution	Price

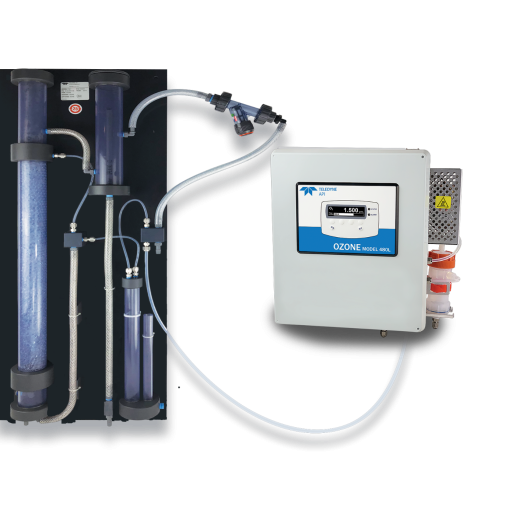

W1+480L Ozone Analyzer	-Dual field programmable alarms -Quick Response Times -UV Absorption Methods -Minimal Zero Drift -Reliable, repeatable and accurate	0-1, 0-2 mg/L	0.001 ppm	$8,500.00

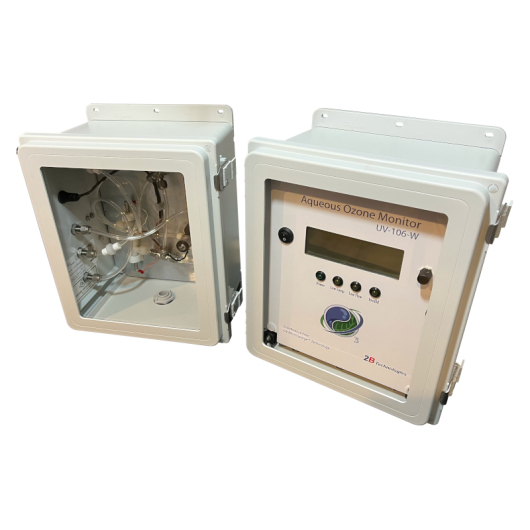

UV-106-W Aqueous Ozone Monitor	- Interference free measurement of dissolved ozone in ultrapure or "dirty" water - NEMA water-proof housing - Records measurement every 10 seconds - Internal data logger logs 16,383 lines of data - Precision and accuracy of 0.05 ppm or 1% of reading - Both serial and user-scalable analog outputs (0-2.5V and 4-20mA) - Selectable data averaging times of 10 seconds, 1 minute, 5 minutes, and 1 hour	0-100 ppm	0.1 ppm	$19,200.00
