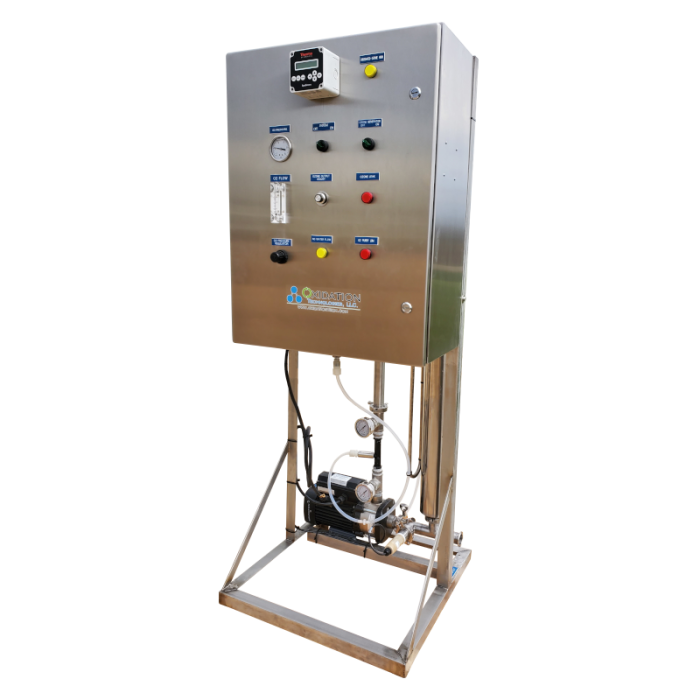

The OXS Ozone Water Systems are revolutionizing water treatment and sanitation for industries that demand high performance and reliability. Capable of producing up to 100 g/hr of ozone and introducing it into water at flow rates up to 100 GPM, these systems meet the needs of both point-of-use (POU) applications and large-scale operations.
Whether your goal is achieving high dissolved ozone levels for surface sanitation or lower levels for bulk water treatment, the OXS systems ensure efficient, safe, and effective performance. Let’s dive into the features, applications, and optional accessories that make these systems an industry leader.
Key Features
Designed for durability and efficiency, OXS Ozone Water Systems boast advanced features to meet the toughest demands:
- One-Touch Operation: User-friendly ON/OFF functionality for easy control.
- Integrated Ambient Ozone Safety Sensor: Maintains a safe work environment by monitoring ozone levels.
- High-Quality Materials: CPVC piping for superior ozone resistance and a stainless steel ozone-compatible pump.
- High-Concentration Ozone Production: Generated from oxygen for maximum effectiveness.
- Exceptional Mass Transfer: Achieves great mixing of ozone into water, ensuring optimal performance.
- Compact Design: Saves space without compromising functionality.
Common Applications
OXS systems are versatile, serving a wide range of industries and applications:
- Food Processing: Ensures sanitized equipment and safe food handling.
- Bottled Water: Produces pure, high-quality bottled water with precise ozone treatment.
- Surface Sanitation: Effectively sanitizes surfaces in food and beverage facilities.
- Aquaculture: Maintains clean, oxygen-rich water for healthy aquatic environments.
- Well Water Treatment: Enhances water quality by eliminating contaminants.
- Dairy Applications: Improves hygiene and sanitation in dairy processing.
How It Works
OXS Ozone Water Systems utilize corona discharge technology to generate high-concentration ozone from oxygen. This ozone is drawn into water via a Mazzei venturi, which mixes it efficiently. A stainless steel Grundfos pump creates the necessary pressure differential across the venturi for optimal operation.
The mixed water flows into an ozone contact tank, where further blending occurs through a mixing diffuser. Excess ozone is safely off-gassed, ensuring only the desired ozone levels remain in the treated water. This design ensures efficient mass transfer, resulting in superior water treatment and sanitation.
Optional Accessories
To customize the system for specific needs, a range of accessories is available:
- Dissolved Ozone Monitor: Measures real-time ozone levels in water, enabling precise control and safety alerts.
- ORP Monitor: Tracks oxidation-reduction potential, ensuring effective water treatment.
- Ozone Catalyst Unit: Converts off-gassed ozone safely back to oxygen, protecting the environment.
- Remote Ambient Ozone Sensor: Monitors ozone levels at the point of use to ensure safe working conditions.
- Water Pressure Switch: Automates system operation based on water usage.
- Internal Compressor Options: Provides clean, dry compressed air for systems without an external air source.
Specification Overview
Here’s a quick glance at the specifications for various OXS models:
| Model | O3 Output | Max Water Flow | Ozone Dosage at Max Flow | Cooling Type |
|---|---|---|---|---|
| OXS-10 | 10 g/hr | 30 GPM | 1.47 ppm | Air-Cooled |
| OXS-40 | 40 g/hr | 50 GPM | 3.53 ppm | Air-Cooled |
| OXS-100 | 100 g/hr | 100 GPM | 4.41 ppm | Water-Cooled |
For more detailed specifications, consult the full table or contact our ozone experts for personalized assistance.
Why Choose OXS Ozone Water Systems?
OXS Ozone Water Systems deliver unmatched performance for industries that require precise and efficient water treatment solutions. With customizable options, advanced safety features, and exceptional durability, these systems are designed to handle any challenge.
For expert advice and application guidance, contact our ozone specialists today. We’re here to help you find the perfect solution for your needs!
You can find this product here: https://www.oxidationtech.com/oxs.html
