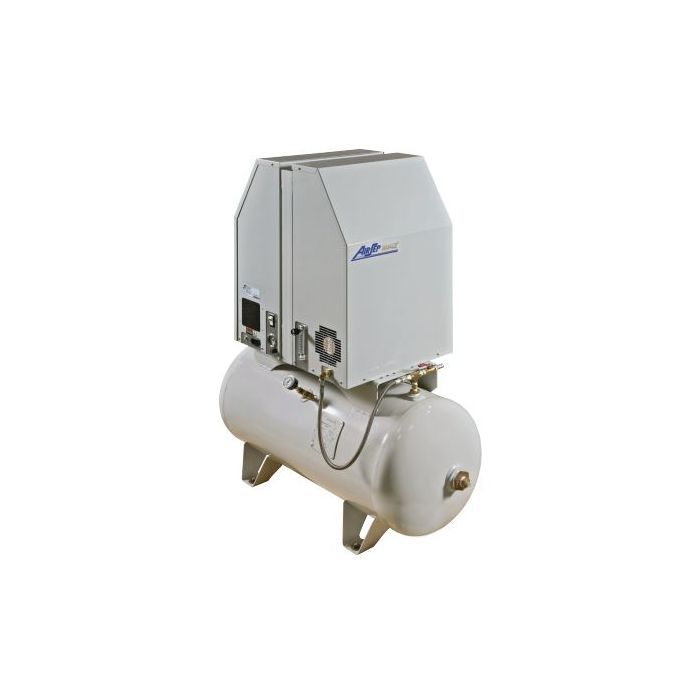

Dual Topaz Plus
38 SCFH oxygen production at 20 PSI is produced by the Dual Topaz Plus oxygen concentrator module.
Place your order today and we will ship it as soon as possible.
- SKU
- Dual Topaz Plus
Description / Dual Topaz Plus
Specifically designed for reliability, energy efficiency, and ease-of-use, there are thousands of Topaz PSA Oxygen Generators currently in use throughout the world. Generating up to 18 LPM (38 SCFH) in a compact package, at up to 95.5% oxygen concentration, the Dual Topaz Plus is a great fit for a wide range of commercial applications.
Features:
-Self-Contained
-Heavy Duty Metal Enclosure
-Advanced Engineering
-Ozone Resistant/High Temperature Process Tubing
-Quick Release Fittings for Easy Maintenance
-Tank Mounting
Product Characteristics:
|
Performance Data: Product Flow Oxygen Delivery Pressure |
38 SCFH 20 PSI (138 kPa) |
| Product Concentration | 93% |
| Product Dew Point | -100°F (-73°C) |
|
Dimensions (WxDxH) |
40 x 19 x 47 inches (102 x 48 x 119 cm) |
|
Weight |
265 lbs (120 kg) |
|
Physical Connections Product Gas Outlet |
1/4" NPT-M/B-M size oxygen adapter |
| Ambient Operating Conditions |
Locate the oxygen concentrator system in a well-ventilated area that is protected from weather elements. Temps should remain between 40°F (4°C) and 112°F (44°C) |
| Control Power Requirements (Single Phase) |
120 V ~ ± 10%, 60 Hz, 10.0 A 220 V ~ ± 10%, 50 Hz, 5 A |
Typical Applications:
Manufacturing
-Brazing/Sodering/Cutting
-Thermal/Chemical Oxidation
-Glass Work/Blowing
Environmental
-Ozone (Generator) Feed Gas
-Waste/Water Treatment
-Environmental Remediation
Additional
-Fish Farming
What is Pressure Swing Adsorption (PSA):
Clean, dry compressed air is fed into the first molecular sieve bed. Nitrogen is adsorbed, while oxygen is allowed to flow through. When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed. As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere. Compressed air is once again fed into the first bed, and the process is repeated continuously. A constant flow of oxygen is reliably produced.
More information on How Oxygen concentrators Work available HERE
Downloads:
More Information
| Manufacturer | Air Sep |
|---|---|
| Listing Description | 38 SCFH @ 20 PSI |
| Internal Compressor | Yes |
| O2 Delivery PSI | 20 PSI |
| Nominal Gas Flow Rate | 38 SCFH |
| Operating Pressure | 20 PSI |
| Gas Connections | 1/4" NPT-M/B-M Size Oxygen Adapter |
| Dimensions (LxWxH) | 40 x 19 x 47 inches |
| Operational RH Range | NA |
| Operational Temperature Range | NA |
| Power Requirements | 120V ~ ±10%, 60 Hz, 10.0 A or 220V ~ ±10%, 50 Hz, 5 A |
| Lead Time | In Stock |
| Warranty | 1 Year |
| Country of Origin | USA |
| Oxygen Production | 25 - 100 SCFH |
| Description | Built-in compressor, designed for higher pressure oxygen applications |
