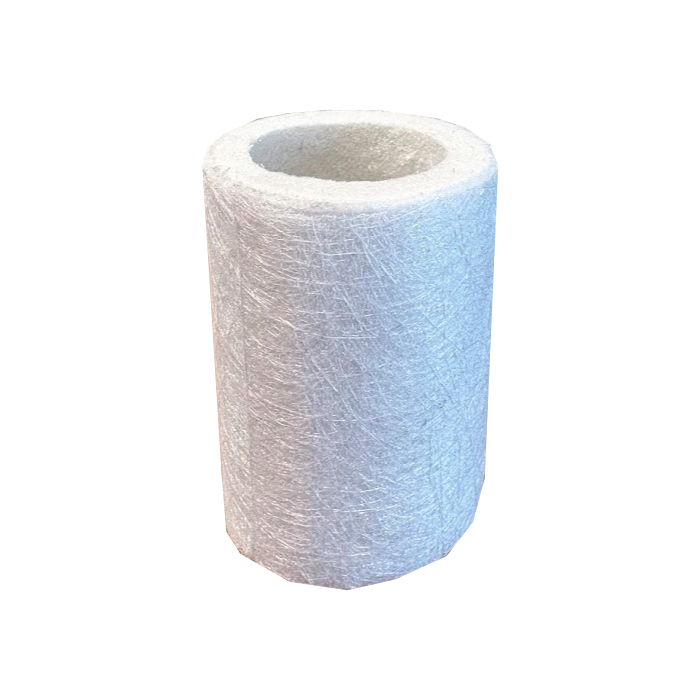

Filt-M03-R-1m: Replacement 1 micron filter for the Filt-M03-1m

Description:

The M03-1m Mini Coalescing Filter is designed to remove liquid aerosols, oil mist, and sub-micron particulate contamination from compressed air systems. It delivers oil-free air for critical applications such as air gauging, pneumatic instrumentation, and control systems.

Liquids gravitate to the bottom of the element and are prevented from re-entering the airstream, ensuring reliable and consistent filtration performance.

Features:

• 1 Micron Filter
• Removes liquid aerosols and sub-micron particles
• Prevents re-entrainment of collected liquids
• Oil-free air for critical applications
• Available with 1/8" and 1/4" NPT ports
• Manual or piston drain options
• Polycarbonate or metal bowl options
• Multiple filtration element options (Type B, C, D)
• Compact “Mini” body design

Specifications:

Flow Capacity

• 1/8" Port: 17.0 SCFM (8 dm³/s)

• 1/4" Port: 20.0 SCFM (9 dm³/s)

*Based on 90 PSIG inlet pressure with 5 PSID pressure drop.

Maximum Supply Pressure

• Polycarbonate Bowl: 0–150 PSIG (0–10.3 bar)

• Metal Bowl: 0–250 PSIG (0–17.2 bar)

• Piston Drain: 10–250 PSIG (0.7–17.2 bar)

Operating Temperature

• Polycarbonate Bowl: 32°F to 125°F (0°C to 52°C)

• Metal Bowl: 32°F to 175°F (0°C to 80°C)

• Piston Drain: 32°F to 125°F (6°C to 52°C)

Port Sizes

• NPT: 1/8", 1/4"

Filtration Ratings

• Type B: 1.0 micron

• Type C: 0.01 micron

• Type D: 0.003 micron (activated carbon, oil vapor removal)

Dimensions:

• Overall Width: 1.69 in (43 mm)

• Body Width: 1.53 in (39 mm)

• Mounting Offset: 0.39 in (10 mm)

• Height (Top to Bottom of Body): 3.82 in (97 mm)

• Total Installed Height: 4.21 in (107 mm)

• Minimum Clearance for Bowl Removal: 1.60 in (41 mm)
