Filter-W-24

Pentair Big Blue and Big Black Heavy Duty Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including highflow and heavy-sediment applications.

2 weeks
SKU
Filter-W-24
Color
Blue

Customizable Options:

  $180.00

Description / Filter-W-24

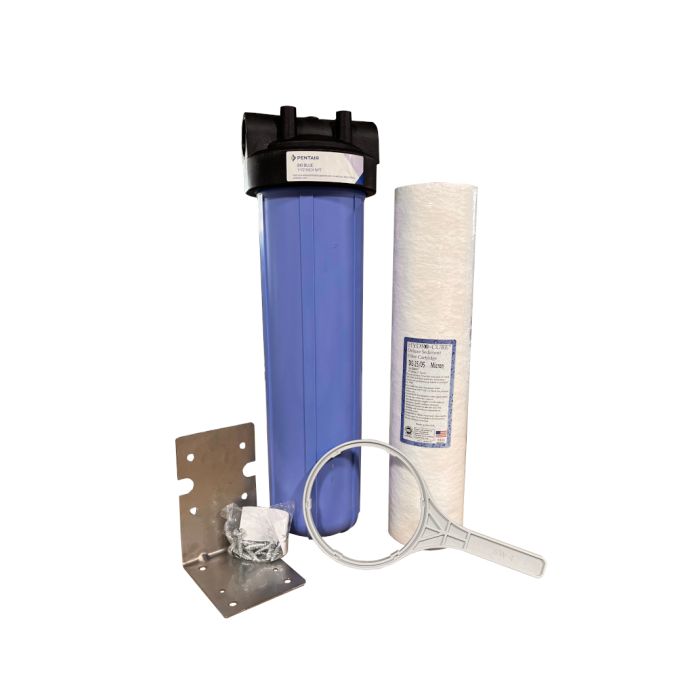

Pentair Big Blue and Big Black Heavy Duty Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including highflow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. The 1-1/2" internal port allows a greater volume of liquid to pass through the HFPP cap more rapidly. Big Blue and Big Black Housings are compatible with a broad range of chemicals and are available with or without a pressure relief button. They accept a wide variety of 4-1/2" diameter cartridges.

Product Details:

- Available in 20" lengths

- Available with a pressure relief button on inlet side of cap

- Available with 1-1/2" NPT inlet and outlet ports

- Accepts up to 4-1/2" diameter cartridges

- Pentek Big Blue L Brakets SS w/Plated Screw

- Pentek Big Blue Wrench SW-4 for Housings (20")

Specifications:

- Temperature (min): 40 °F

- Temperature (max): 100 °F

- Pressure (min): 40 psi

  • Pressure (max): 90 psi



Replacement Part:

Filter W 24 Carbon

Filter-W-24-R-25



Video:

Downloadable Information:

Big Blue Specifications Sheet





More Information

Product Category Filters
Manufacturer Oxidation Technologies
Warranty 1 Year
