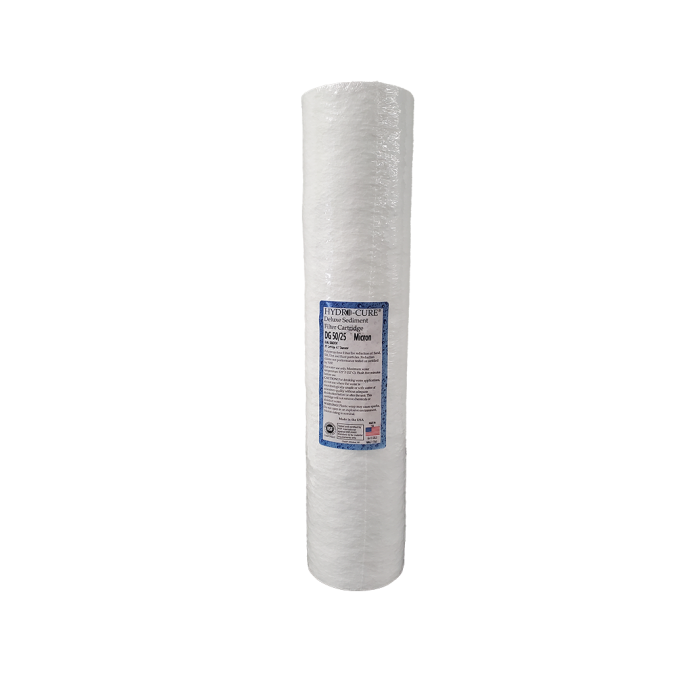

Filter-W-24-R-25

Hydro-Cure cartridges are designed to provide high flow rates with minimum pressure drop. These cartridges are used in a wide variety of applications where economical filters are required. Hydro-Cure Cartridges are manufactured on state-of-the-art production equipment using a computer controlled process to ensure reliability and performance. Due to the innovative design that creates two distinct filter zones, larger particles are trapped on or near the surface of the filter, and the smaller particles are trapped throughout the inner layers of the cartridge. This design allows for optimum dirt holding capacity and minimal change-outs.
Exceptional strength and self-supporting core
Superior sediment filtration
Made of polypropylene resin meeting FDA regulation 21CFR177.1520
No binders, lubricants or anti-static agents used in manufacturing process
Provides exceptional chemical compatibility to handle a wide range of process fluids
Fits most standard Big Blue® and Big Clear filter housings
Temperature range: 40° to 125° F
Material: 100% pure polypropylene fibers
Tested and certified under NSF/ANSI Standard 42
Nominal Micron Rating: 50/25 micron
Dimensions:
Standard Filter length: 20" (50.8 cm)
Filter I.D.: 1 1/16" (2.7 cm)
Filter O.D.: 4 1/2" (11.43 cm)
- SKU
- Filter-W-24-R-25
Description / Filter-W-24-R-25
Hydro-Cure cartridges are designed to provide high flow rates with minimum pressure drop. These cartridges are used in a wide variety of applications where economical filters are required. Hydro-Cure Cartridges are manufactured on state-of-the-art production equipment using a computer controlled process to ensure reliability and performance. Due to the innovative design that creates two distinct filter zones, larger particles are trapped on or near the surface of the filter, and the smaller particles are trapped throughout the inner layers of the cartridge. This design allows for optimum dirt holding capacity and minimal change-outs.
Exceptional strength and self-supporting core
Superior sediment filtration
Made of polypropylene resin meeting FDA regulation 21CFR177.1520
No binders, lubricants or anti-static agents used in manufacturing process
Provides exceptional chemical compatibility to handle a wide range of process fluids
Fits most standard Big Blue® and Big Clear filter housings
Temperature range: 40° to 125° F
Material: 100% pure polypropylene fibers
Tested and certified under NSF/ANSI Standard 42
Nominal Micron Rating: 50/25 micron
Dimensions:
Standard Filter length: 20" (50.8 cm)
Filter I.D.: 1 1/16" (2.7 cm)
Filter O.D.: 4 1/2" (11.43 cm)
More Information
Manufacturer | Oxidation Technologies |
---|---|
Warranty | 1 Year |
