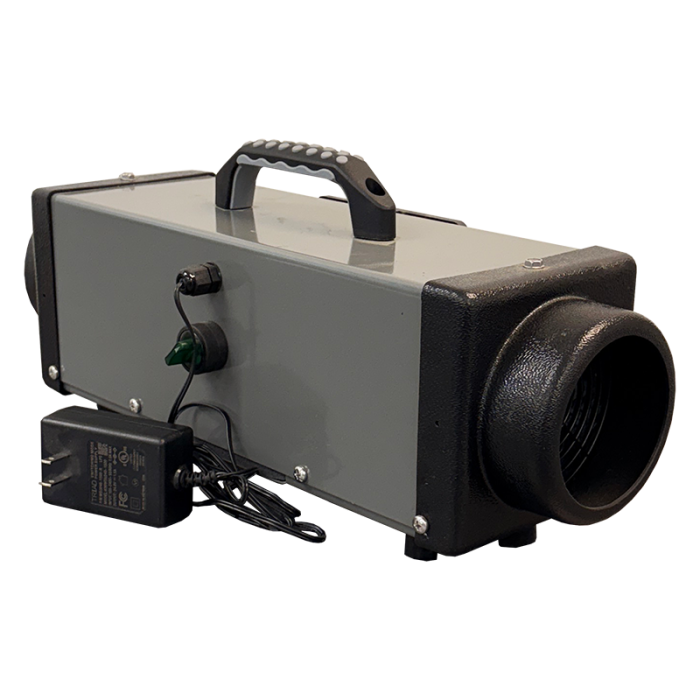

CDA-75 Ozone Scrubber

True Catalytic Ozone Scrubber will safely catalyze ozone to oxygen reliably with no consumables. Built-in fans flow 250 CFM of air through this device and destroy 90% of the ozone that passes through the catalyst material.

Applications:

     -Ozone pack-out rooms

     -Disinfection rooms

     -Ozone chambers

     -Any process where high ambient ozone levels need to be removed safely from the air quickly

Features:

     -75 CFM airflow rate from internal fans

     -Catalytic material is used for long-life

    ->90% ozone destruction efficiency at high ozone levels

     -The catalyst material is replaceable

     -Magnetic levitation fans are used for longevity

     -No steel ball bearings or other oxidizable metal parts are used

     -Destruct catalyst is at the inlet, electrical components and fans are exposed to lower levels of azone only.

     -Fans operate on 24 VDC for safety

     -External UL listed 24 VDC power supply provided to power from 120 or 220 VAC power.

     -Handles provided for easy transport or carrying

     -Plastic feet mounted to the bottom provide firm footing on the floor or bench.

Air flows into the large screened ends on the CDA-75 and exits the fan holes on the sides of the CDA-75.  Catalyst material is placed at the air entry point of the CDA-75, with the fans at the outlet.  This ensures ozone levels in the air are low when passing over the fans and electrical connections inside the CDA-75.  Magnetic levitation fans are used for air-flow this ensures a long fan life and eliminates any steel ball bearings from the fans that could fail due to oxidation over time.

The CDA-75 uses 24 VDC fans for safety.  An external 120/220 VAC to 24 VDC power supply that is UL listed is provided with the CDA-75 to power from either a 120 or 220 VAC power source.

Downloads:

CDA Series Specification Sheet

CDA-75 Manual
