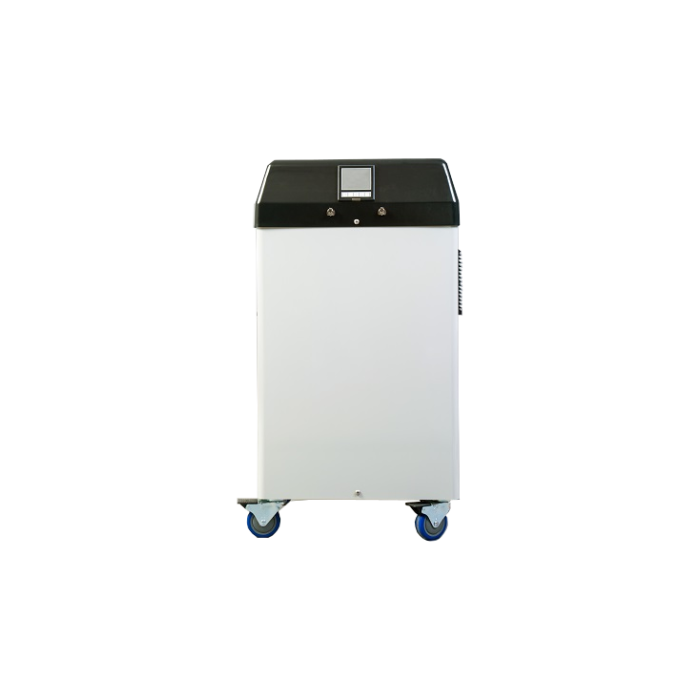

Pro-30

4.22 - 63.3 SCFH (2-30 LPM) oxygen production @ 50 PSI

SKU
Pro-30
  $22,500.00

Related Products

Description / Pro-30

Conceived to provide high quality oxygen generation by integrating proven design concepts with the insight gained from over 30 years of producing superior oxygen concentrators, the Pro Series of Oxygen Concentrators aims to exceed the needs and demands of the Non-Medical realm of oxygen usage. A reimagined, compact, and highly mobile machine, this family demonstrates that it can stand and deliver a high-quality concentration of Oxygen in an affordable yet sleek layout.



Features:

      -4 recessed caster-style wheels, handle at the top of cabinet for easy movement between locations.

      -Lighweight/Tough Thermoplastic

      -Designed for Easy, Low-Maintenance Service

      -Safety Alarm



Product Characteristics:

Performance Data:

Product Flow

Oxygen Delivery Pressure

4.22 - 63.3 SCFH (2-30 LPM)

50.0 PSI

Product Concentration Up to 95%

Dimensions (WxDxH)

 21 x 24 x 45 inches (53.4 x 61 x 114.3 cm)

Weight

250(lbs.)/113 (kg)

Physical Connections

Product Gas Outlet





Ambient Operating Conditions

Locate the oxygen concentrator system in a well-ventilated area that is protected from weather elements.

Temps should remain between 41°F (5°C) and 104°F (40°C)

(Outside of these temperatures still allows for purified Oxygen production, but will lower the shelf life and quality of production.)

Control Power Requirements (Single Phase)





Typical Applications:

Manufacturing

      -Glass Work/Blowing

      -Brazing/Sodering/Jewelry

      -Thermal/Chemical Oxidation

Environmental

      -Ozone (Generator) Feed Gas

      -Waste/Water Treatment

      -Environmental Remediation

Additional

      -Fish Farming

      -Aquaponics

      -Hydroponics



What is Pressure Swing Adsorption (PSA):

Clean, dry compressed air is fed into the first molecular sieve bed.  Nitrogen is adsorbed, while oxygen is allowed to flow through.  When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed.  As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere.  Compressed air is once again fed into the first bed, and the process is repeated continuously.  A constant flow of oxygen is reliably produced.

More information on How Oxygen concentrators Work available HERE



Downloads:

Pro-Series Brochure

Pro-30 Series Manual

More Information

Manufacturer Misc
Listing Description

4.22 - 63.3 SCFH @ 50 PSI

Nominal Gas Flow Rate 2.0-30.0 LPM
Operating Pressure 50 PSI
Max Pressure 50 PSI
Operational RH Range NA
Operational Temperature Range NA
Power Requirements 2100W @ 500H or 2000W @ 60H
Lead Time 3-4 weeks
Warranty 1 Year
Country of Origin USA
Description Turnkey unit with built-in compressor
